4 Installation | 4.10 Assembling Reflector Modules

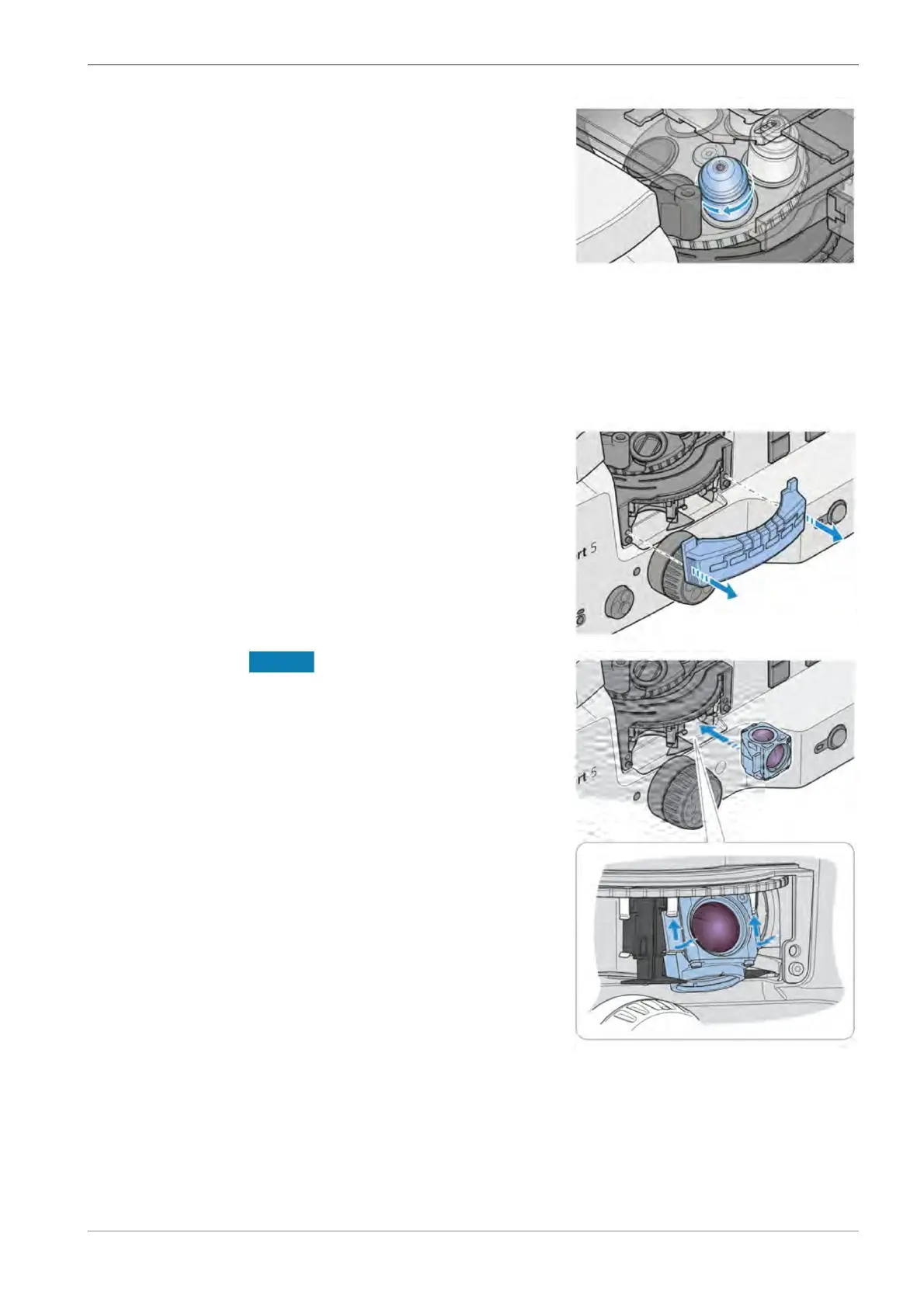

. Carefully screw the objective into the opening.
Make sure it engages properly in the nose-
piece's thread.
Proceed in the reverse order for removal.
.10 Assembling Reflector Modules
To ease the use and the recovery of reflector modules, the modules should be installed to defined
positions. The turret positions' numeric markings can be used to identify the modules.
Procedure 1. Remove the protective cover.
NOTICE Avoid touching optical surfaces.
Carefully grab the module to be installed so
that the excitation filter points away from the
turret center and the screws point downwards.
. Tilt the module away from the turret.
. Press the upper edges of the module's retaining elements to the turret position's upper
spring clips.
. Push the modules lower edge towards the turret's center, so the retaining elements snap in
to the lower spring clips.
Instruction Manual ZEISS Axiovert 5 digital | en-US | Rev. 1 | 431030-7021-101
