5 Operation | 5.4 Adjusting the Adjustable Focus Stop
5
.4 Adjusting the Adjustable Focus Stop
Prerequisite ü The microscope is operational.
ü A sample is positioned on the stage.

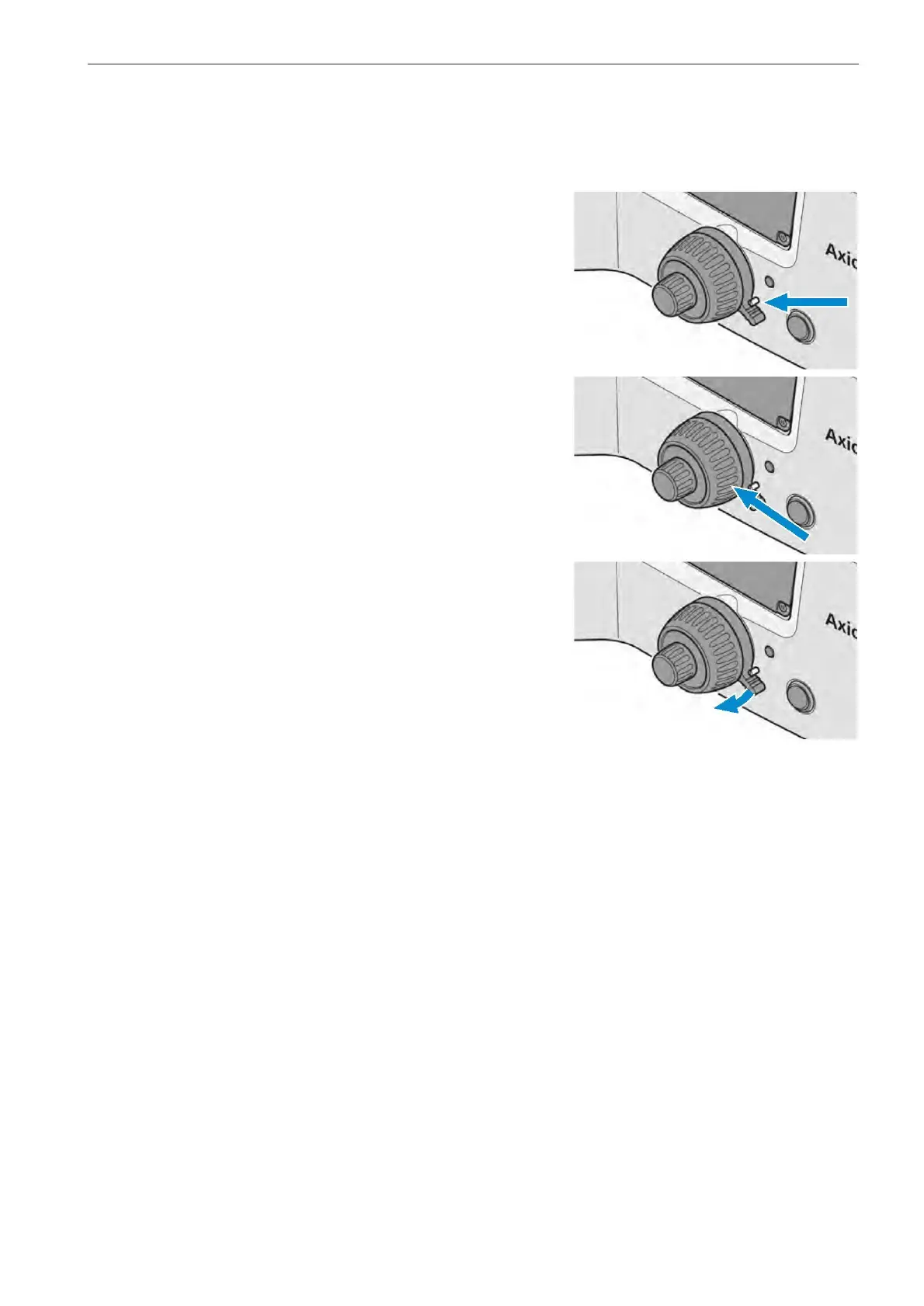

Procedure 1. Rotate the clamping lever of the stop upwards
to the stop pin.
2
. Carefully, move the nosepiece to the required
upper position. Use the focusing drive.
3
. Press the clamping lever downwards to lock
the stop position.
