Installation | 4.9 Assembling Objectives
ZEISS
4
.9 Assembling Objectives
NOTICE
Dust-sensitive components
If unused nosepiece openings remain uncovered, particles may enter the microscope and may
damage its optics and mechanics permanently.
4
Always close unused nosepiece openings with cover caps!

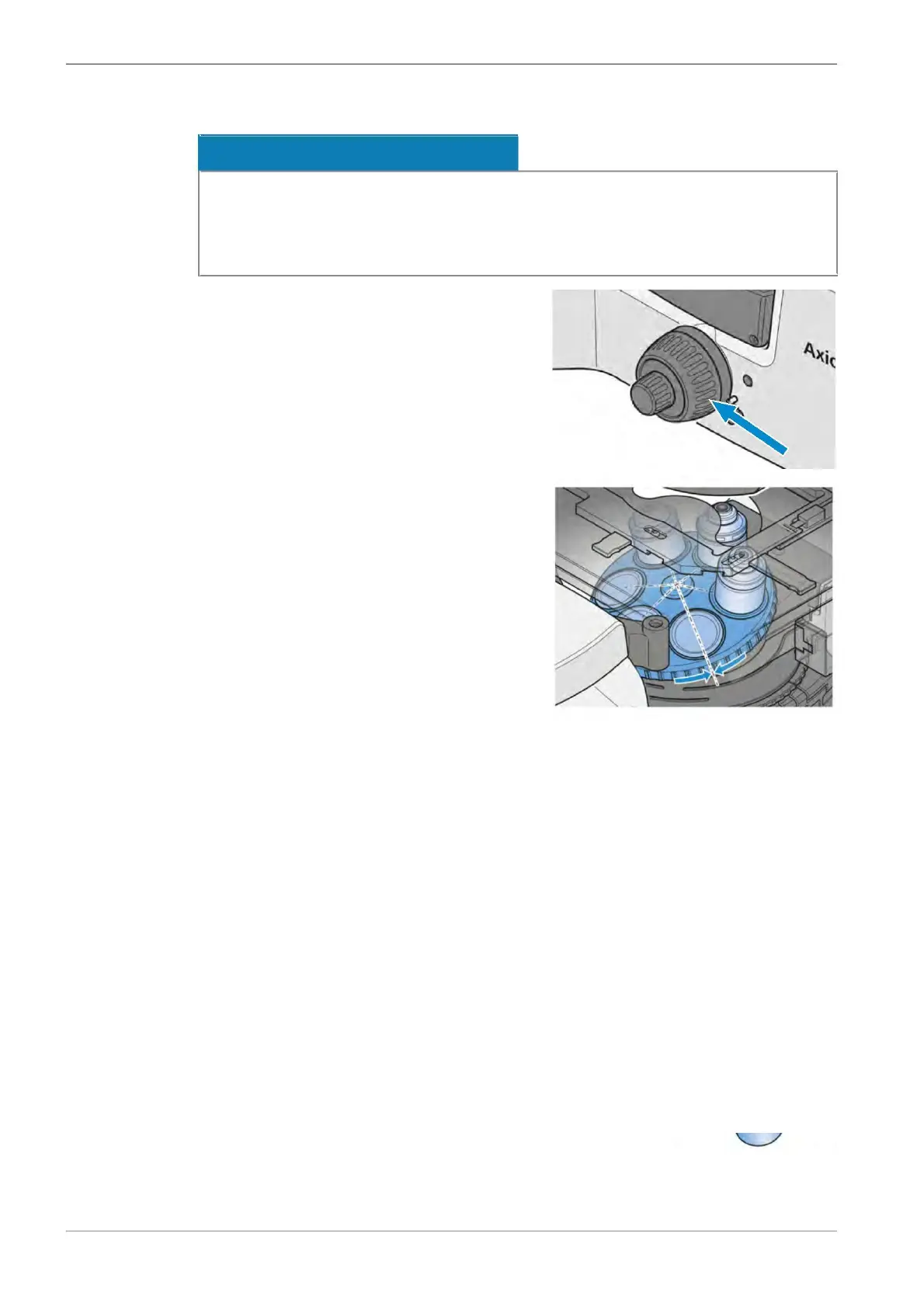

Procedure 1. Fully lower the nosepiece by turning the coarse
adjustment knob clockwise.
2
. Turn the nosepiece until the relevant objective
position is on the right side.
3
. Remove the cover cap or screw out the present
objective from the nosepiece's relevant open-
ing.
4
5
. Take the objective out of its case.
. Position the objective in the opening of the
nosepiece.
3
0
