Stereo microscope DESCRIPTION
Stemi 508 Interfaces on the stereo microscope Stemi 508 doc (with photo output) ZEISS
01/2015 435064-7044-001 13
2.3 Interfaces on the stereo microscope
Stemi 508 doc (with photo output)
1
Optional mount for eyepiece plates
∅ 26 mm
2
Eyepiece tube
∅
30 mm to replace the
eyepieces
3
Exchangeable camera adapter 0.5x with
interface 60N and C-mount connector for
cameras up to 2/3"
4
Internal thread M50x0.75 to accommodate
the front optics
5
Internal thread M49x0.75 to accommodate
optical filters and analyzer for pol.
6
Mount
∅
53 mm holding ring A53 for
adaptation of ring illuminators with mount
∅ 66 mm
7
Mount
∅
76 mm for microscope body
8
Mount
∅
84 mm for tables, insert plates
9
Guide for mounting secondary illumination
10
M8 thread to mount holding frame (only
stand K)
Thanks to the interface ∅ 76 mm, the Stemi 508 can also be used in conjunction with other stands of the
modular kit of the Stereo system – and other ZEISS stereo microscopes such as e.g. the Stemi 305, may
also be inserted in the stand K LED.
Front optics for Stemi 508
− External thread M50x0.75 for fastening in the
zoom body Stemi 508
− Internal thread M49x0.75 to accommodate
optical filters and analyzer for pol.
− Before screw-fastening the front optics 5 in the
microscope body Stemi 508
remove the dust protection glass.

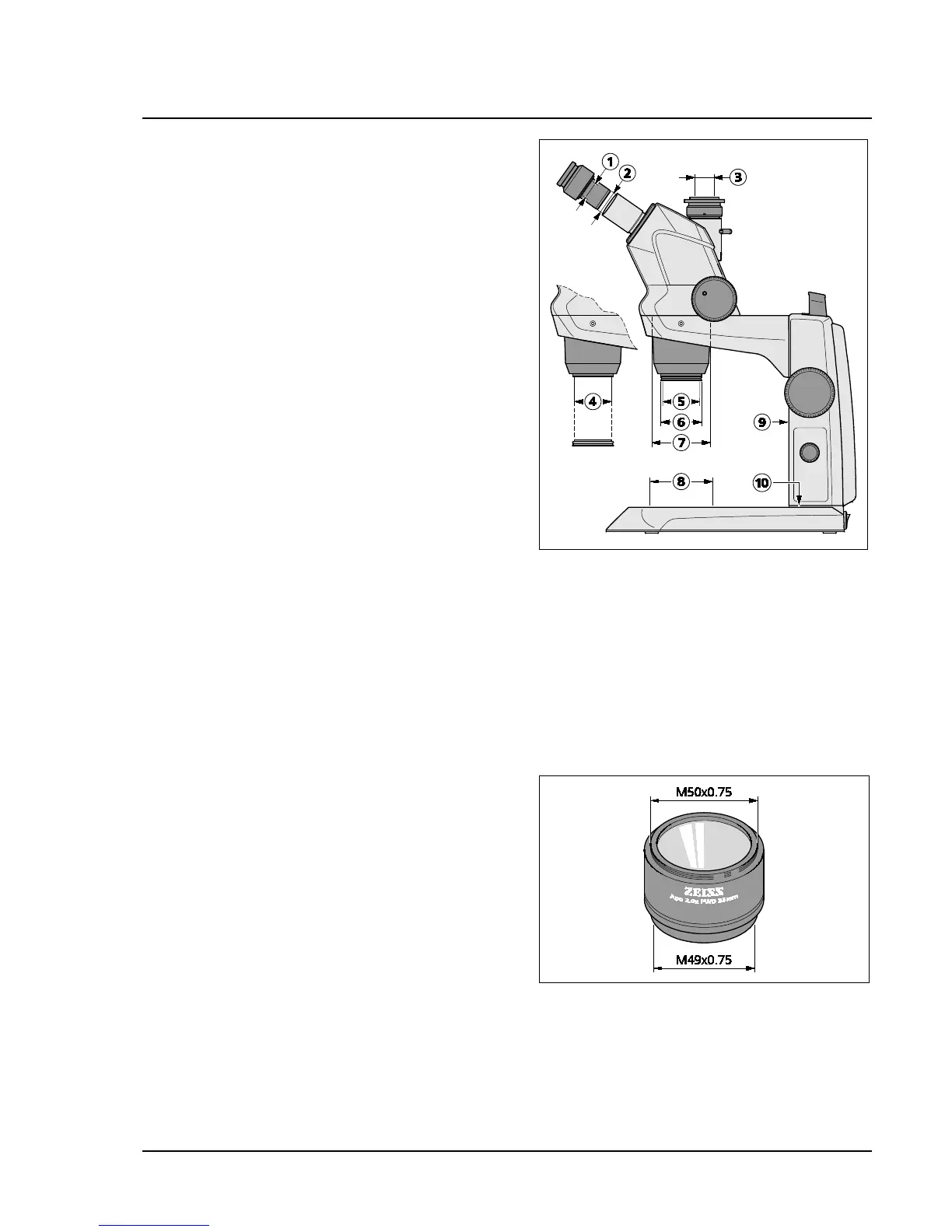

Fig. 4 Interfaces on the Stemi 508
with stand K (schematic diagram)
Fig. 5 Front optics, Stemi 508 (example)
