Stereo microscope INSTALLATION
Stemi 508 Mounting optional components ZEISS
01/2015 435064-7044-001 25
3.3 Mounting optional components
3.3.1 Mounting reflected-light illuminator
Various reflected-light illuminators can be used, depending on the case of application.
For fastening, defined interfaces have been provided on the microscope.
3.3.1.1 Mounting spot illuminator K LED or
double spot illuminator K LED
• Move the microscope body (Fig. 9/1) into its
uppermost position via the focusing knob
(Fig. 9/2).
• Insert the spot illuminator (Fig. 9/7) in the stand
by sliding the holder (Fig. 9/5) into the stand
guide (Fig. 9/4) from below and push it
upwards into the required position.
• Plug the connection cable (Fig. 9/6) of the spot
illuminator into the lower socket of the Stemi
mount (Fig. 9/3).
The double spot illuminator is
mounted in an analogical manner.

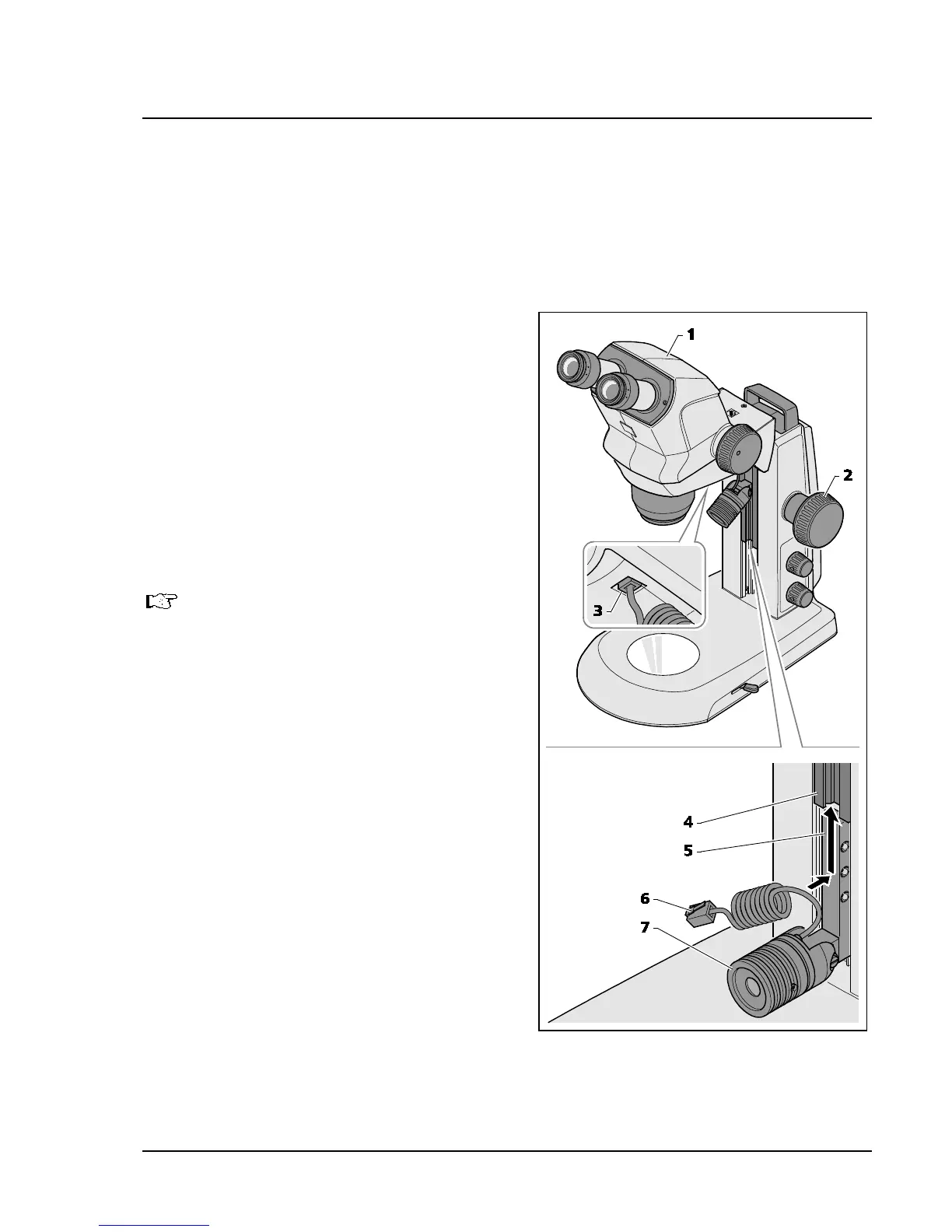

Fig. 9 Mounting spot illuminator
