4.3 Transmitted-light illuminators
4.3.1 Transmitted-light module in
stand K EDU
• Switch transmitted-light illumination ON by
pressing the lower knob (Fig. 20/2).
• With the transmitted light ON, turn this knob to
adjust the illumination intensity.
• Change over by adjusting the lever (Fig. 20/3)
between the bright field and the dark field
illumination.
− Front position: Dark field (DF)
− Rear position: Bright field (BF)
Press the upper button (Fig. 20/1) to
blend in reflected light (see Section 4.2
on page 30).

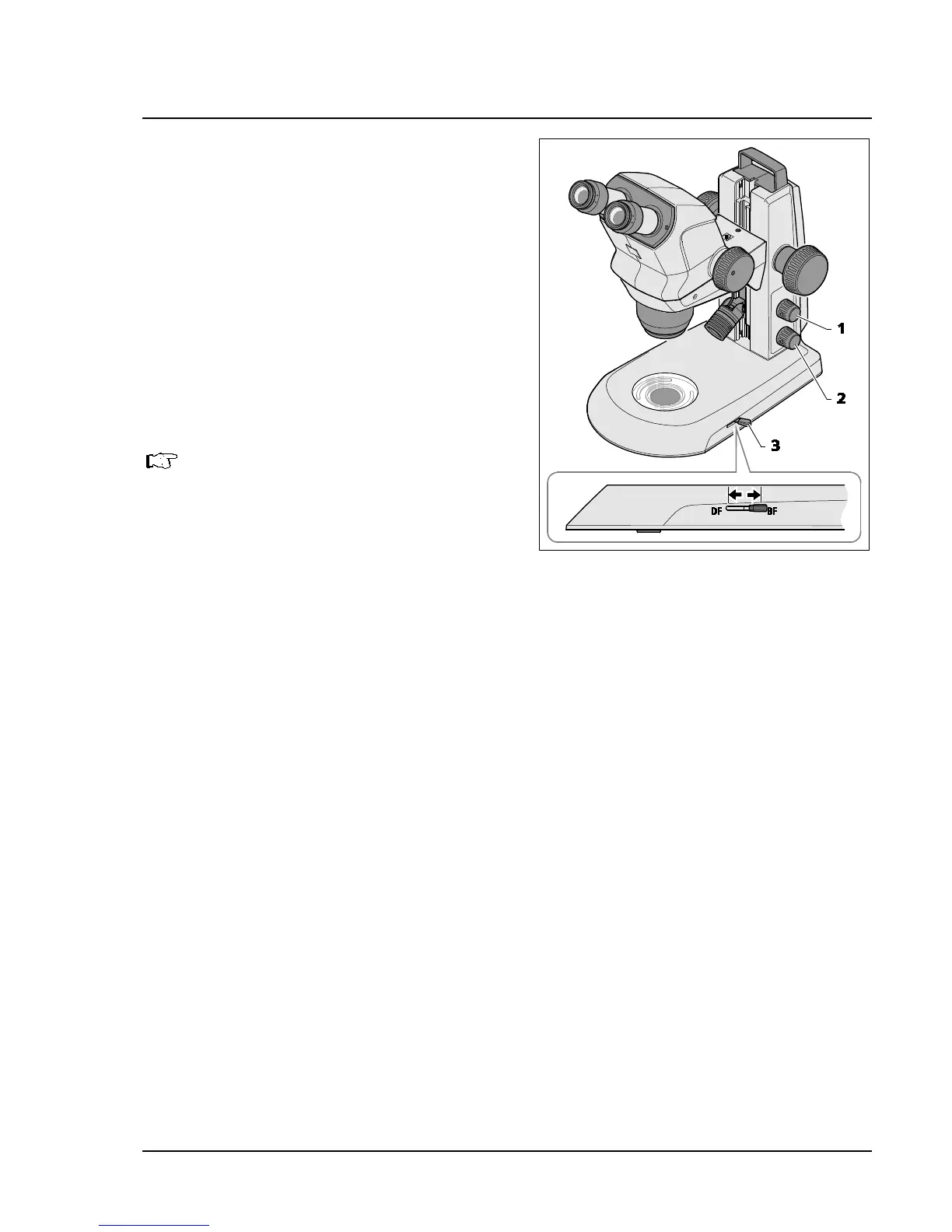

Fig. 20 Transmitted-light module in
stand K EDU
