5.2.3 Opening the stand cover plate,
stand K LAB
The transmitted-light base (Fig. 24/1) can be
removed from the stand cover plate (Fig. 24/3) for
cleaning or for removal of any foreign matter
which might have fallen in inadvertently.
• Release the three screws (Fig. 24/2) from the
stand cover plate (Fig. 24/1) using an Allen key
SW 2.5 and put them aside.
• Carefully lift the stand cover plate (Fig. 24/3) off
the transmitted-light base (Fig. 24/1) and put
the stand aside.
Make sure that the cable (Fig. 24/4) is
not disconnected from the transmitted-
light base (Fig. 24/1).
To clean the LED, the optical elements
and the mirror, use a soft lint-free cloth,
a cotton wool bud wound around a
round wooden stick or a brush with
natural bristles, possibly moistened
slightly in distilled water.

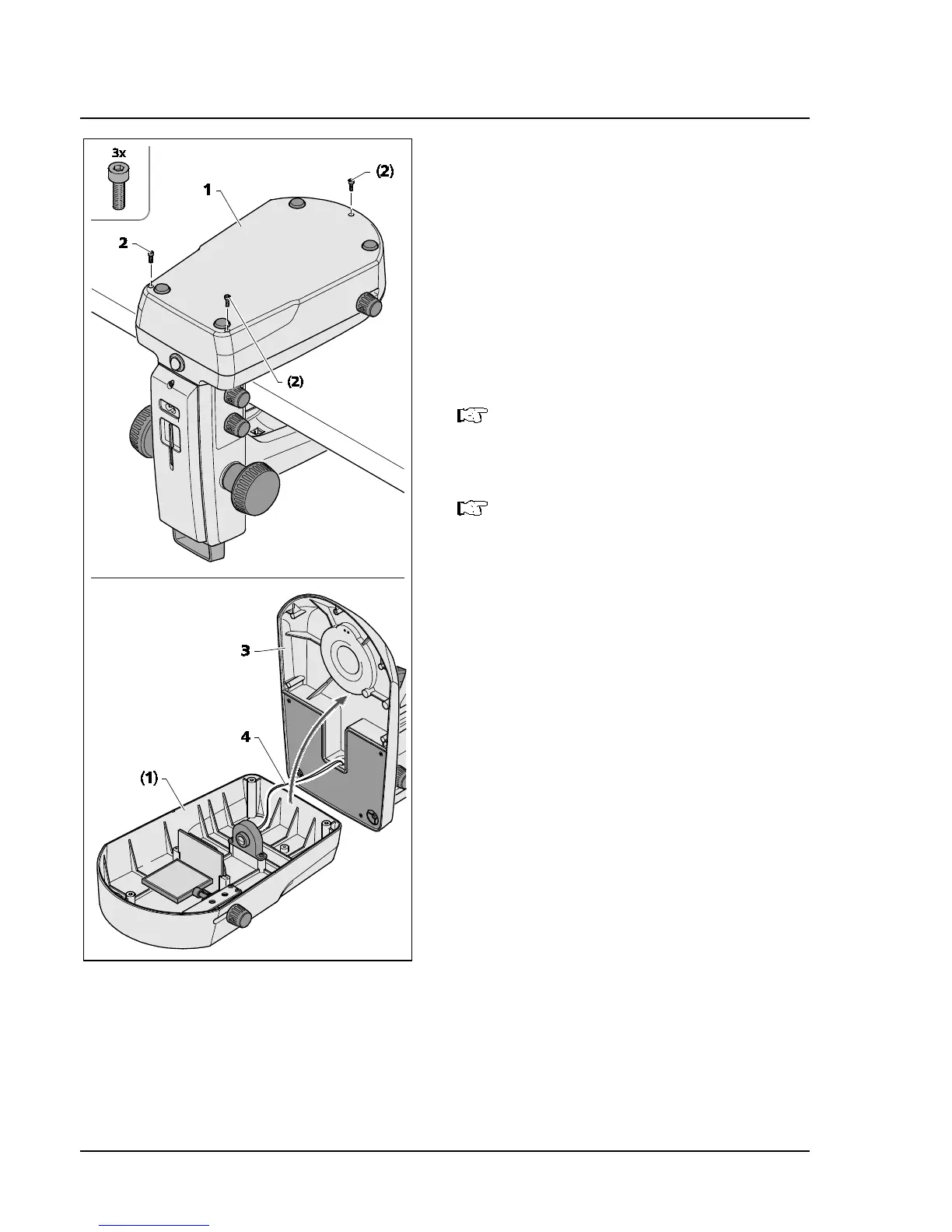

Fig. 24 Opening the stand cover plate,
stand K LAB
