Zeiss Stemi 508 - Page 26

INSTALLATION Stereo microscope
ZEISS Mounting optional components Stemi 508
26 435064-7044-001 01/2015
3.3.1.2 Mounting ring illuminator K LED
(segmentable)
• Push holding ring A53 (Fig. 10/2) from the
underside onto the dust protection glass
(Fig. 10/1) of the Stemi 508 and secure it by
tightening the two retainer screws (hexagon
socket, SW 3).
• Insert the connection cable (Fig. 10/5) of the
ring illuminator (Fig. 10/3) into the lower socket
(Fig. 10/6) of the Stemi mount and into the
socket of the ring illuminator.
• Push ring illuminator onto the retainer ring A53
(Fig. 10/2) from below and secure using the
knurled screw (Fig. 10/4).
3.3.1.3 External fiber-optic illumination
• Switch on external fiber-optic illumination
(Fig. 11/1), adjust illumination intensity and set
illumination by bending the two goose necks
(Fig. 11/2) so that the specimen is optimally lit.
To this effect, refer also to the
separate oper
ating instructions
regarding the cold light source.

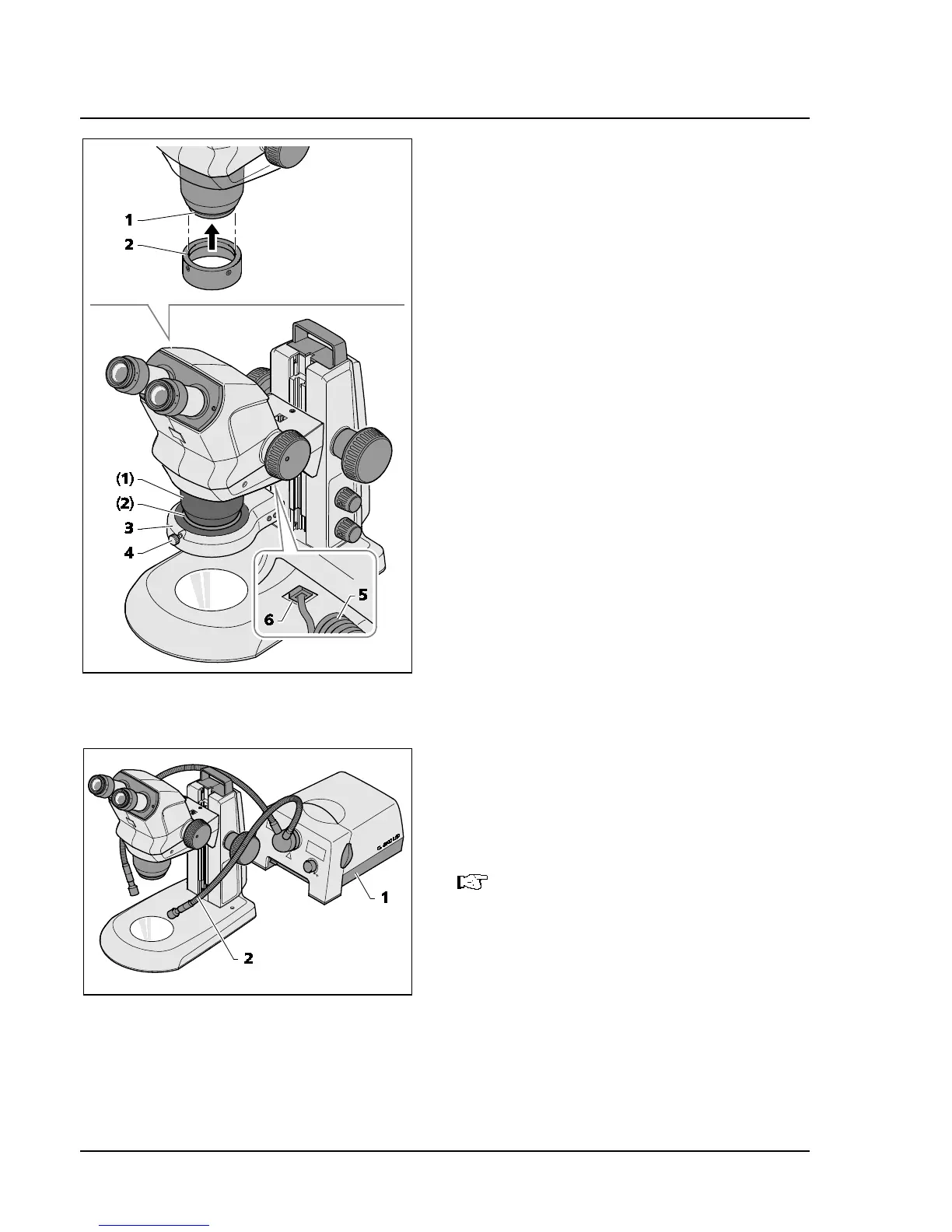

Fig. 10 Mounting ring illuminator
Fig. 11 Mounting external fiber-optic
illumination
