Zeta SmartConnect - Panel Internal Layout

Smart Connect Single Loop Touch Screen Panel
Doc: GLT-229-7-1 12
Issue: 3
Date: 12/05/2017
3.2 PANEL INTERNAL LAYOUT
Figure1

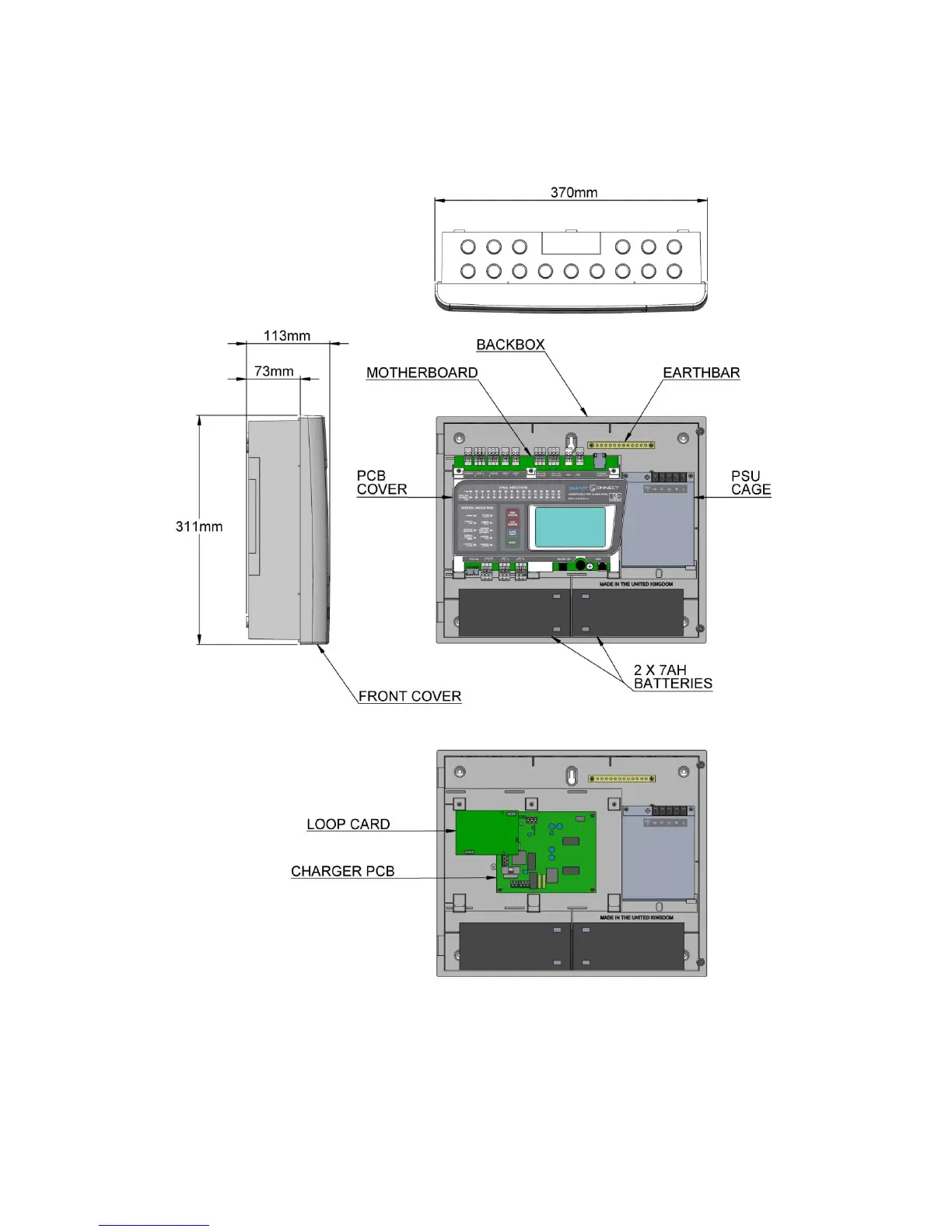

Figure1: Plan view of Smart Connect panel showing internal view with main PCB fitted and with main PCB removed
