Smart Connect Single Loop Touch Screen Panel
Doc: GLT-229-7-1 34
Issue: 3
Date: 12/05/2017

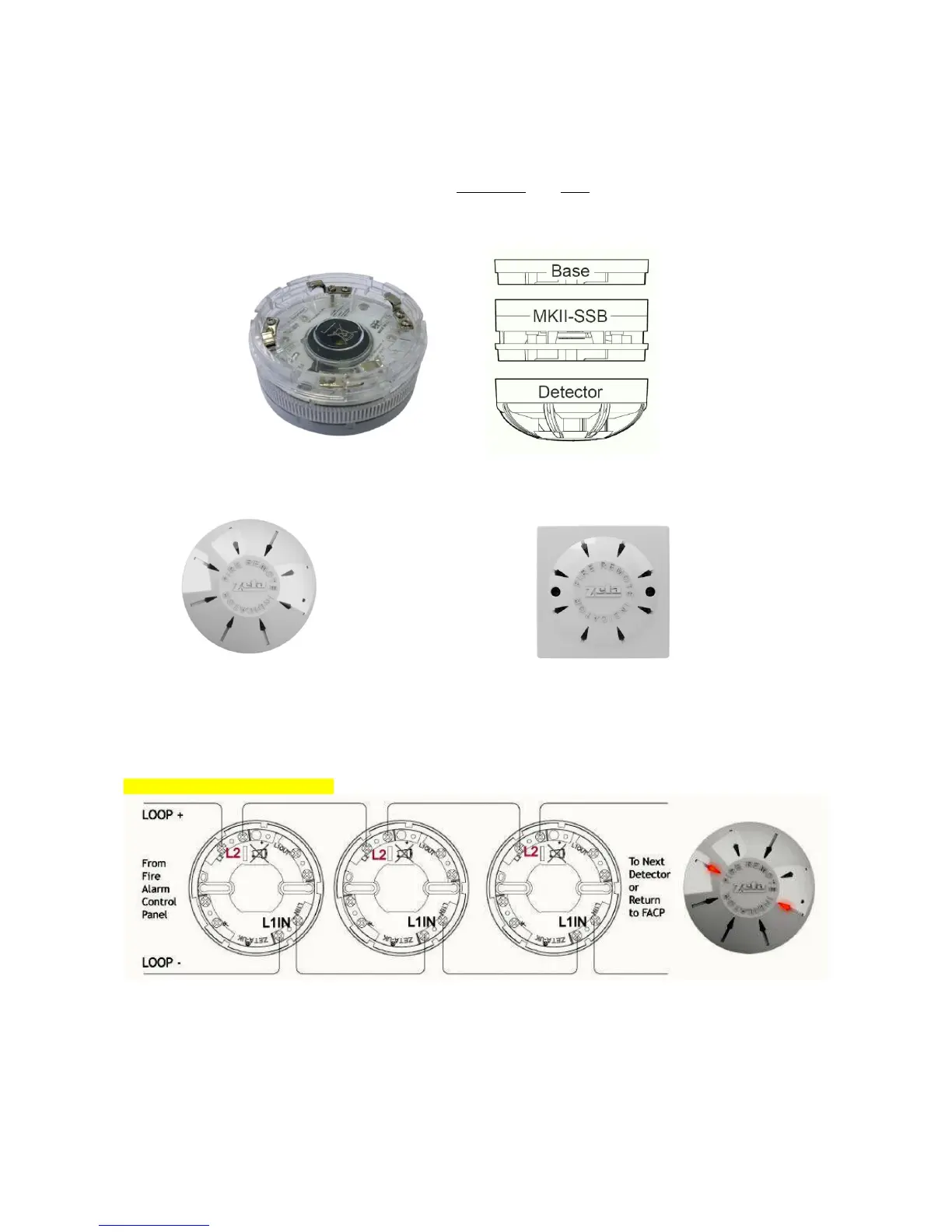

6.3.8 Sandwich Sounder
The sandwich sounder has no wiring to connect as it just clips straight on to a standard base. It will run as a platform sounder using
no address, and is controlled by the detector fitted to it. It can also be given an address via the handheld programming tool making
it an addressable sounder. (Note: If the sandwich sounder has NO ADDRESS it will ONLY function with an addressed detector fitted
on top of it.)
MKII-SSB
6.3.9 Remote LED Indicator
Ceiling Mount (MKII-ARL/C) Wall Mount (MKII-ARL/W)
There are two versions of the remote LED, Wall mounted and Ceiling mounted. The ceiling mounted version requires a standard
detector base.
Each version of the remote LED can monitor 1 or up to 12 devices. The way in which the LED is programmed is either via the D.I.L
switches on the device or soft addressing via the handheld programmer.
Connection to an Addressable Detector
Fig 1
Fig 1: shows the connections for a ceiling mount version remote LED
