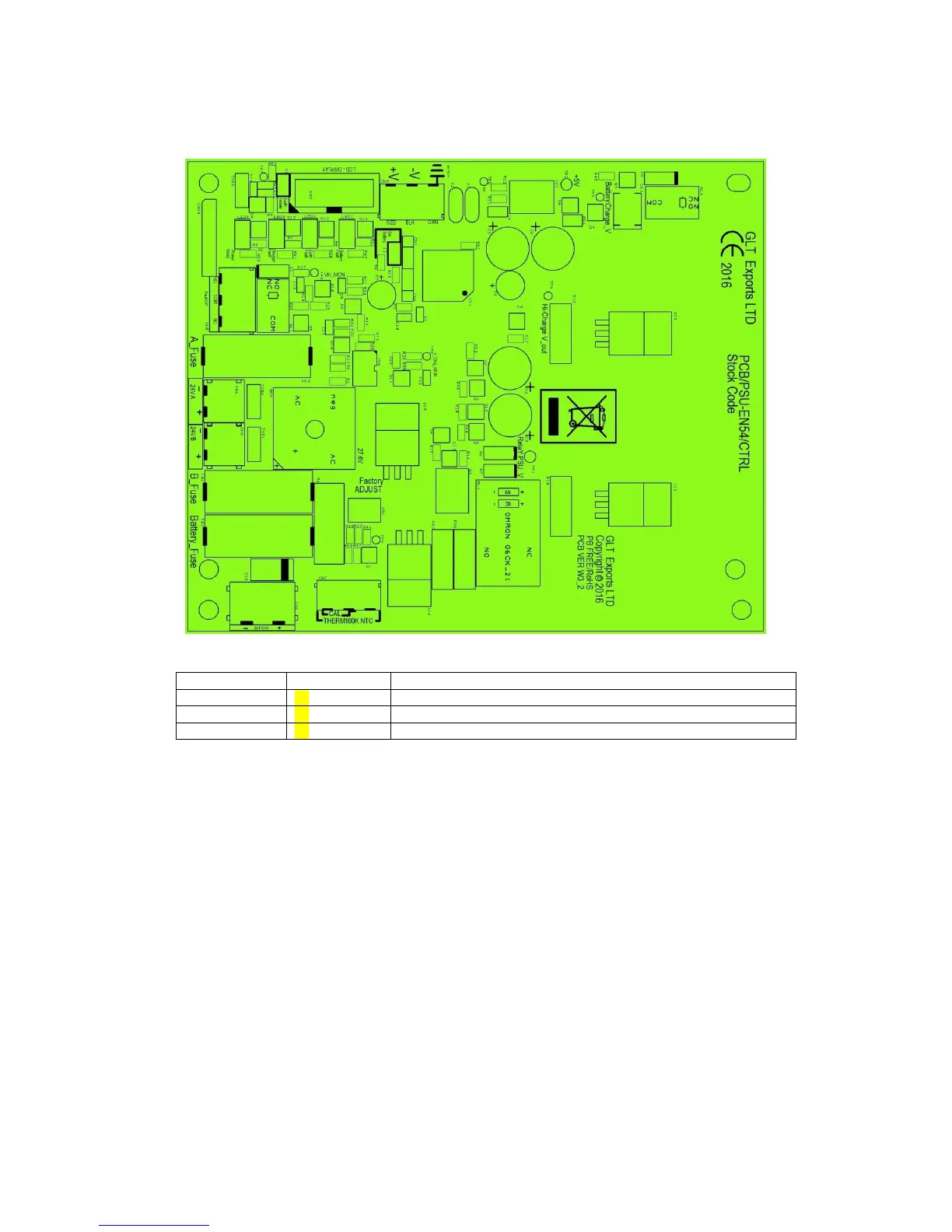

2.5 FUSE SPECIFICATIONS - Power Supply Controller PCB
Fuse Label
Rating
Description
A_Fuse
1A
PSU Output – Channel A (USED TO POWER PANEL)
B_Fuse
1A
PSU Output – Channel B (SPARE)
Battery Fuse
5A
Battery fuse
2.6 FUSE SPECIFICATIONS - CIE PCB
The Smart Connect CIE PCB has no User serviceable fuses. It uses resettable fuses throughout
