6.3.6 ZAZM – MI Conventional Zone Module
The ZAZM powers the conventional zone from the addressable systems loop, so no external power supply is required. The EOL for
the zone is 6.2KΩ.
6.3.7 Xtratone Sounder/Sounder Flasher
The Xtratone sounder or sounder flasher is a wall mount sounder. The programming of the sounder is done via the D.I.L switch
mounted on the inside (front). It may also be programmed via the handheld programming tool.

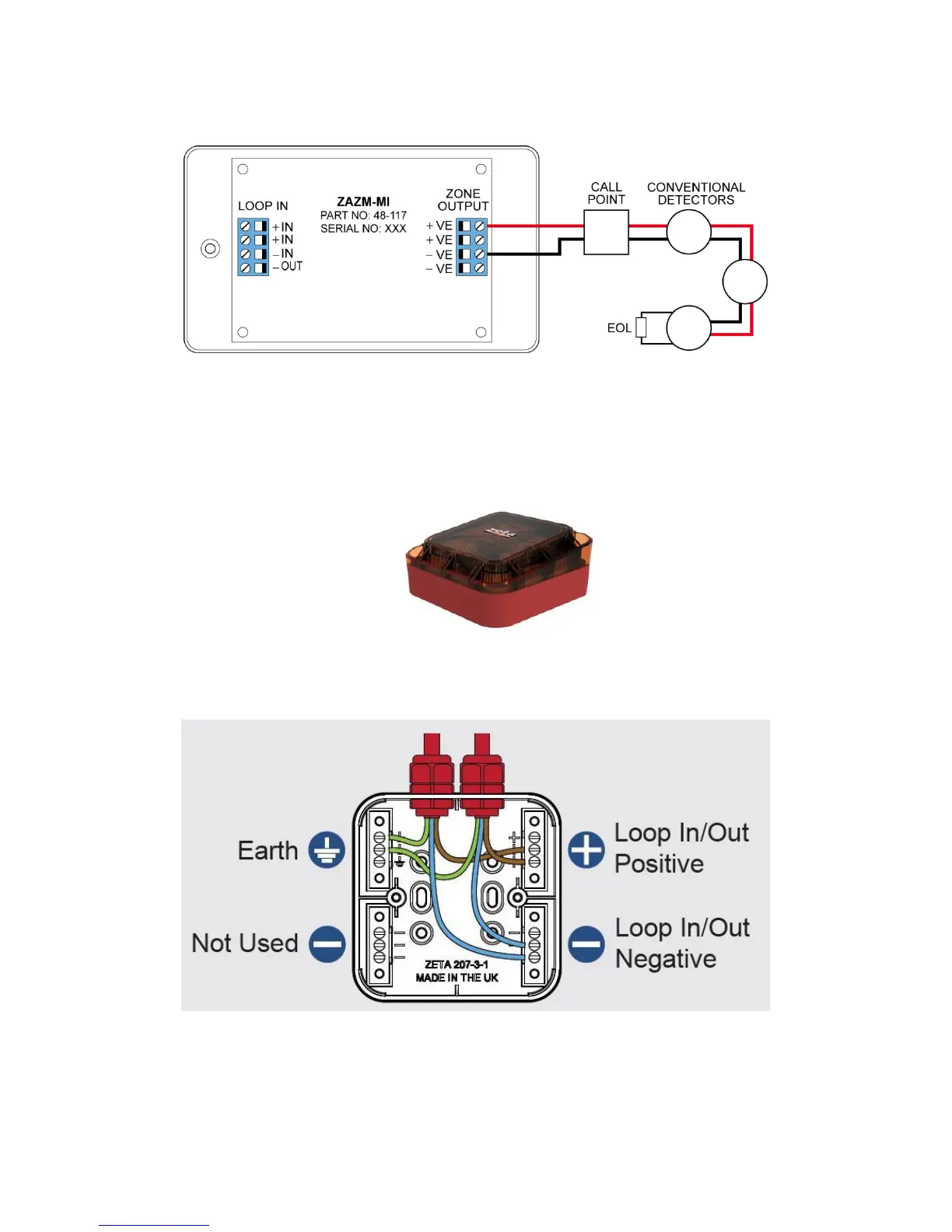

Connecting the sounder is done using the terminals in the back box of the device. Please refer to the above diagram.
