Zeta SmartConnect - MKII Detectors (All Types)

Smart Connect Single Loop Touch Screen Panel
Doc: GLT-229-7-1 31
Issue: 3
Date: 12/05/2017
6.3.2 MKII detectors (All types)
 Base Connection

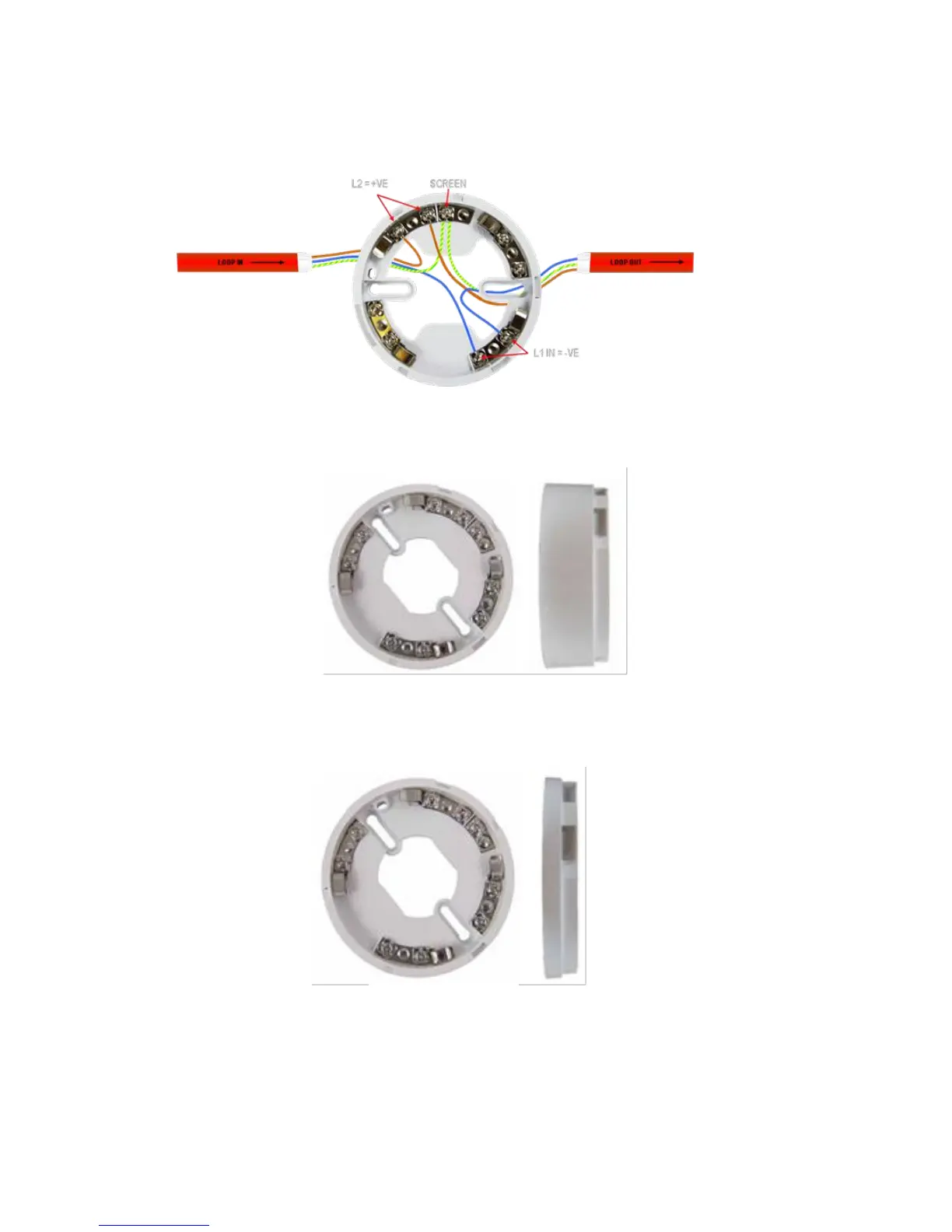

The connection for the detectors bases is made as follows:
Terminal L1IN is –ve (Blue)
Terminal L2 is +ve (Brown)
These are the only two connections required.
Deep Base MKII-CB/D
Common Base MKII-CB
