Smart Connect Single Loop Touch Screen Panel
Doc: GLT-229-7-1 35
Issue: 3
Date: 12/05/2017
Connection to an Addressable Detector

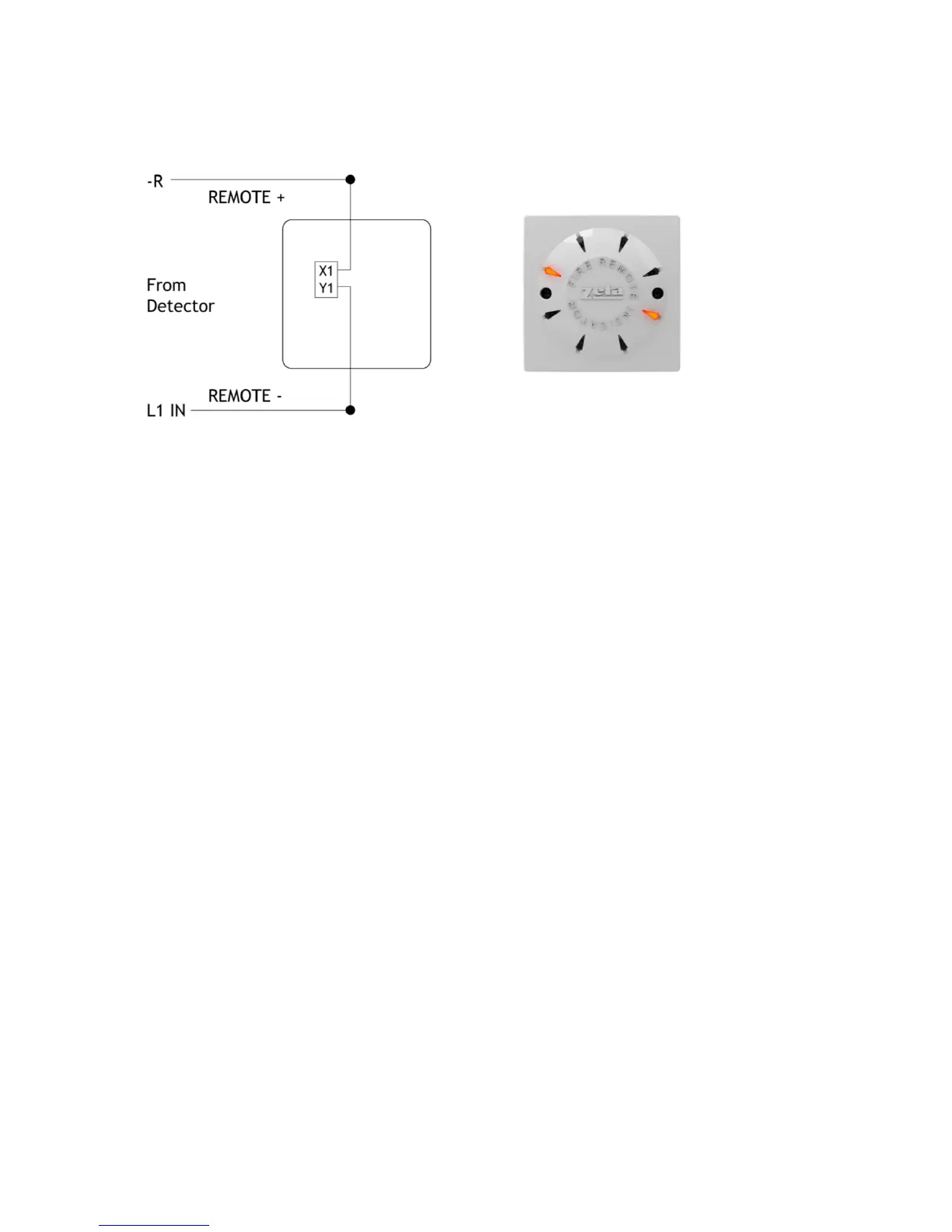

Fig 2
Fig 2: shows the connections for a wall mount version remote LED
