ZF AV 110 - Page 20

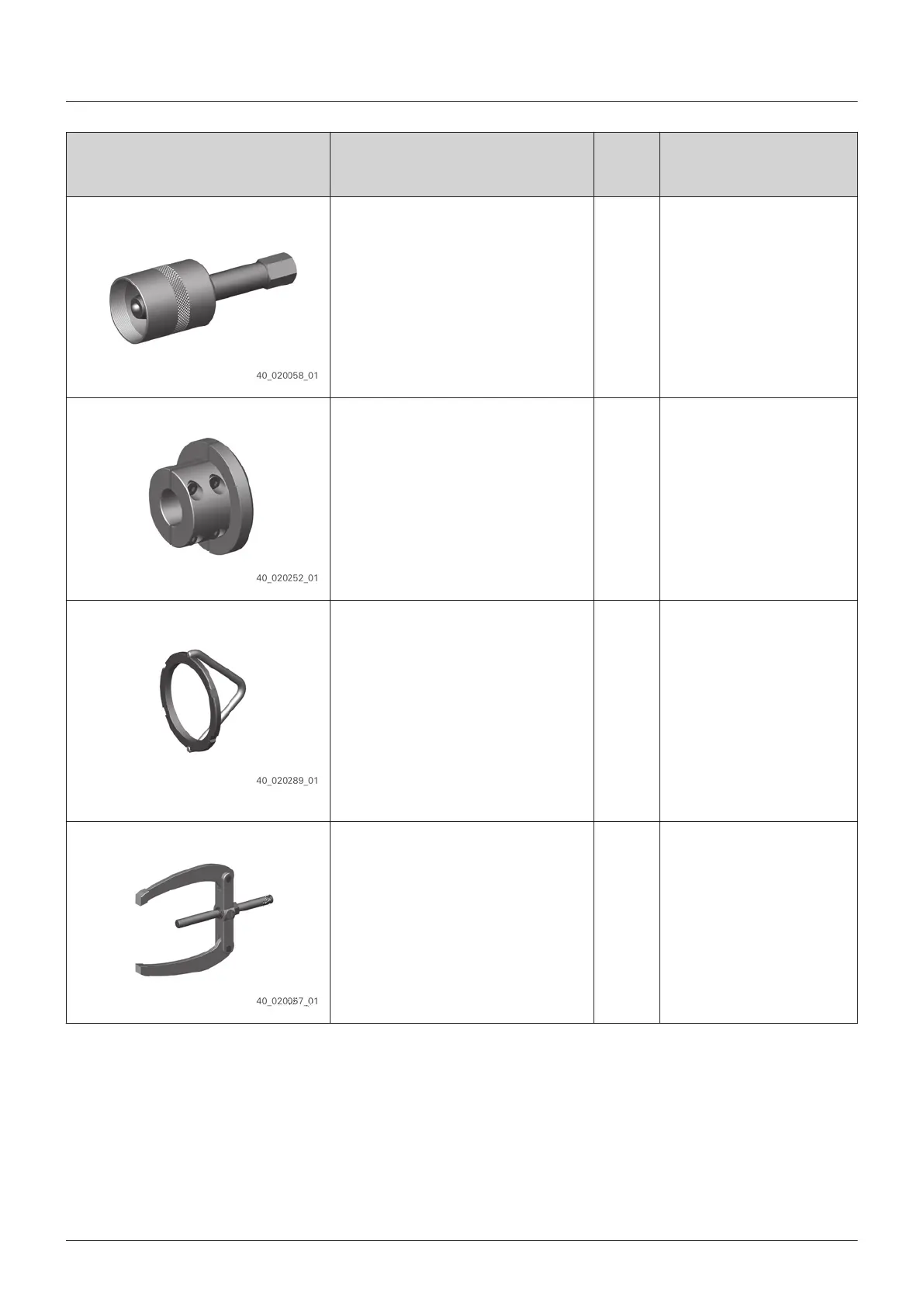

Figure Order no.
Designation
Chap
ter/section
Quantit
y
Comment
5873.002.001
Basic t
ool
▪
Dismantling left portal drive,
page 48
▪
Dismantle right portal drive,
page 58
▪
Dismantle differential., page 68
▪
Remove input, page 70
1 Use only in connection
wit
h gripping device.
M95 x 2, length of sleeve
125 mm
AA02.049.488
Disassembl
y device
▪
Dismantling left portal drive,
page 48
1
5870.281.054
Ey
e nut
▪
Dismantling left portal drive,
page 48
▪
Dismantle right portal drive,
page 58
▪
Assemble left portal drive,
page 88
▪
Assemble right portal drive,
page 103
1 M105 x 1.5
5870.300.009
Extr
acting device
▪
Dismantling left portal drive,
page 48
▪
Dismantle right portal drive,
page 58
▪
Dismantle differential., page 68
1
