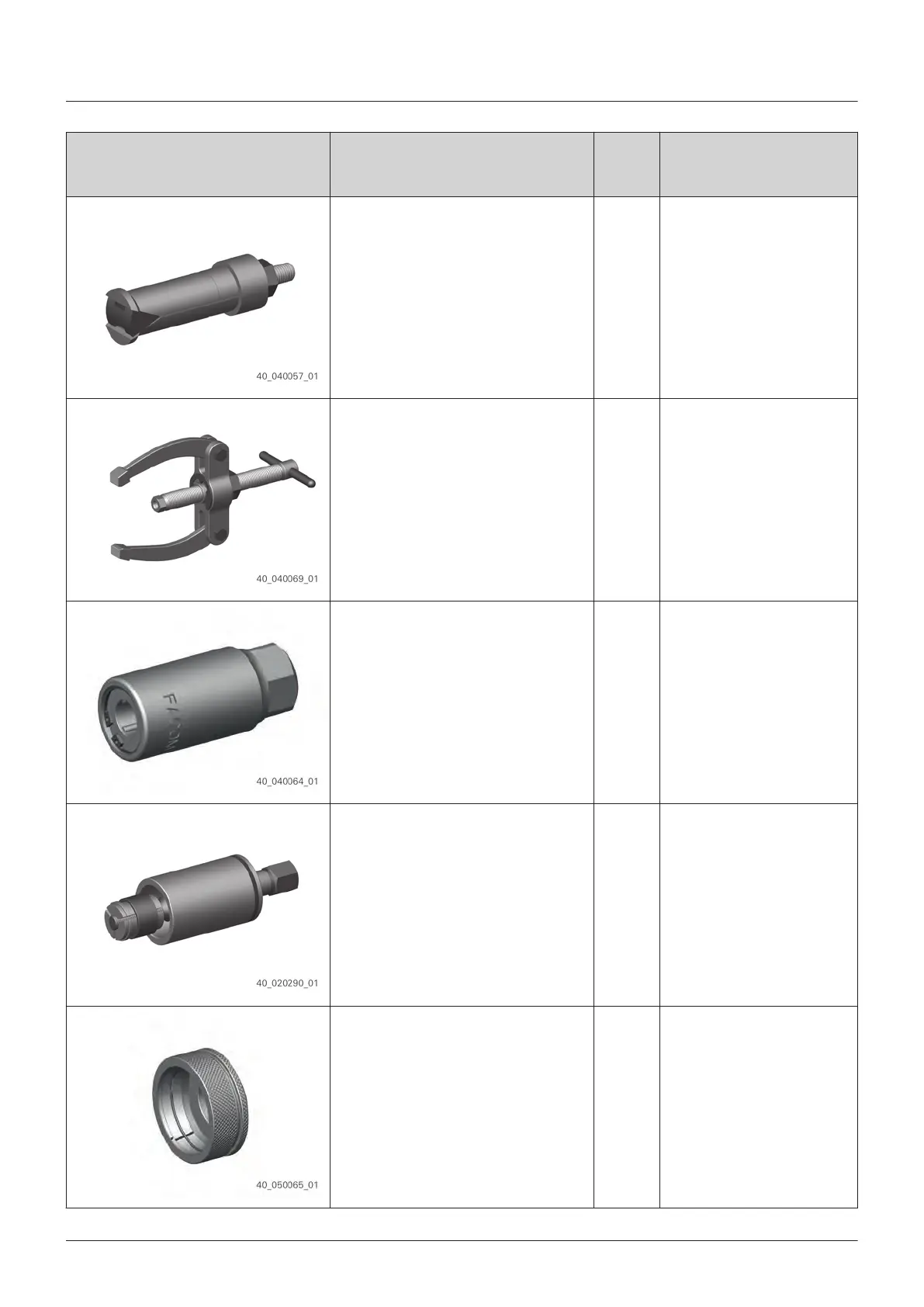

ZF AV 110 - Page 22

Figure Order no.
Designation
Chap
ter/section
Quantit
y
Comment
5870.300.007
Extr
acting device
▪
Dismantling left portal drive,
page 48
▪
Dismantle right portal drive,
page 58
1 45 mm – 58 mm
5870.300.003
Extr
acting device
▪
Dismantling left portal drive,
page 48
▪
Dismantle right portal drive,
page 58
1
AA01.305.639
r
emoving tool
▪
Dismantling left portal drive,
page 48
1 Ø14 mm
AA02.038.564
Disassembl
y device
▪
Dismantle right portal drive,
page 58
1
5873.002.025
Gr
ipping device
▪
Dismantle differential., page 68
1 M95 x 2
Workshop Equipment
22
EN 4472.751.001 - 2015-11
