ZF AV 110 - Page 25

Figure Order no.
Designation
Chap
ter/section
Quantit
y
Comment

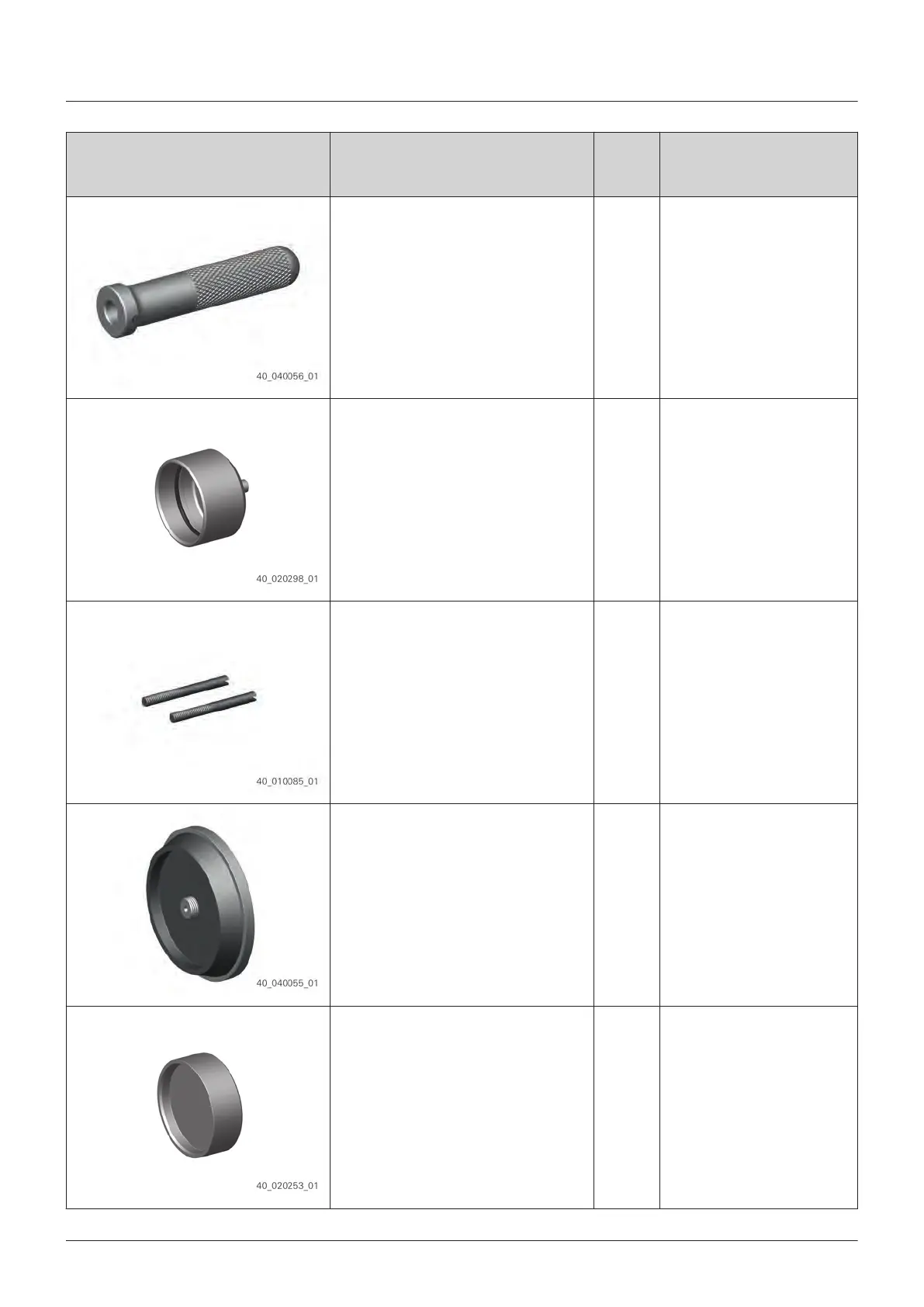

5870.260.002
Handle
▪
Ins
tall input, page 74
▪
Assemble differential, page 79
▪
Assemble left portal drive,
page 88
▪
Assemble right portal drive,
page 103
1 Length 160 mm
5870.056.008
Dr
iver tool
▪
Install input, page 74
1
5870.204.025
Locating pin
▪
Assemble dif
ferential, page 79
1 1 set = 2 units
M14 x 1.5 x 85
AA02.015.690
Dr
iver tool
▪
Assemble differential, page 79
1
AA02.056.505
Pr
essure piece
▪
Assemble differential, page 79
1
