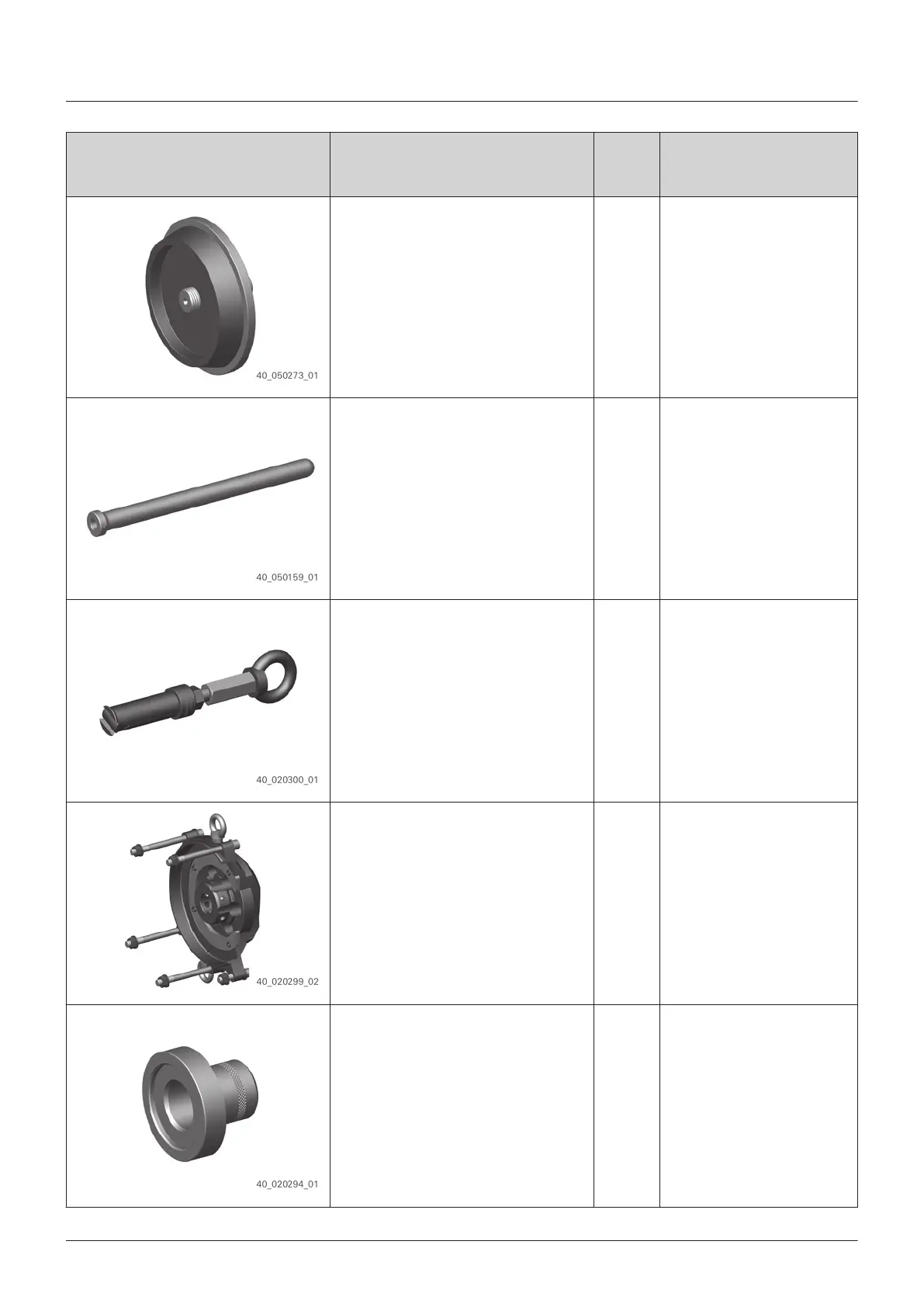

ZF AV 110 - Page 26

Figure Order no.
Designation
Chap
ter/section
Quantit
y
Comment
5870.058.070
Dr
iver tool
▪
Setting backlash and differential
bearing rolling torque and checking
axial run-out and contact pattern.,
page 81
1
5870.260.003
Handle
▪
Se
tting backlash and differential
bearing rolling torque and checking
axial run-out and contact pattern.,
page 81
1 Length 390 mm
AA01.266.870
Load-lif
ting equipment
▪
Setting backlash and differential
bearing rolling torque and checking
axial run-out and contact pattern.,
page 81
1 Ø 35 mm – 46 mm
AA02.060.628
T
est device
▪
Setting backlash and differential
bearing rolling torque and checking
axial run-out and contact pattern.,
page 81
1
5870.048.216
Dr
iver tool
▪
Install shaft seal onto the drive,
page 86
1
Workshop Equipment
26
EN 4472.751.001 - 2015-11
