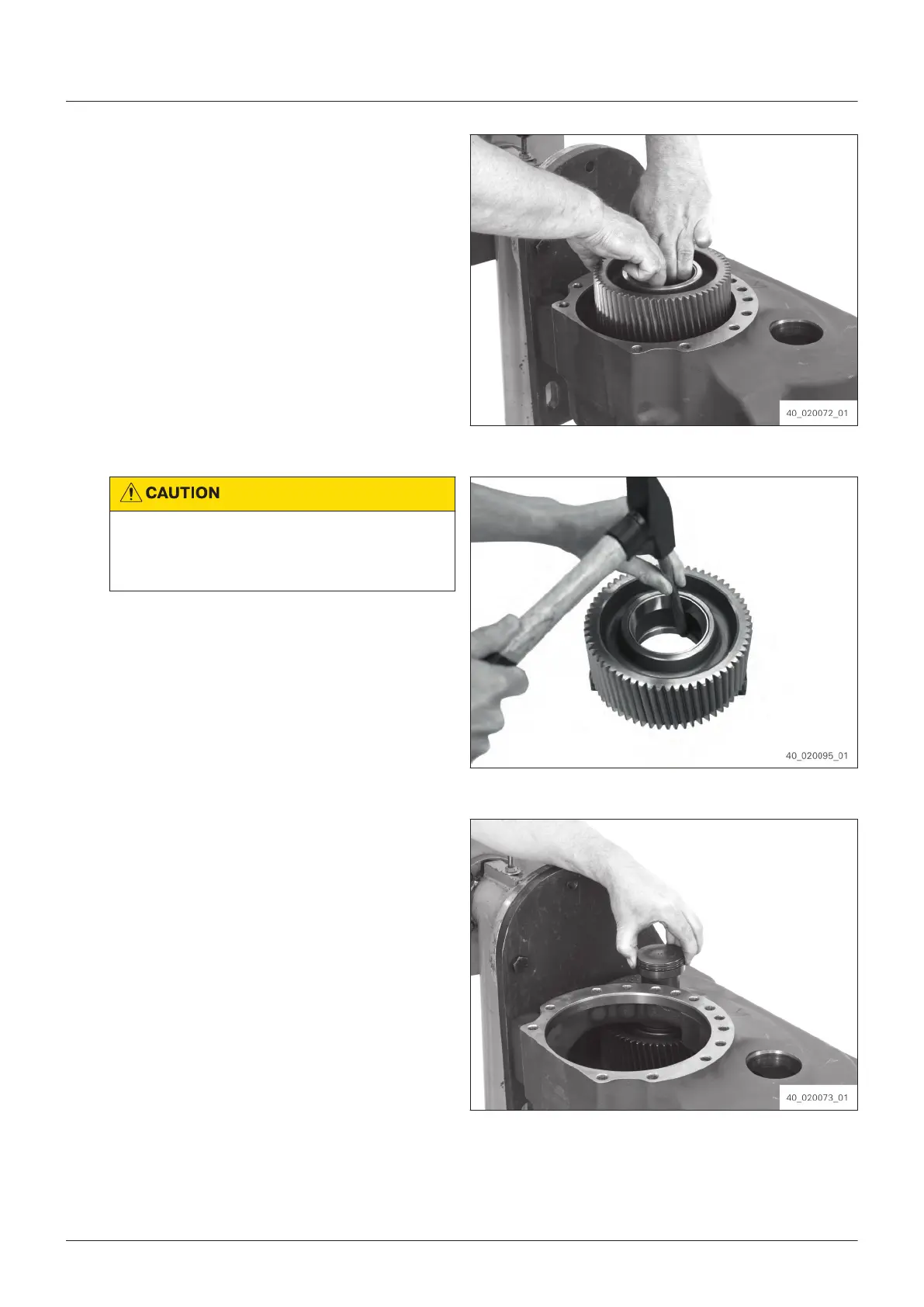

25. Remove tapered roller bearing and
int
ermediate gear.
Fig. 69
26.
Risk of injury due to parts flying away.
Slight or moderate injury possible.
ð
Wear protective goggles.
Force bearing inner rings out of the
int
ermediate gear.
Fig. 70
27. Loosen cylindrical screw on the bearing bolt.
28.
Bolt in 5870.204.022 [Locating pin] at the
bearing bolt.
29. Force out and remove bearing bolt.
Fig. 71
Dismantling
