ZF AV 110 - Page 65

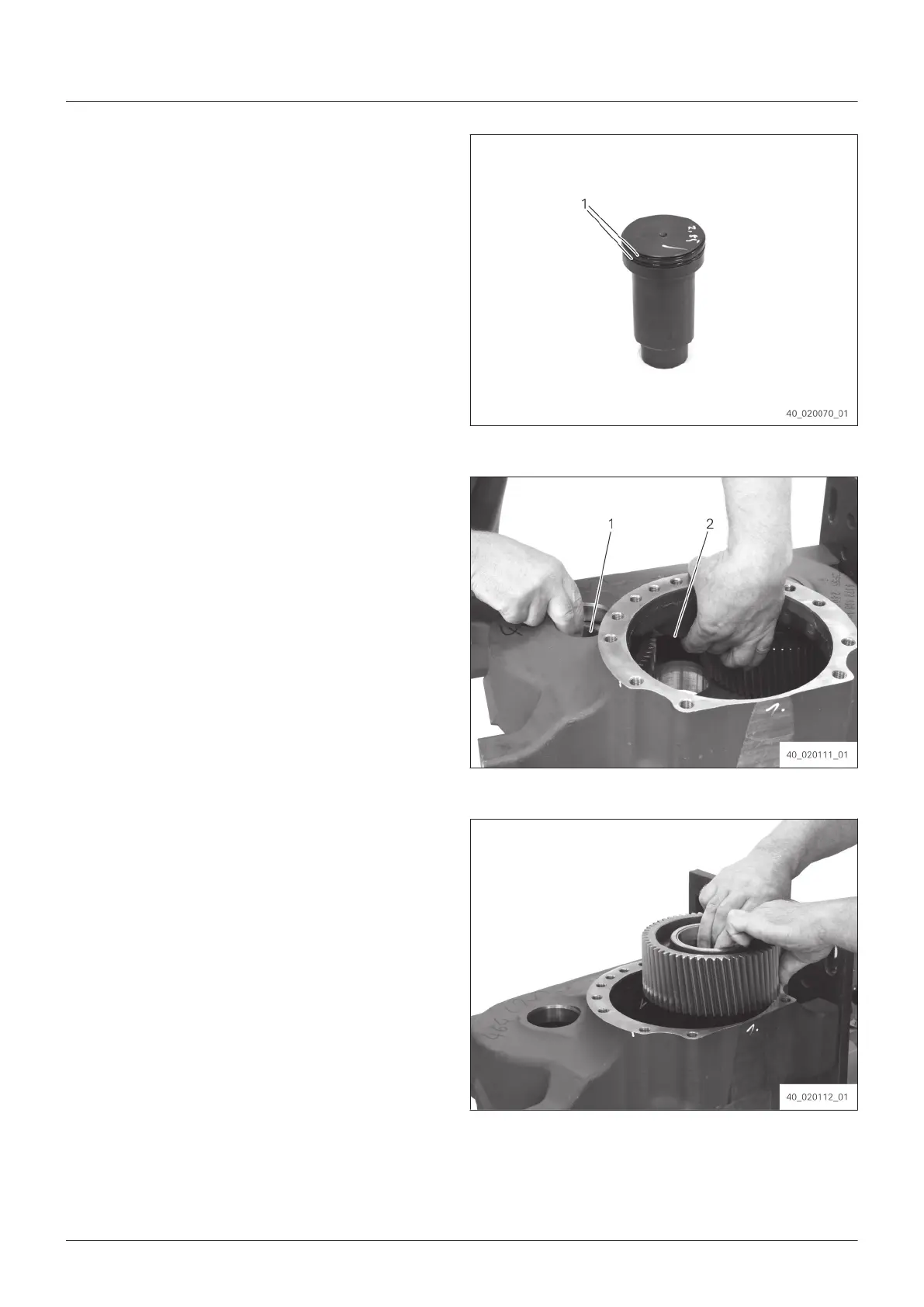

21. Remove O‑rings (1).
Fig. 97
22. Hold shaft washer, axial roller cage and disk
(2).
23.
Push tapered roller bearing (1) and
intermediate gear outwards and remove the
releasing parts (2).
Fig. 98
24. Remove tapered roller bearing and
int
ermediate gear.
Fig. 99
Dismantling
