ZF AV 110 - Page 66

25.
Risk of injury due to parts flying away.
Slight or moder
ate injury possible.
ð
Wear protective goggles.

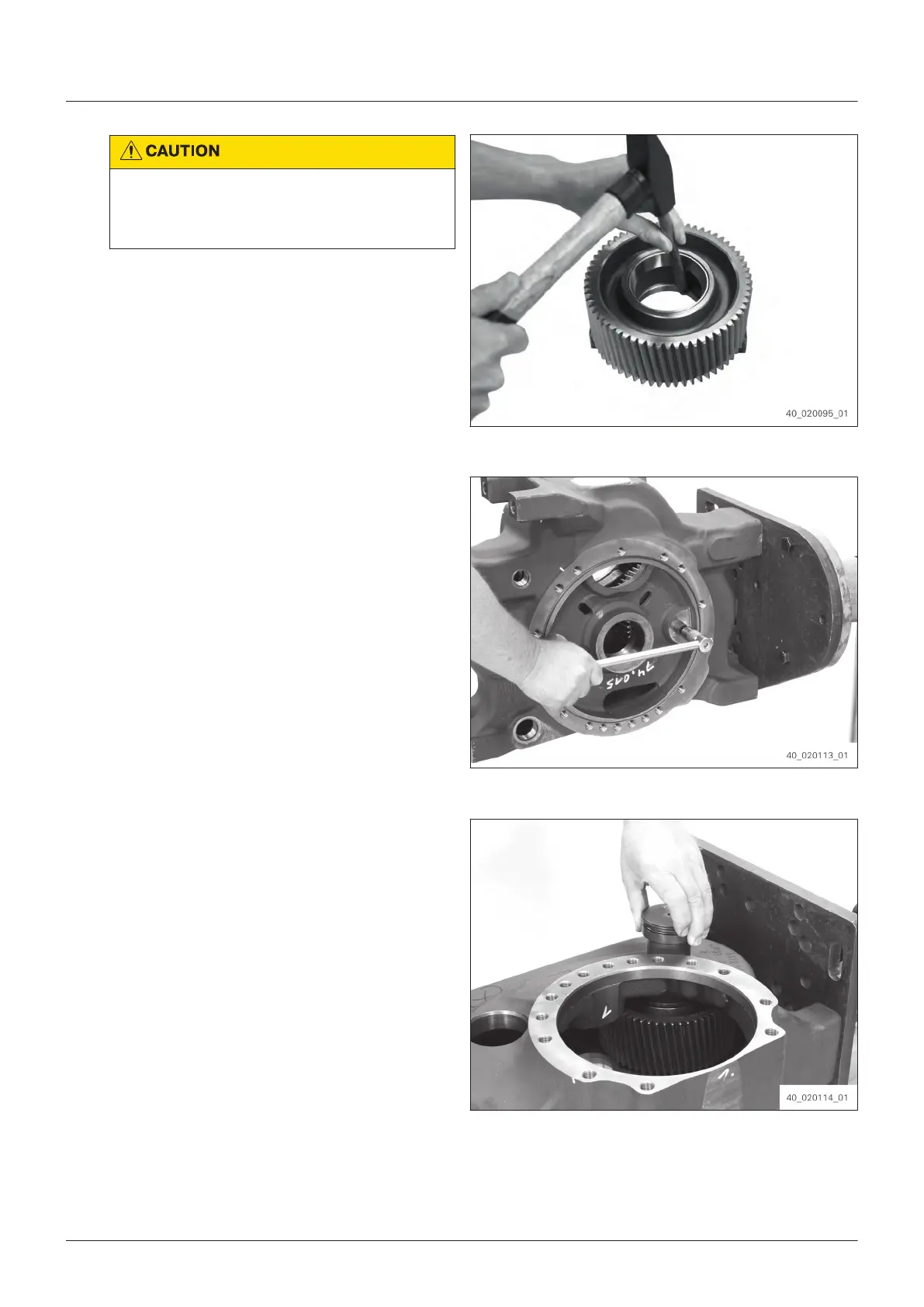

Force bearing inner rings out of the
int
ermediate gear.
Fig. 100
26. Loosen cylindrical screw.
Fig. 101
27. Bolt in 5870.204.022 [Locating pin] at the
bear
ing bolt.
28. Force out and remove bearing bolt.
Fig. 102
Dismantling
66
EN 4472.751.001 - 2015-11
