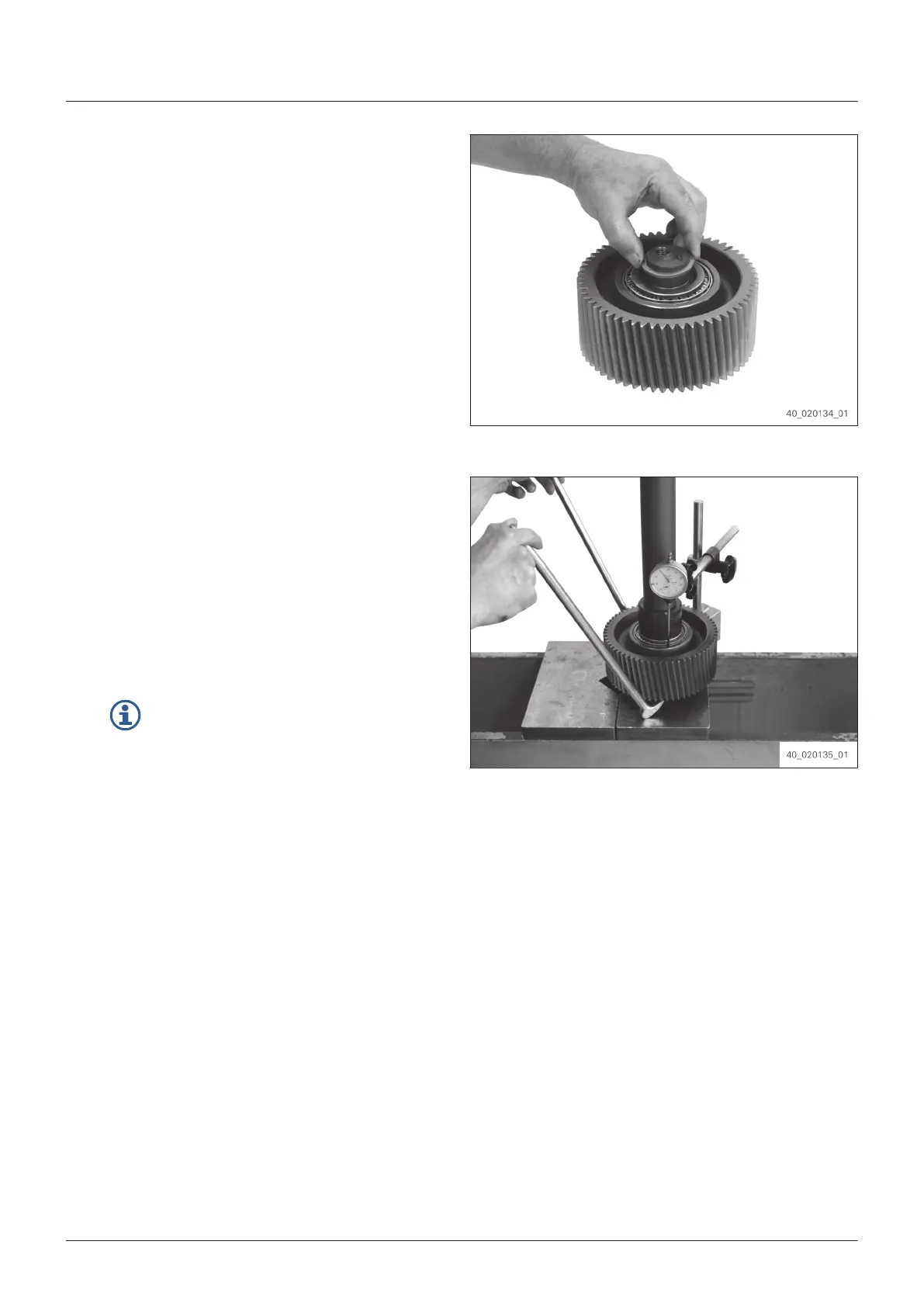

9. Put shim with e. g. s = 2.80 mm onto the
bear
ing bolt.
Fig. 164
10. Rotate intermediate gear several times and
use 5870.200.094 [Measur
ing arbor] and a
press to preload with 10 kN.
11. Place dial gauge at the inner surface.
12. Evenly lift the intermediate gear with a pry
bar and check the necessary setting of the
intermediate gear bearing 0.01 mm preload–
0.05 mm clearance.
If the required axial play is not reached,
r
eplace the shim as specified below:
▪ In case of an insufficient axial play,
install a thicker shim.
▪ In case of an excessive axial play,
install a thinner shim.
13. Mark the installation position of the individual
par
ts.
14. Dismantle the individual parts.
Fig. 165
Assembly
EN 4472.751.001 - 2015-11
91
