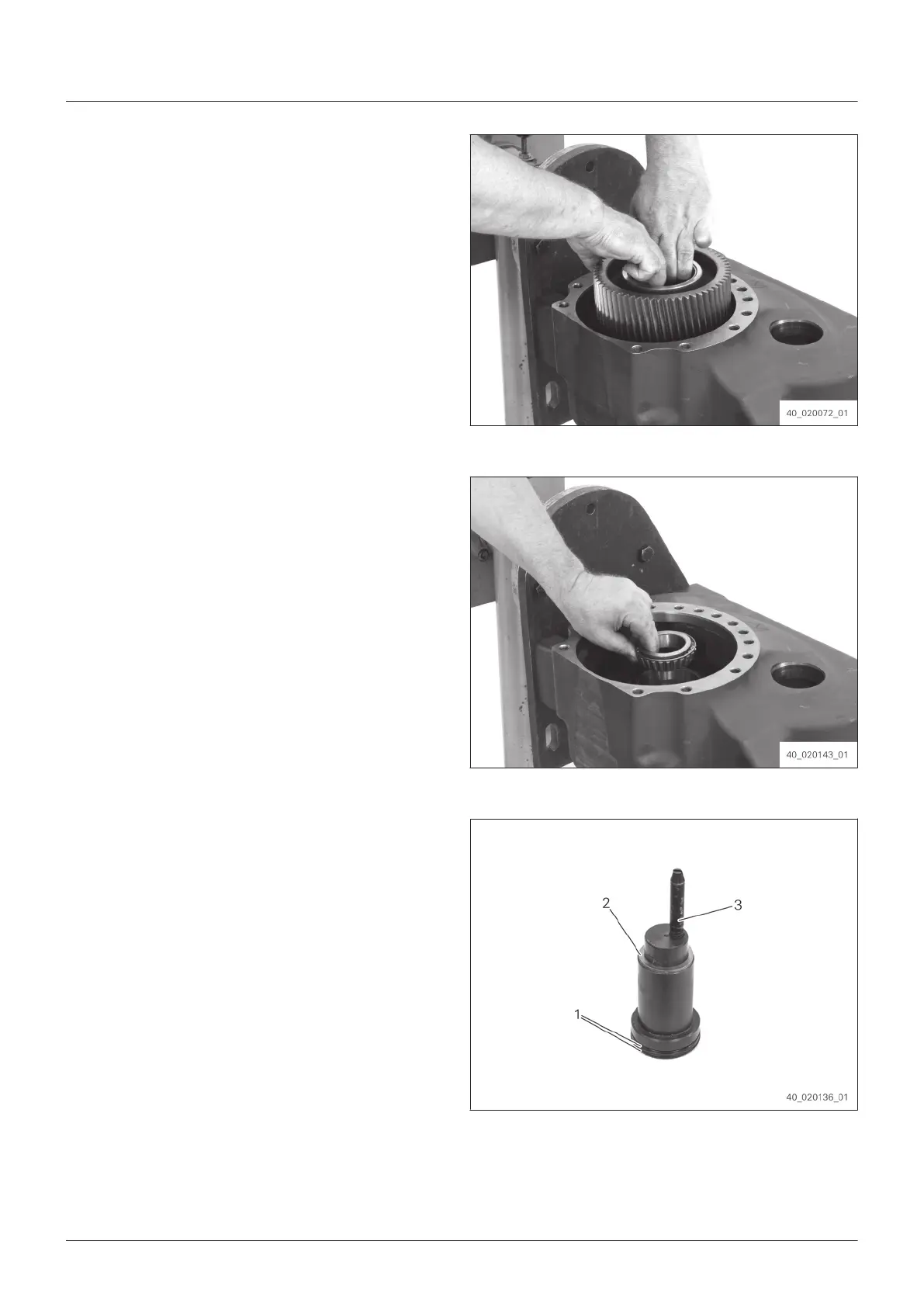

15. Insert the tapered roller bearing into the
por
tal housing.
16. Insert the intermediate gear into the portal
housing.
Fig. 166
17. Insert the tapered roller bearing into the
int
ermediate gear.
18. Place intermediate gear and tapered roller
bearing onto a bush (thrust washer) in the
portal housing.
Fig. 167
19. Grease O‑rings (1) and insert them into the
annular g
rooves.
20. Glue the determined shim (2) with grease
onto the bearing bolt.
21. Bolt 5870.204.022 [Locating pin] (3) into the
bearing bolt.
Fig. 168
Assembly
92
