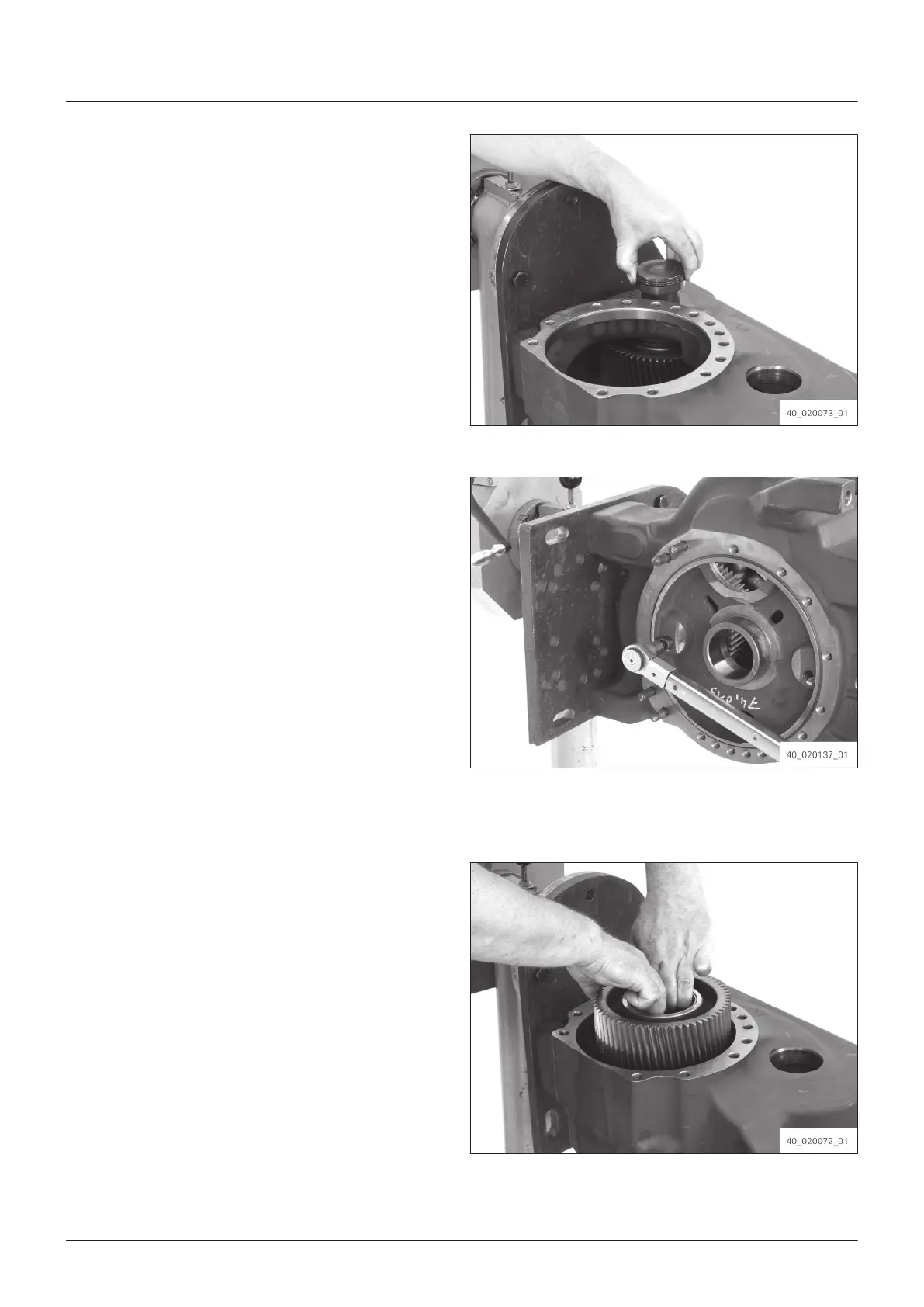

22. Slide the bearing bolt into the portal housing
and f
ix intermediate gear and tapered roller
bearing.
23. Remove 5870.204.022 [Locating pin].
Fig. 169
24. Fix bearing bolt with a cylindrical screw.
T
ightening torque: 185 Nm
Fig. 170
25. Set the bearing of the second intermediate gear as illustrated.
26. Insert the tapered roller bearing into the
por
tal housing.
27. Insert the intermediate gear into the portal
housing.
Fig. 171
Assembly
