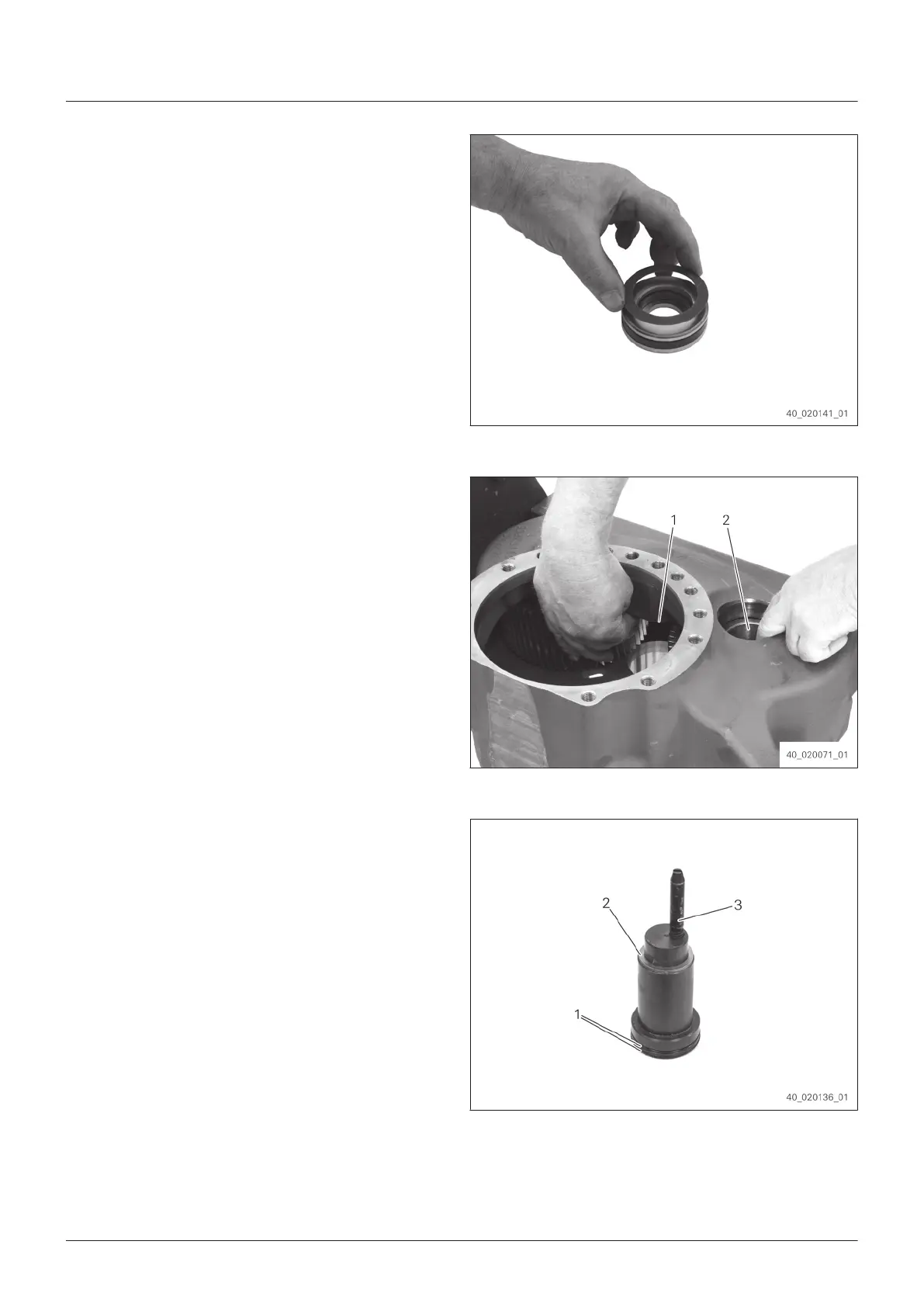

32. Place cup spring with the concave side
sho
wing downwards onto the disk.
Fig. 175
33. Insert the stacked parts with the cup spring
sho
wing upwards into the hole on the portal
housing (1) and hold them.
34. Place tapered roller bearing and intermediate
gear (2) in such a way that the stacked parts
are fixed in the hole (1).
Fig. 176
35. Grease O‑rings (1) and insert them into the
annular g
rooves.
36. Glue the determined shim (2) with grease
onto the bearing bolt.
37. Bolt 5870.204.022 [Locating pin] (3) into the
bearing bolt.
Fig. 177
Assembly
EN 4472.751.001 - 2015-11
95
