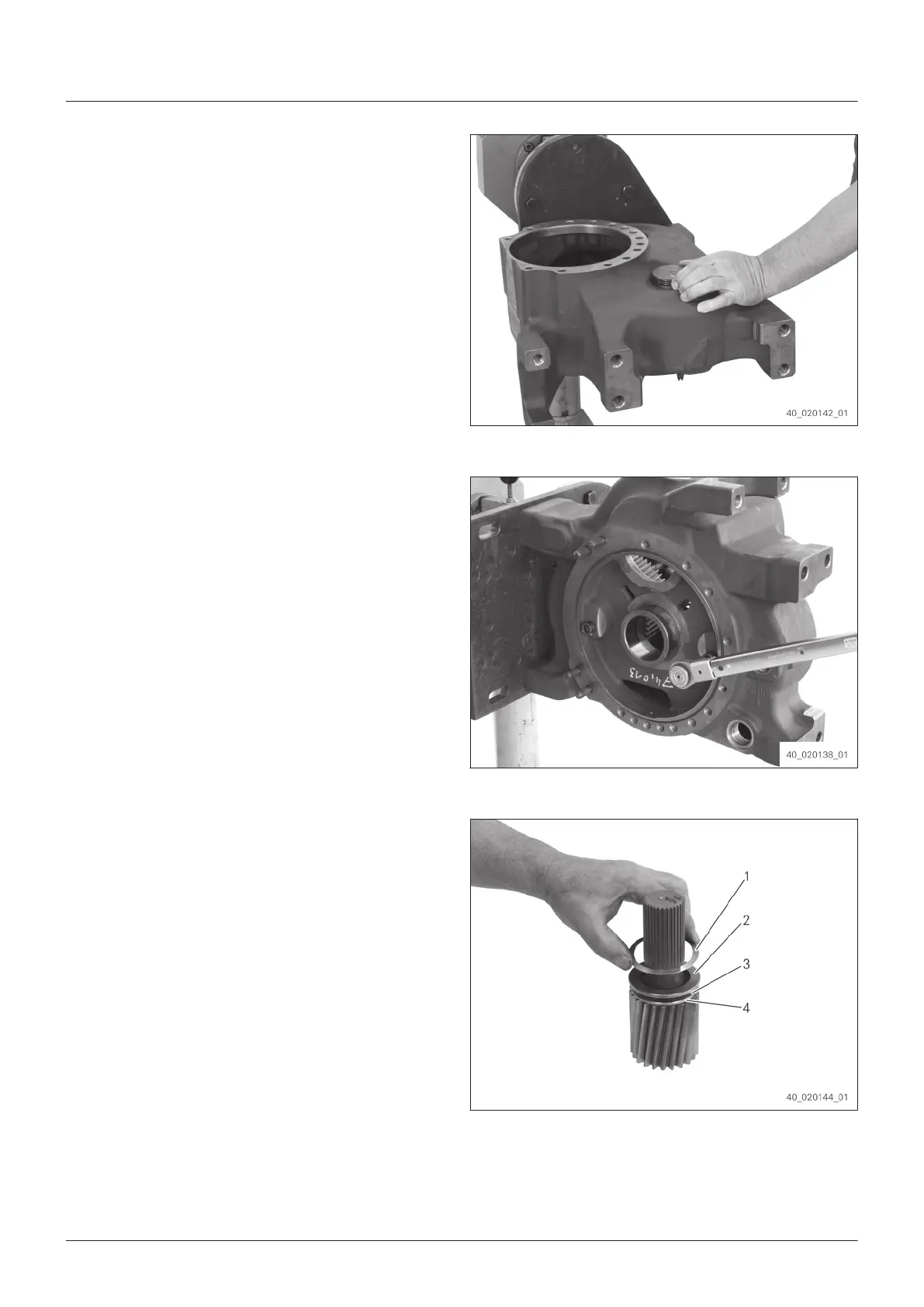

38. Slide the bearing bolt into the portal housing
and f
ix intermediate gear and tapered roller
bearing.
39. Remove 5870.204.022 [Locating pin].
Fig. 178
40. Fix bearing bolt with a cylindrical screw.
T
ightening torque: 185 Nm
Fig. 179
41. Place shaft washer (4) onto the drive gear.
42.
Place the axial roller cage (3) onto the drive
gear.
43. Place disk (2) onto the drive gear.
44. Place cup spring (1) with the concave side
showing downwards onto the drive gear.
Fig. 180
