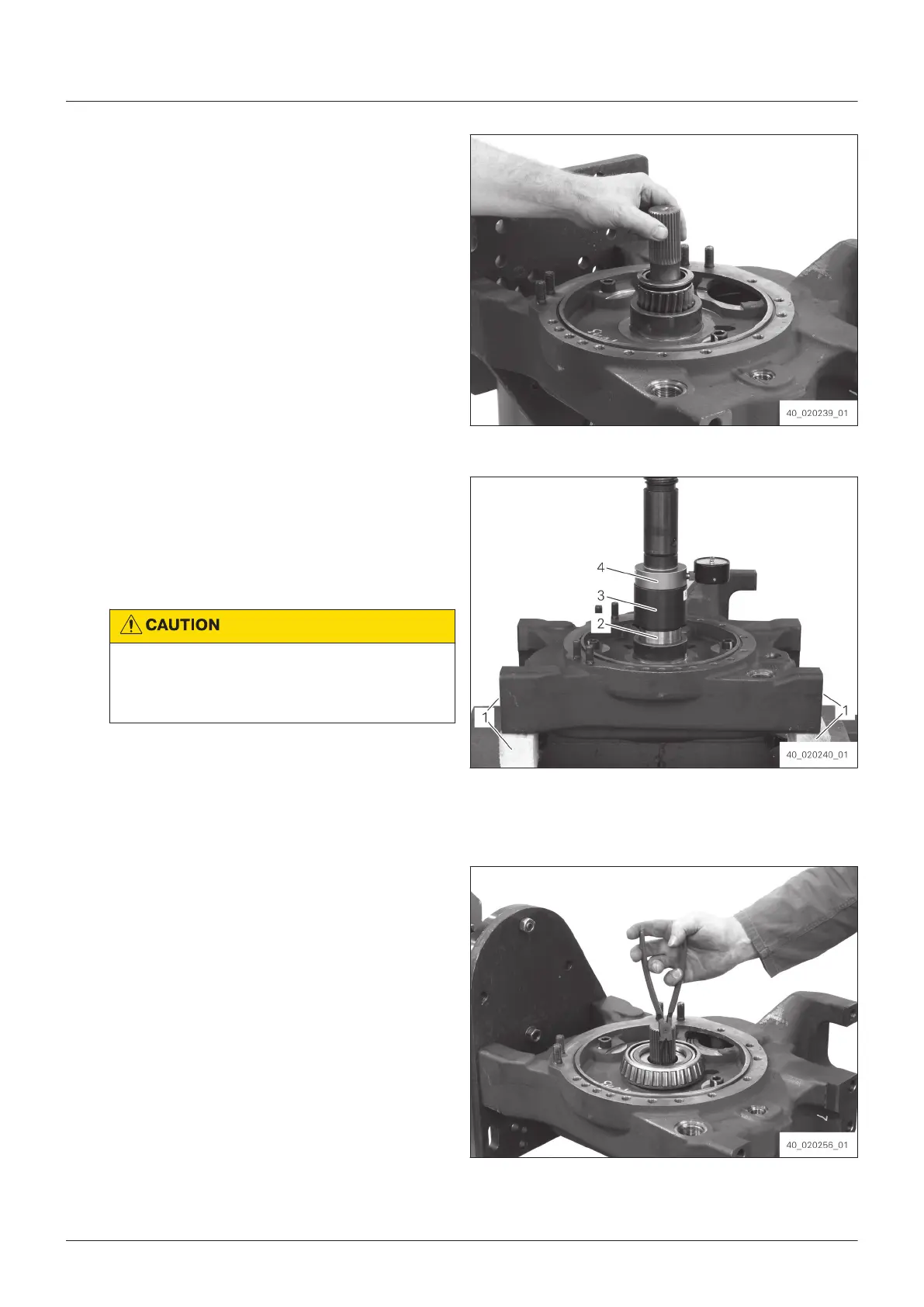

45. Insert the drive gear into the portal housing.
Ther
eby take up the shaft washer with the
pin on the drive gear.
Fig. 181
46. Evenly support the portal housing on the
h
ydraulic press from below at the edges (1).
47. Place the bush (2) with the groove showing
downwards onto the portal housing.
48.
Risk of crushing due to hydraulic tool.
Slight t
o moderate injury possible.
ð
Do not reach into danger area.
Press the bush (2) with max. 60 kN
by using
AA02.041.051 [Driver tool] (3) and
5870.700.004 [Load cell] (4) into the
housing.
Fig. 182
49. Insert retaining ring.
Fig. 183
Assembly
