ZIEHL-ABEGG Fcontrol Basic User Manual

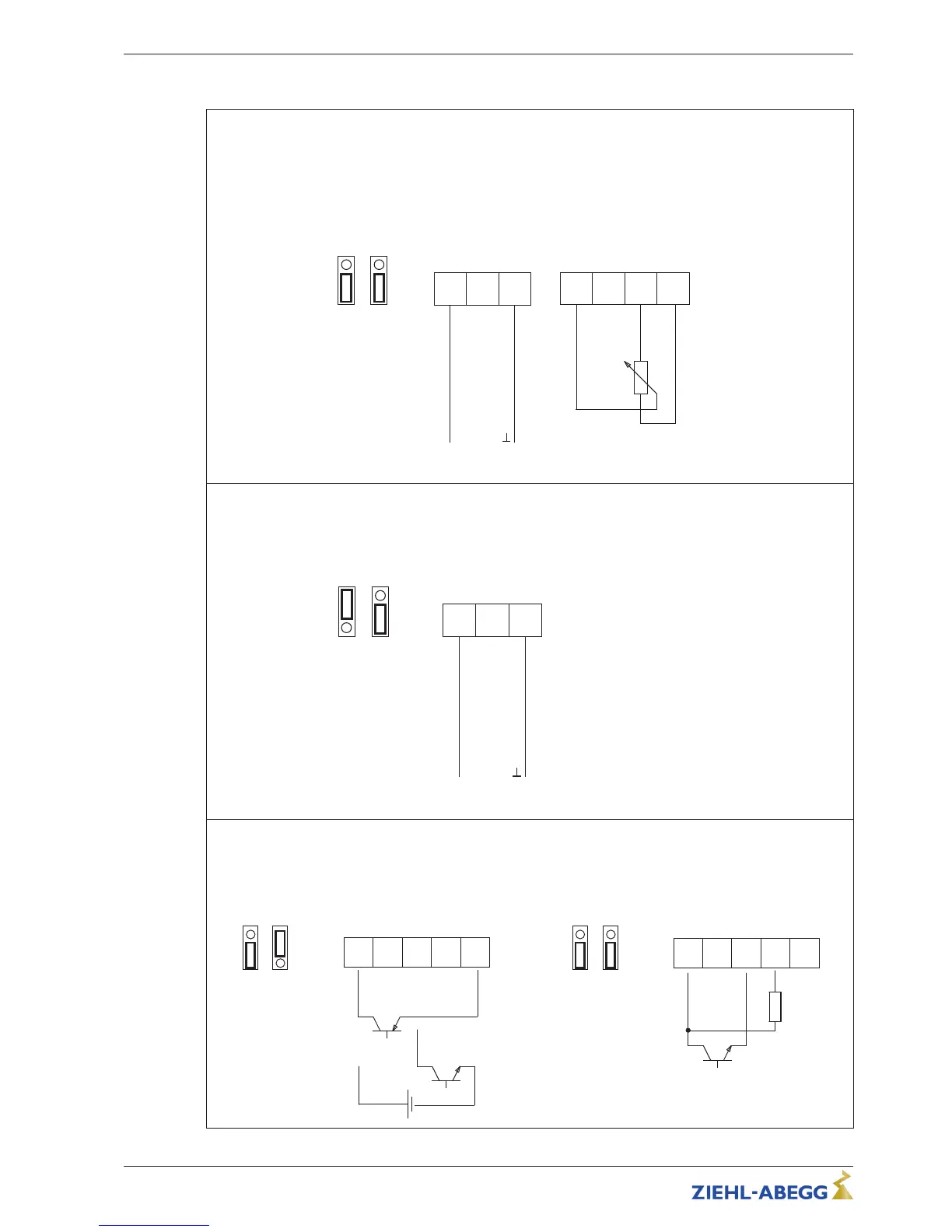

Possibilities for speed setting
0...10 V (factory setting)
Control via external setting signal 0...10 V
or
Speed setting by external potenziometer (10 kΩ) at terminals “+10 V” and “GND” pick of-off at terminal “E1”.
E1 D1 GND
0...10 V
+
Analog In 1
E1,1 E1,2
V
E1 D1 GND 10V
Analog In 1 10 V DC Out
10 kΩ
30.08.11
i_jumper_if_basic_0_10v.eps
0...20 mA
Control via external setting signal 0...20 mA
E1
D1 GND
0...20 mA
+
Analog In 1
E1,1 E1,2
mA
31.01.12
i_jumper_if_basic_0_20
0...100 % PWM
Control via external setting signal PWM
E1,1
E1,2
PWM
E1
D1 GND
10V
Analog In 1 10 V DC Out
31.01.12
i_jumper_if_basic_pwm.eps
24V
24 V DC Out
24 V
15...28 V
+
-
GND
E1
E1,1
E1,2
PWM
(10 V)
E1
D1 GND
10V
Analog In 1 10 V DC Out
24V
24 V DC Out
PWM
f = 1...10 kHz
10 kΩ
Operating Instructions Fcontrol Basic – model series FSDM2.5..50AM Electrical installation
