4.4 Cable inlet
Proceed as follows:
" Remove the terminal compartment cover.
" Depending on the housing model cut off necessary cable inlets respectively to the cable diameter.
Or alternative use cable inlet for cable glands. Metal sheet housings are supplied with stoppers.
Any cable ducts openings not used must be sealed!
" Strip and insert the cables properly.
" Attach cover for terminal compartment again carefully before start-up.

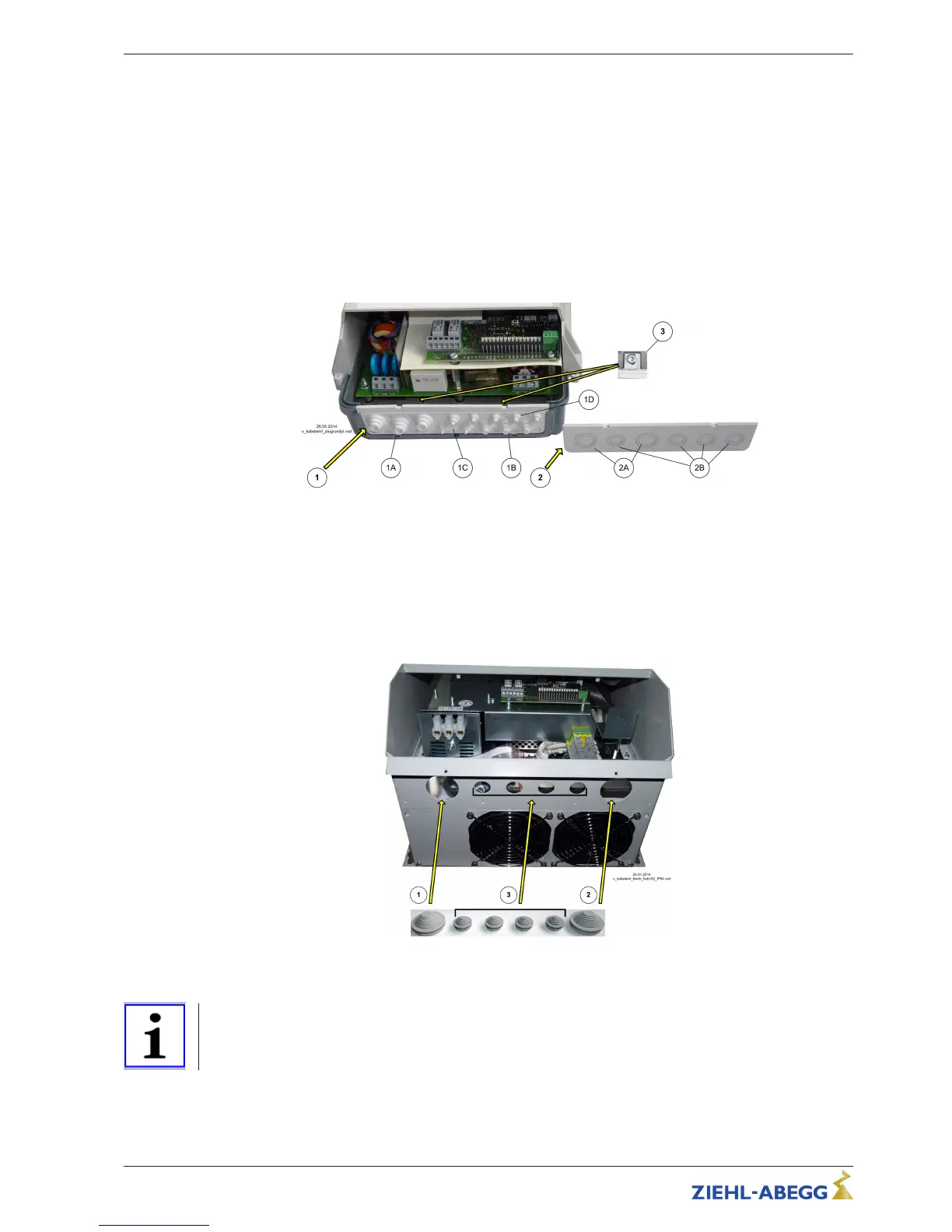

Housing with aluminum base plate
1 Cable inlet with step nozzles (factory installed)
1A 3 x max. 18 mm
1B 3 x max. 14 mm
1C 3 x max. 11 mm
1D 4 / 8 x max. 8 mm
2 attached cable inlet for cable glands
2A 17 / 21 mm
2B 12.5 / 17 mm
3 Fastening screws
Sheet metal housing
1 Inlet mains connection (40 mm)
2 Inlet motor connection (40 mm)
3 Inlet control cables (20 mm)
Information
•
Cable glands can be used alternatively (not included in delivery). The manufacturer’s specifications
for tightening torque and sealing area must be observed!
•
Openings which are not needed must be sealed!
Operating Instructions Fcontrol Basic – model series FSDM2.5..50AM Mounting
L-BAL-E174-GB 1704 Index 005 Part.-No.
12/49
