4.3 Fastening the device
The type of fastening and the number of fastening points are dependent on the housing design. All the
fastening points available must be used for safe fastening.
Proceed as follows:

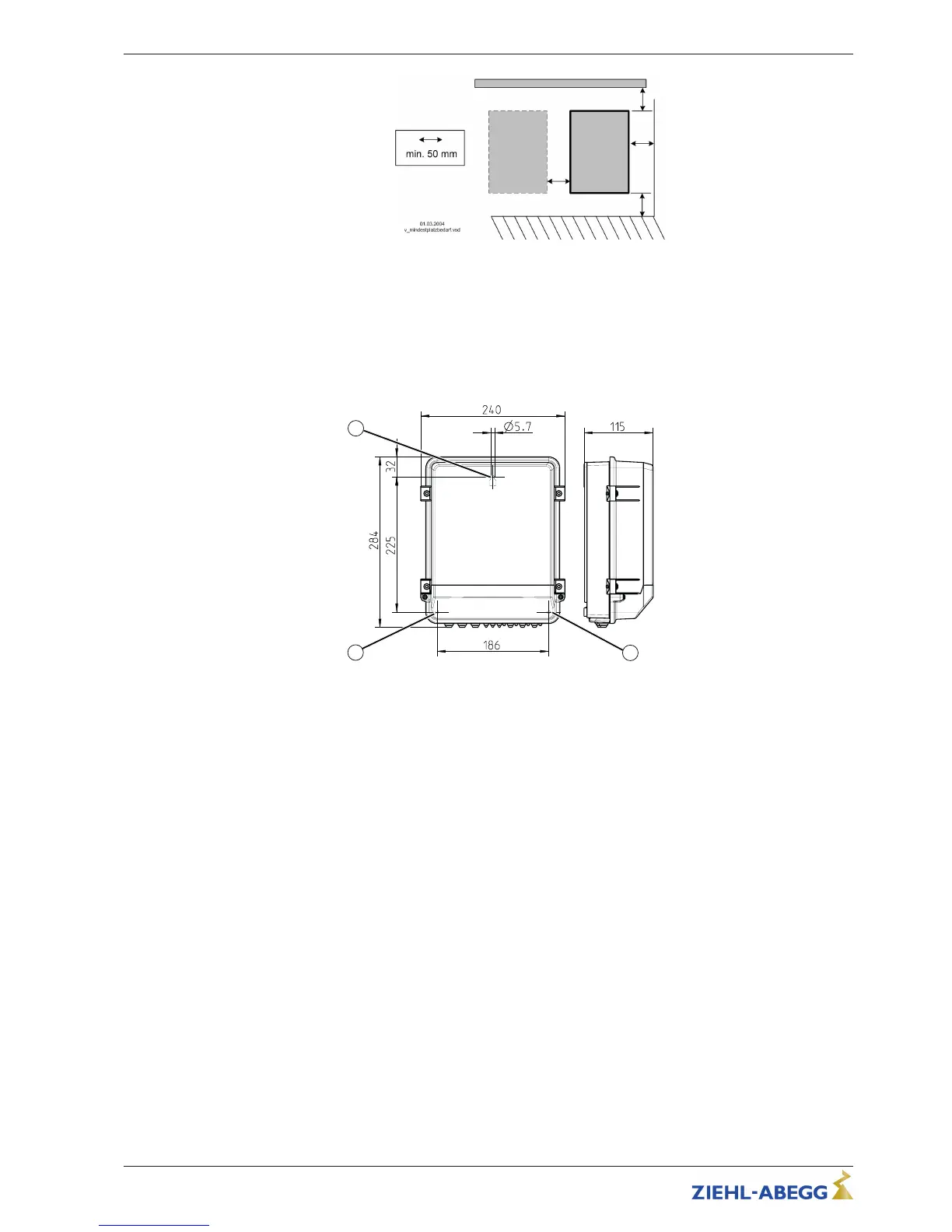

Type FSDM2.5M
Fastening at 3 points
" Drill fastening point “1”.
" Screw in flat-head screw up to a distance of approx. 2 mm and mount the device.
" Remove the terminal compartment cover.
" Align the device and mark the position of both lower fastening points “2” + “3”.
" Remove the device and drill the fastening points “2” + “3”.
" Remount the device and tighten the fastening point screws “2” + “3”.
Operating Instructions Fcontrol Basic – model series FSDM2.5..50AM Mounting
L-BAL-E174-GB 1704 Index 005 Part.-No.
10/49
