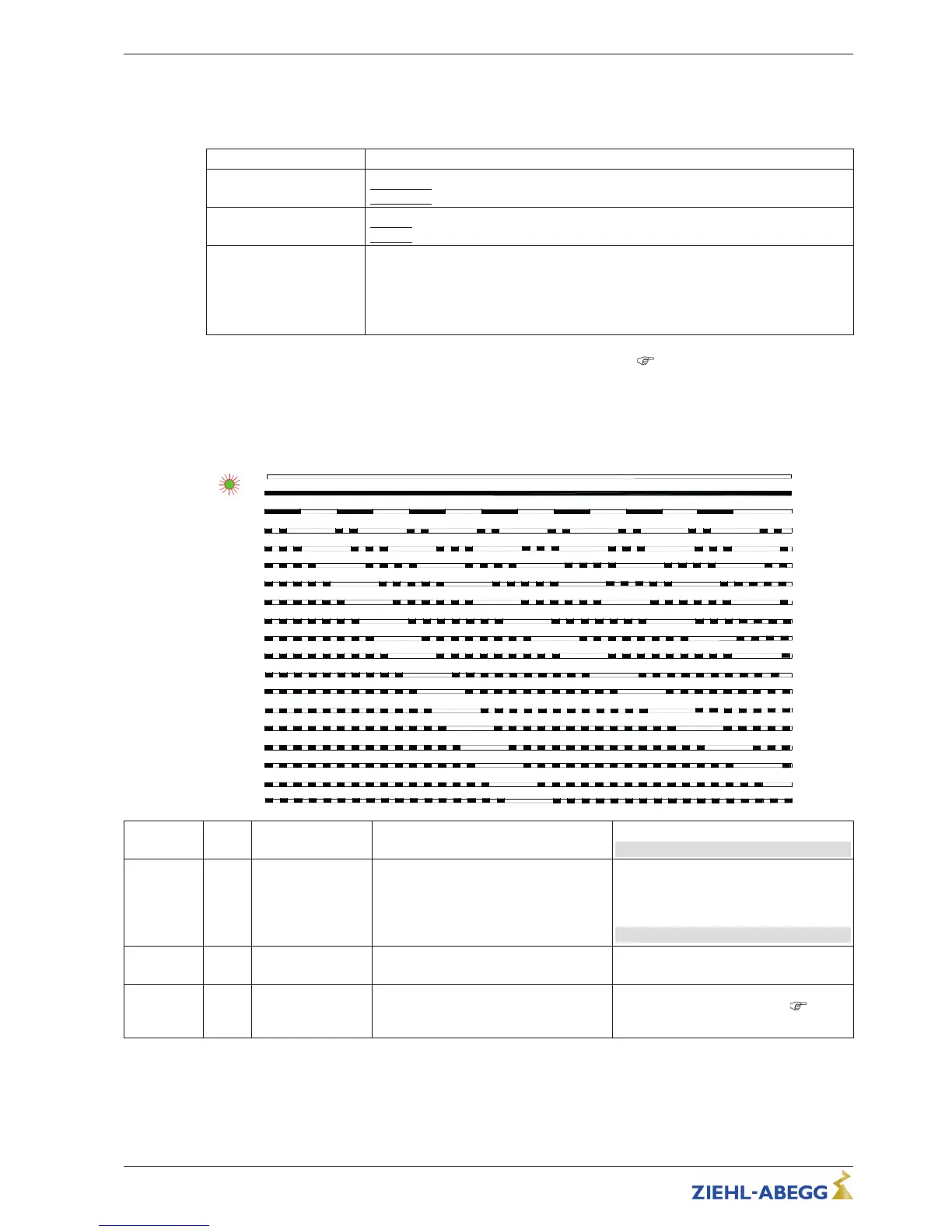

11 Events / Fault signals
11.1 Display and query of events and malfunctions
Events Menu group Events
The event memory is read out after pressing the P key.
| Read »»» |
0
Empty
Beispiel: keine vorliegenden Störungen
| Empty | = no entry = no event in the memory
19 1
Example line fault
Position 1 = latest event
The last 10 (1 - 10) events are saved. The desired position can be selected with the
▼+ ▲ keys.
19 = number of all previous faults
Line Fault
An error message appears alternately with the actual value display (
Diagnostic faults).
11.2 Messages: Fcontrol / Icontrol Basic
A momentary pending alarm or error message appears alternately with the standard display.
Operating conditions are indicated by the status LED with flashing code.
internal State LED
10.01.2014
v_flash_explain_1_17.vsd
ON
OFF
1 x
16 x
15 x
14 x
13 x
12 x
11 x
10 x
9 x
8 x
7 x
6 x
5 x
4 x
3 x
2 x
17 x
Display Code
Relay
K1
Explanation
Reaction of device
Adjustment
OFF
de-energized, 13 -
14 interrupted
No line voltage
In the event of a mains interruption the
unit switches “OFF” and automatically
“ON” when the voltage has been re-
stored.
Check line voltage and pre-fusing.
23.9 Hz
Frequency
ON
energized 13 - 14
bridged
Normal operation without fault
STOP 1
energized 13 - 14
bridged
No enable = OFF
Terminals “D1” - “24 V” (Digital In 1) not
bridged.
Switch off by external contact (
ena-
ble, device ON / OFF).
Operating Instructions Fcontrol Basic – model series FSDM2.5..50AM Events / Fault signals
L-BAL-E174-GB 1704 Index 005 Part.-No.
40/49
