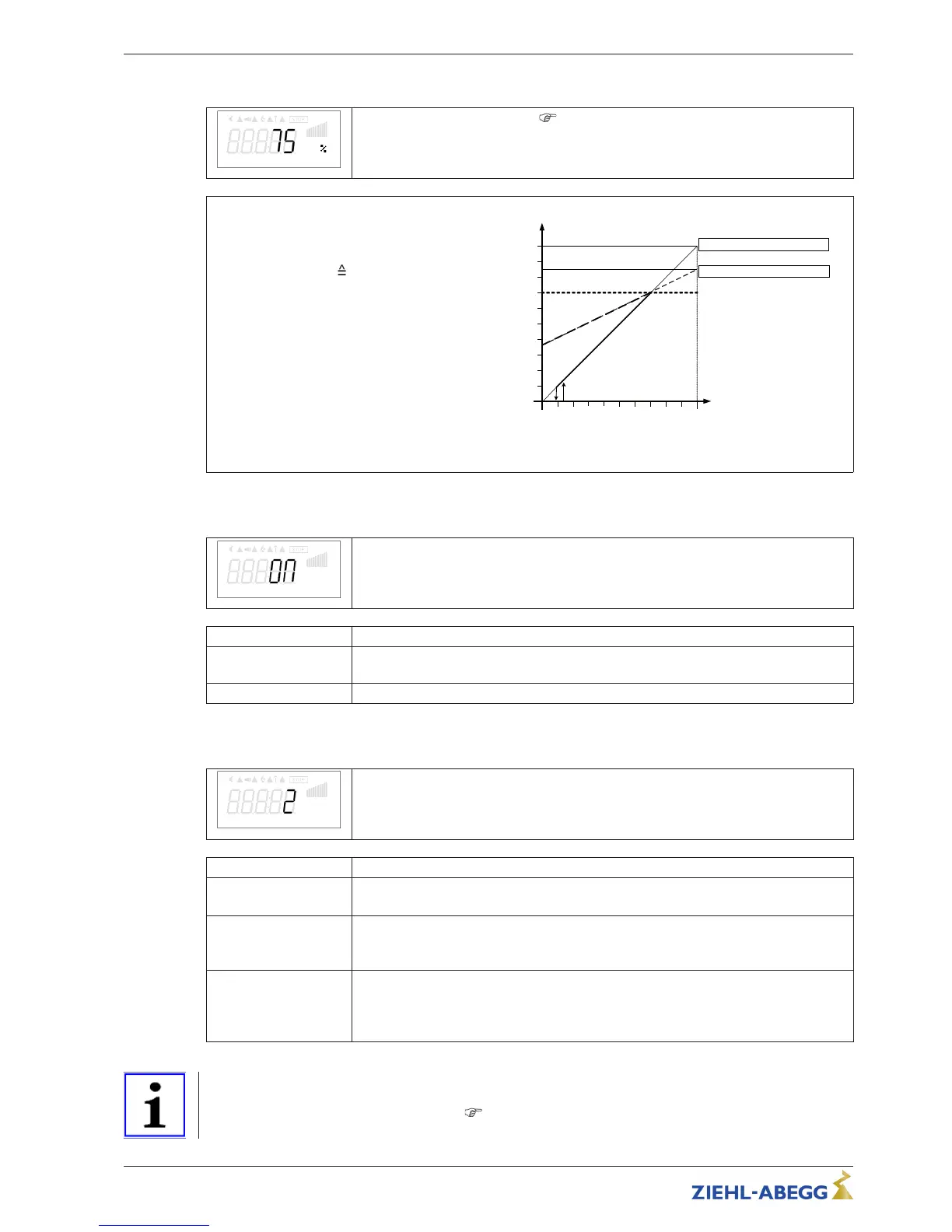

8.4.2 Limit
Limit
After allocation of a digital input (
IO Setup) an adjustable limitation of the modulation
can be activated via a digital input.
“Limit value” = max. possible modulation (e.g.
speed reduction during night operation by
time switch).
Setting range: 0 - 100 %
Factory setting: 75 %
max. modulation, i.
e. no limit.
Limit (idealized principle diagram)
n [%] Motor speed
L Limit
Si Speed setting signal
8.4.3 LED Mode
LED Mode
LED Mode
Only for versions with integrated status LED!
Setting
Function
ON
Status LED in ECblue active i.e. operating conditions are indicated by flash code
(factory setting).
OFF
Status LED not active, i.e. always OFF.
8.4.4 PIN-Accesslevel
PIN-Accesslevel
PIN-Accesslevel
The PIN-Accesslevel determines for which setting ranges a PIN must be entered.
Setting
Function
2
Factory setting
All menu groups are visible, settings are possible without a PIN.
1
•
The menu group “Setting” is free, i.e. changes are possible without a PIN.
•
PIN 0010: for changes in the menu groups: “Controller Setup”, “IO Setup” and
“Motor Setup” (these menu groups are not visible without a PIN).
0
All settings are only possible after entering a PIN.
•
PIN 1234 for changes in the menu group: “Setting”
•
PIN 0010: for changes in the menu groups: “Controller Setup”, “IO Setup” and
“Motor Setup” (these menu groups are not visible without a PIN).
Information
Changes for the PIN protection which effect a reduced access right only become active after switching
off the device or executing the “Reset” (
Start menu group) function.
Operating Instructions Fcontrol Basic – model series FSDM2.5..50AM Programming
L-BAL-E174-GB 1704 Index 005 Part.-No.
26/49
