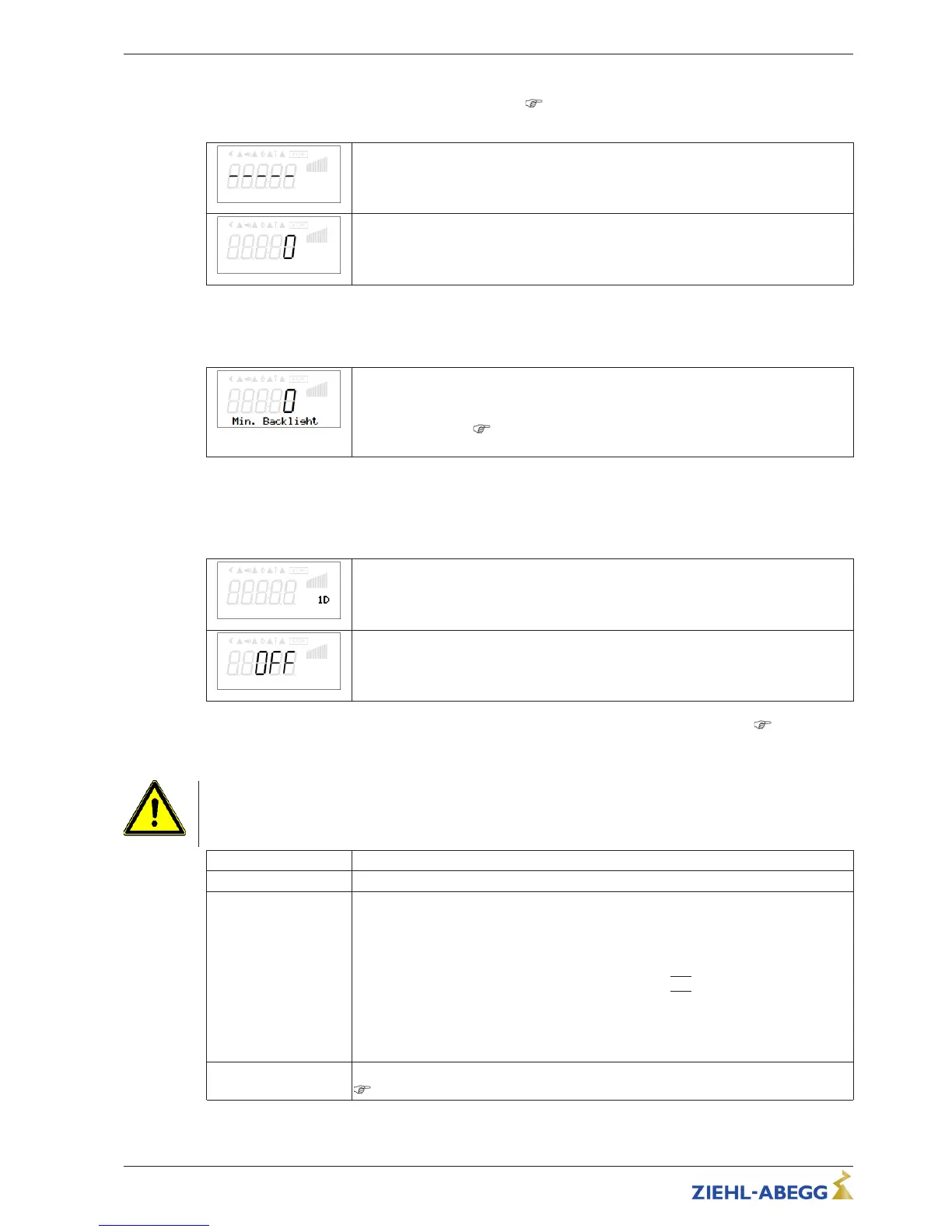

8.4.5 Wireless Communication
Only with add-on module AM-MODBUS- W active
oprating instructions (operation with add-on
module not possible at the moment).
Network key
Network key
RF channel
RF channel
8.4.6 Min. Backlight
Setting options depending on the version of the software available!
Min. Backlight
Backlight setting for the display, which is activated after approx. 1 minute without
pressing a key.
Setting range: 0 - 10
min. - max. lighting intensity
Factory setting: 0
8.5 Menu group IO Setup
8.5.1 Digital inputs “D1” (“E1” *)
D1 Function
Different functions can be assigned to the digital inputs “D1” and “E1”*.
Activation via floating contacts (a low voltage of approx. 24 V DC is connected).
“D1” is programmed for the “Enable” function at the factory.
D1 Inverting
For inverting switch to “ON”.
The input inversion is set at the factory to “OFF” (when a function is programming).
* If the analogue input “E1” is not required for specifying the fan speed, this can be used as a digital input (
E1 function).
The same functions can be assigned for “E1” as for “D1”.
Attention!
Never apply line voltage to the digital input!
Function Description
OFF No function
1D Enable ON / OFF (factory setting)
Remote ON/OFF (electronic disconnection) and Reset after a motor malfunction via
floating contact. The power section is electronically disconnected. Operation of the
device is still possible after pressing the “Esc” hotkey combination in switched-off
condition. Signal- in and outputs remain active.
A programmed alarm relay (factory set “K1 function” =
|
2K
|
) does not report the
switch-off.
Attention!
No disconnection (no potential isolation in accordance with VBG4 §6) in remote control
of the device!
3D Limit ON / OFF
Controller Setup / Limit
Operating Instructions Fcontrol Basic – model series FSDM2.5..50AM Programming
L-BAL-E174-GB 1704 Index 005 Part.-No.
27/49
