ZIEHL-ABEGG Fcontrol Basic - Programming; Menu Group: Setting

8 Programming

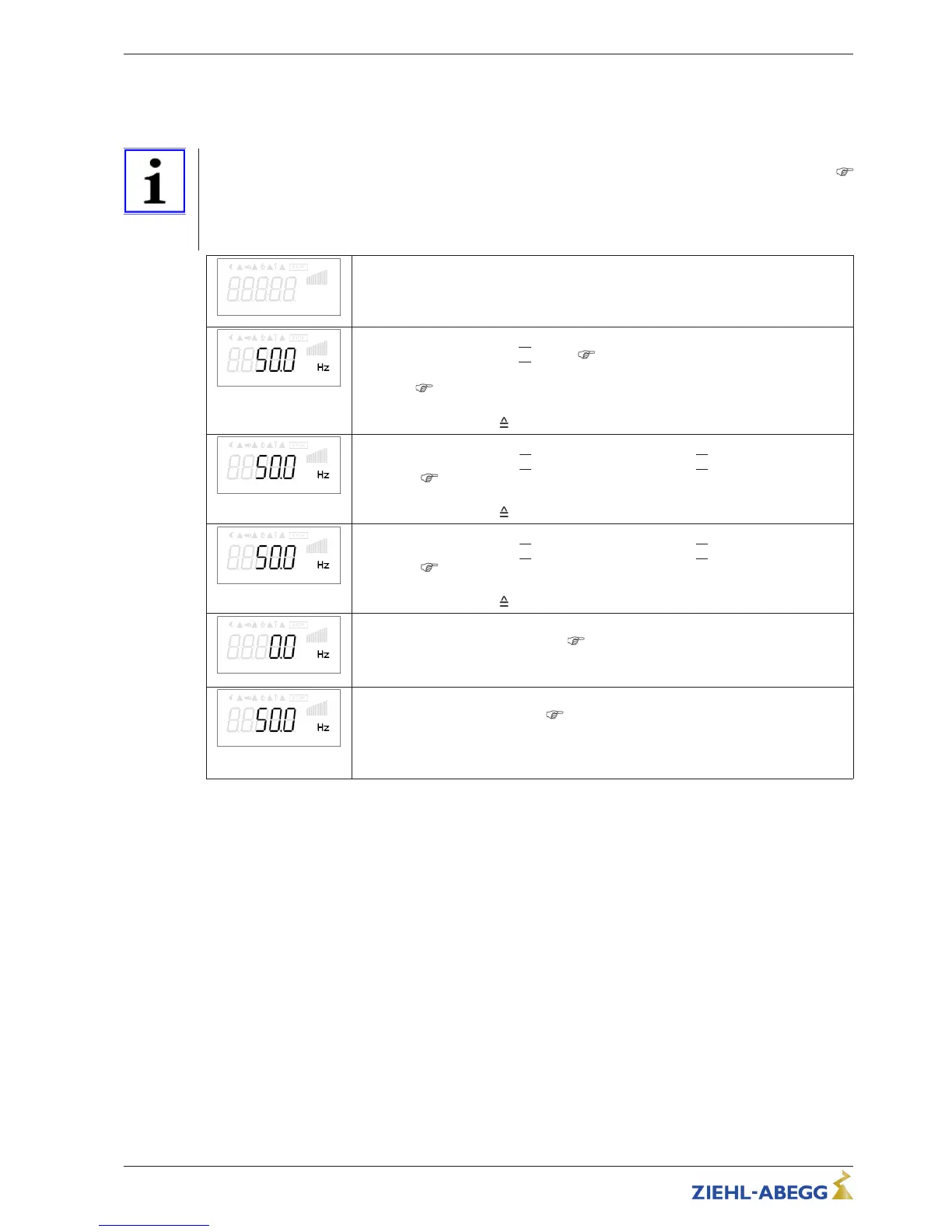

8.1 Menu group Setting
Information
•
Factory setting: Activation by external signal (0 - 10 V / PWM) at input “E1” (control mode = 0
Controller Setup). I.e. the following settings “Set Internal1”, “Set Internal2”, “Set Intern3” are not
active!
•
The following factory settings specifications are not binding, these values can differ depending on
the software version and customer-specific pre-setting.
Setting
Setting
Set Internal1
Set Internal1
Setting only in Controlmode
| 4 | active ( Controller Setup).
Via the inputs “D1” / “E1” it is possible to switch to “Default Internal2” or “Default
Internal3” (
IO Setup).
Setting range manual speed setting: “Min. Speed” - “Max. Speed”
Factory setting: 50.0 Hz (
Setting “Max. Speed”)
Setpoint2
Setpoint2
Setting only in control mode
| 6 | active only in control mode | 4 | , if activated via inputs
“D1” / “E1” (
Controller Setup / IO Setup).
Setting range manual speed setting: “Min. Speed” - “Max. Speed”
Factory setting: 50.0 Hz (
Setting “Max. Speed”)
Set Internal3
Set Internal3
Setting only in control mode
| 6 | active only in control mode | 4 | , if activated via inputs
“D1” / “E1” (
Controller Setup / IO Setup).
Setting range manual speed setting: “Min. Speed” - “Max. Speed”
Factory setting: 50.0 Hz (
Setting “Max. Speed”)
Min. Speed
Min. Speed (basic speed only when needed)
Setting range: 0... “Max. Frequency” (
Motor Setup).
Factory setting: 0.0 Hz
Active in every control mode, priority by “Max. speed”.
Max. Speed
Max. Speed (speed limitation only when needed)
Setting range: “Max. Frequency” (
Motor Setup)... “Min. Speed”
Factory setting: 50.0 Hz
Active in every control mode!
Settings by “Max. frequency” are possible but are not made!
