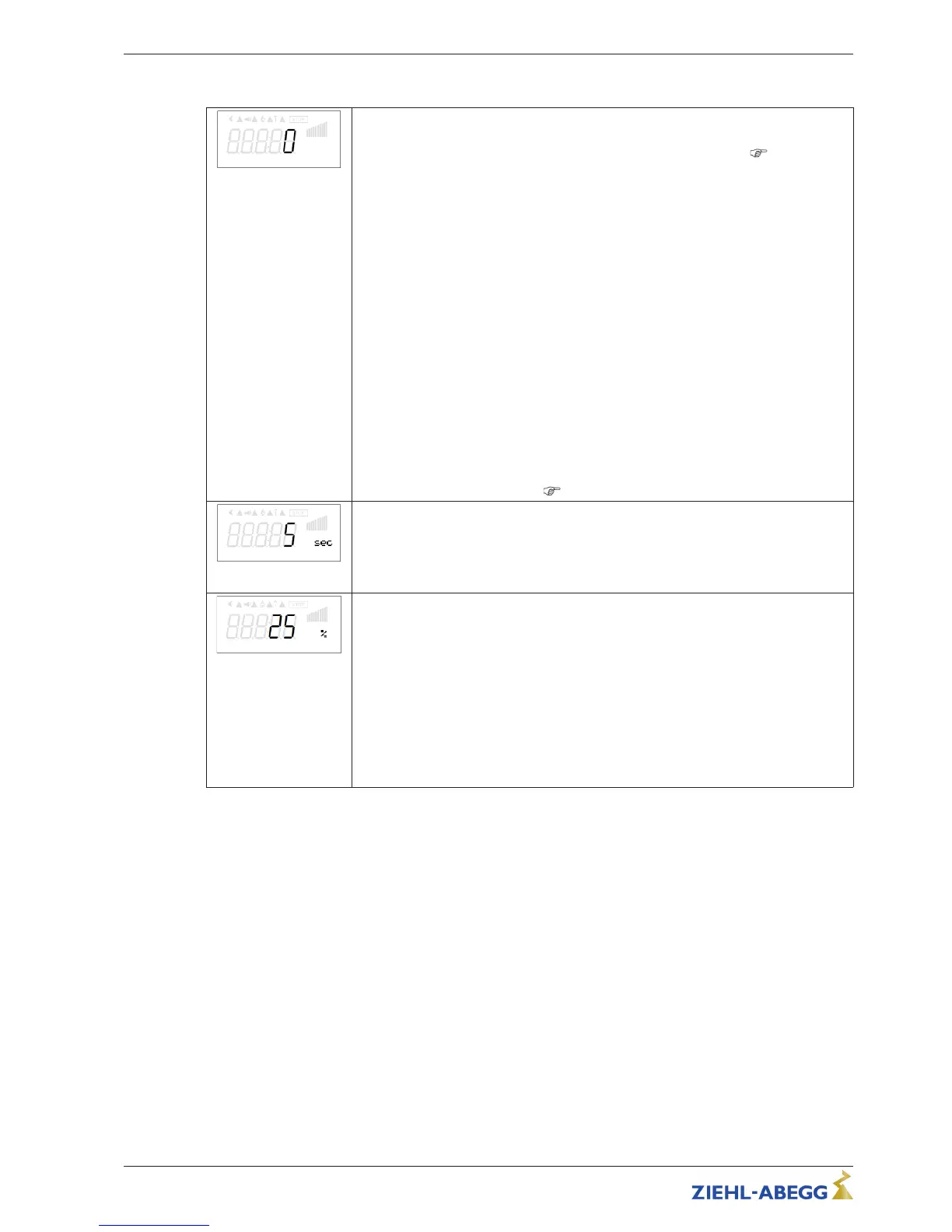

8.6.7 Setting brake function

DC brake mode

Setting function of DC-brake for frequency inverters.

For units that come with a factory engaged DC brake mode (if extant,

DC brake

mode setting), simultaneously activating the “DC brake mode ” only makes sense in

exceptional cases.

0 = no brake function (factory setting).

1 = brakes before start (before modulation is returnd)

If, under certain circumstances, the modulation switches back on while the motor is still

rotating fast, this can result in a re-supply of the inverter’s “overcurrent disconnection”.

The brake function can be activated to prevent this. This is then always active for an

adjustable period before triggering starts. I.e., the brake function is always initiated

before modulation after has it returned to “0”. The suitable adjustments depend on the

centrifugal force of the motor and the conditions in the installation.

2 = Special function, brakes before stop (as soon as modulation “0”).

The motor does not run out up to stop. The motor is braked actively, as soon as no

modulation is present (Setpoint = “0” or Enable = “OFF”) .

Test required. The “min. speed” adjustment must be set to “0”.

Attention! With the frequently one behind the other following DC bracings it can come

to strong heating up of the motor.

To prevent any overheating, motor protection in the form of a temperature limiter

installed in the motor is required (

motor protection).

DC brake time

Maximal length of DC-brake for frequency inverters.

If the braking is activated, the d.c. brake torque is active for this time.

Setting range: 0...250 sec.

factory setting: 5 / 10 sec. (depending on device type)

DC brake level

Direct-current level, generated for braking. The higher this value, the greater the

braking effect.

The setting “DC brake level” refers in % to the value set in “MotorRated Curr.”.

Setting range: 25, 50, 75, 100 %

Factory setting: 25 %

The setting is dependent on the size of the fan/motor. Attention! Too high values can

lead to a considerable braking effect.

Same“setting”affects also the function Motorheating.

Operating Instructions Fcontrol Basic – model series FSDM2.5..50AM Programming

L-BAL-E174-GB 1704 Index 005 Part.-No.

34/49
