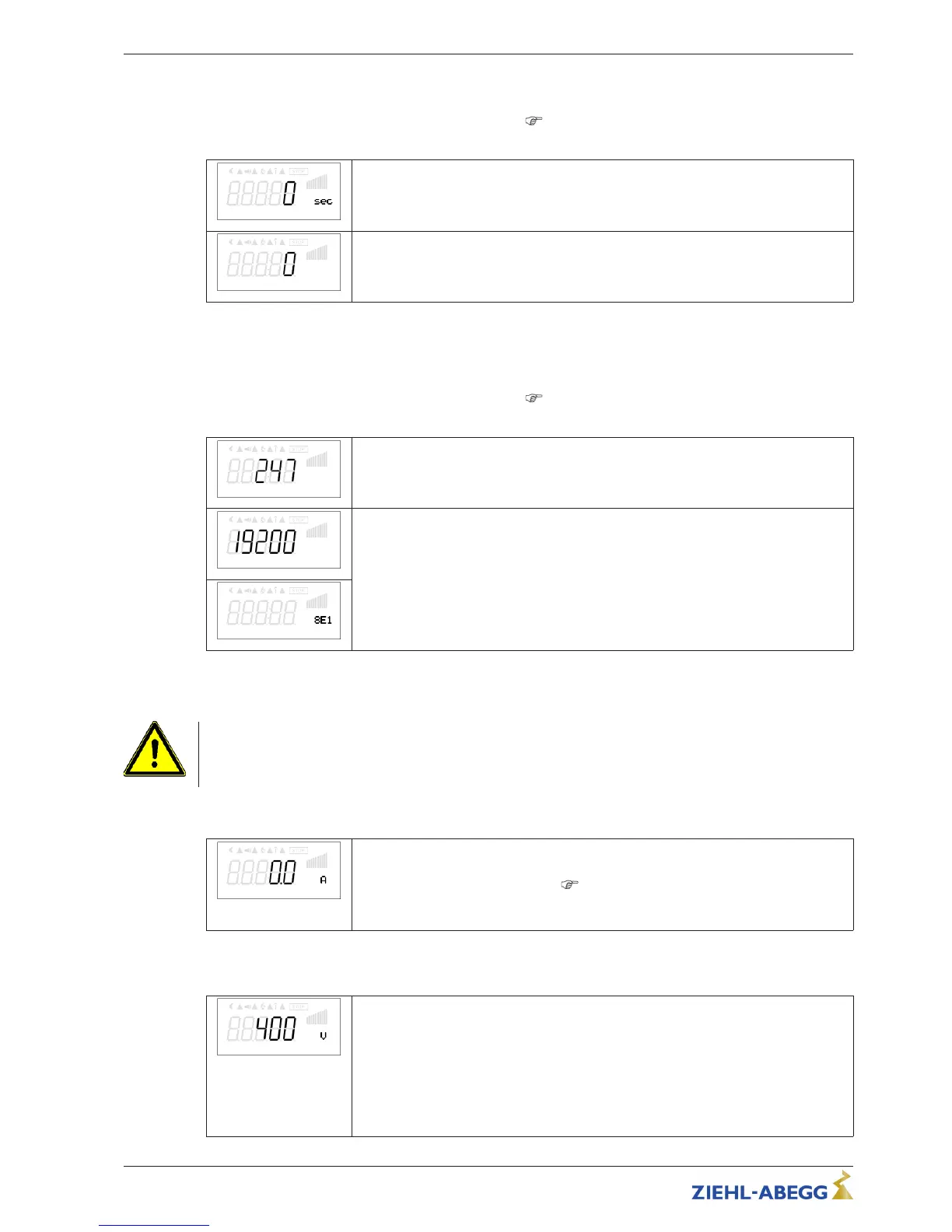

8.5.4 MODBUS communication watchdog
The MODBUS communication watchdog defines the behaviour in case of a communication fault.
Only with add-on module AM-MODBUS- W active
oprating instructions (operation with add-on
module not possible at the moment).
Watchdog Time
Watchdog Time
Watchdog Mode
Watchdog Mode
8.5.5 Networking via MODBUS
It is possible to network several devices with each other. The device uses the MODBUS-RTU as the
protocol for the RS-485 interface.
Only with add-on module AM-MODBUS- W active
oprating instructions (operation with add-on
module not possible at the moment).
Bus Address
Bus Address
Com. Baudrate
Com. Baudrate
Com. Mode
8.6 Menu group “Motor Setup”
Attention!
Settings for U/f characteristic may only be made when no motor modulation is present!
8.6.1 Setting motor rated current
MotorRatedCurr.
MotorRatedCurr.
Possible setting for the motor rated current.
The setting for the “DC brake level” (
setting brake behaviour) refers to this setting.
Setting range: 0.0...device rated current / A
Factory setting: device rated current
8.6.2 Setting motor rated voltage
MotorRatedVolt.
MotorRatedVolt.
When commissioning, you must set the motor to the rated voltage stated on the rating
plate.
An adaptation can be made if the motor rated-voltage as the applied mains voltage is
lower (e.g. 3 ~ 230 V motor on 3 ~ 400 V mains).
Verify the output voltage using suitable measuring instruments.
Setting range: 0...500 V
Factory setting: 400 V
Operating Instructions Fcontrol Basic – model series FSDM2.5..50AM Programming
L-BAL-E174-GB 1704 Index 005 Part.-No.
30/49
