ZIEHL-ABEGG Fcontrol Basic User Manual

Type FSDM5...16M (FSDM22M)

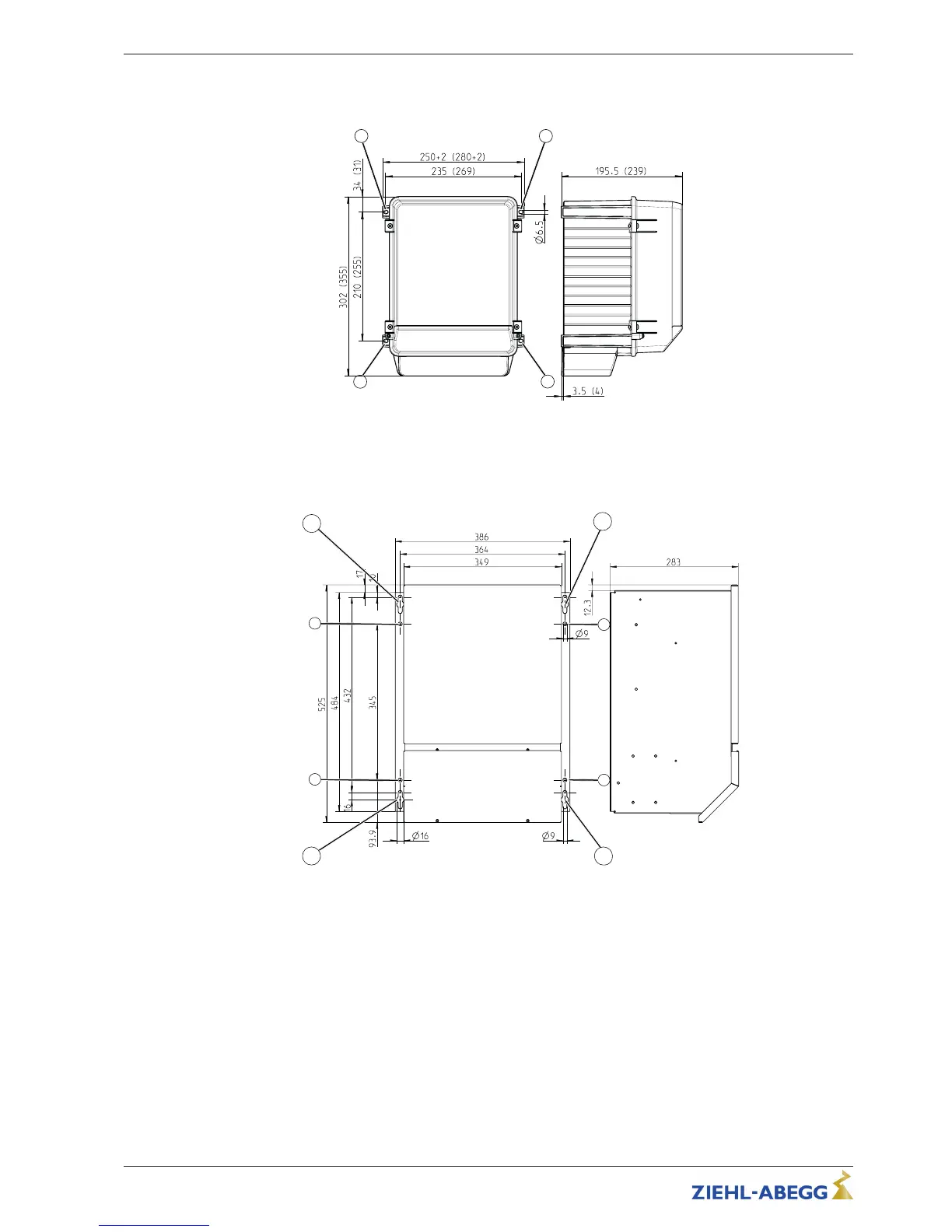

Fastening at 4 points
GM00005A_M
15.12.2015
1 2
4
3
" Drill fastening points “1” - “4”.
" Fasten device with screws.
Type FSDM32...50M
Fastening at 8 points
GM00002A_M
15.12.2015
1
7
2
34
5
6
8
" Drill 8 fastening points.
" Screw in fastening point screws “1” - “4” up to a distance of approx. 5 mm and mount the device.
" Tighten fastening point screws “1” - “4”
" Screw in fastening point screws “5” - “8” and tighten.
Operating Instructions Fcontrol Basic – model series FSDM2.5..50AM Mounting
L-BAL-E174-GB 1704 Index 005 Part.-No.
11/49
