FSDM5/7.5/8.5

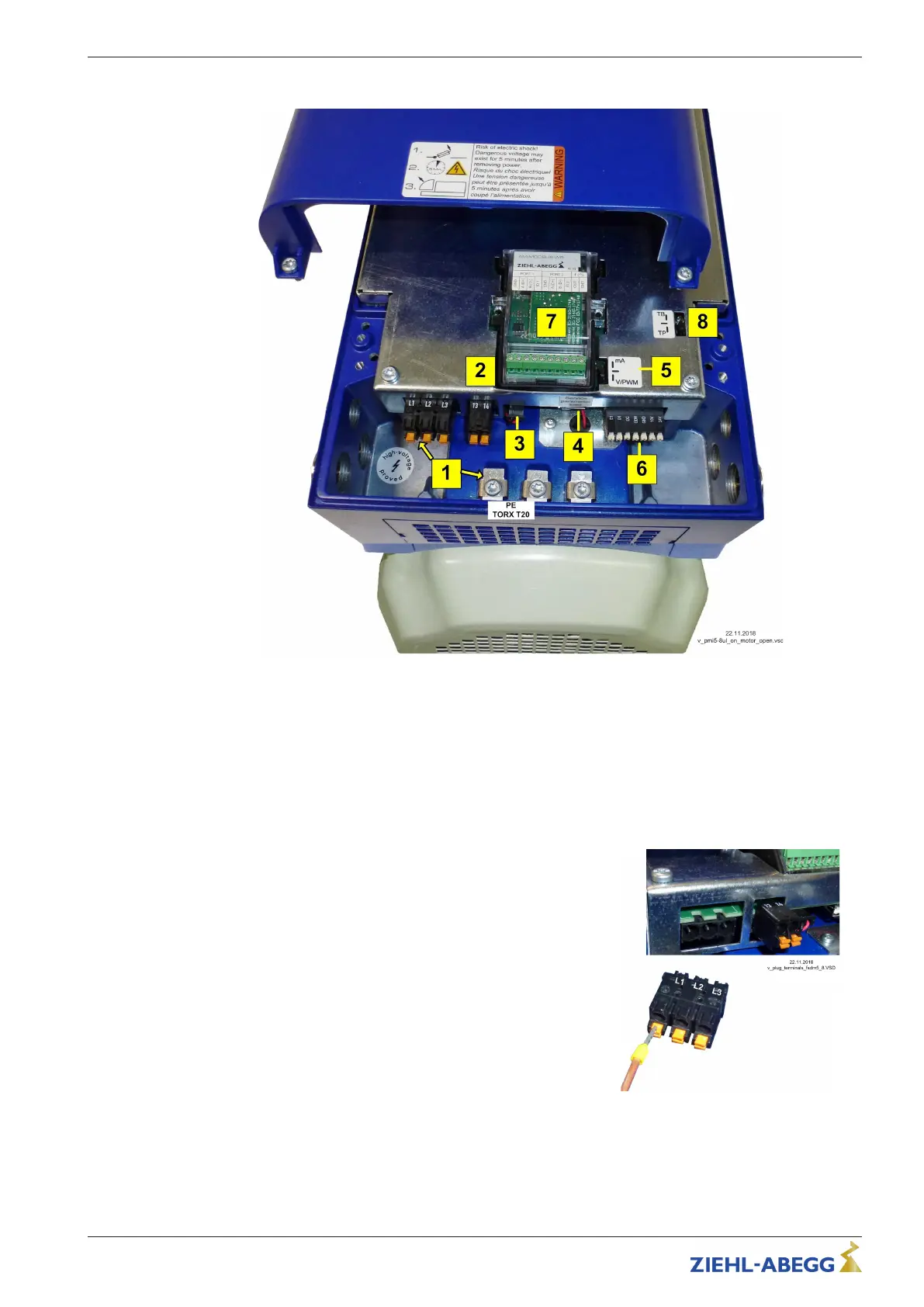

1 Line
Tightening torque protective earth connection (M4 Torx T20): 2 Nm / 17.7 Lb In
2 Indication relays
3 Connection internal cooling fan
4 Parameter interface for ZAstick
5 Jumper “E1” for input signal
6 Modulation
7 Option add-onmodule
8 Jumper for motor protection by thermostats “TB” or thermistors “TP” (factory setting)
For the types FSDM5/7.5 /8.5 the connection to connectors is
made with “PUSH IN” connection technology.
Rigid conductors and conductors with wire end ferrules can be
plugged directly into the terminal without tools.
If necessary for connection, you can remove the connectors
from the circuit board. When re-inserting the connectors, make
absolutely sure that you can hear a click.
Connectors with “PUSH IN” connection
technology
Operating Instructions PMIcontrol Basic-M – model series FSDM5...46 Electrical installation
L-BAL-E300-GB 1905 Index 001 Part.-No.
26/48
