Caution!
Make sure that the connectors for mains, relays and control are firmly seated before start-up.

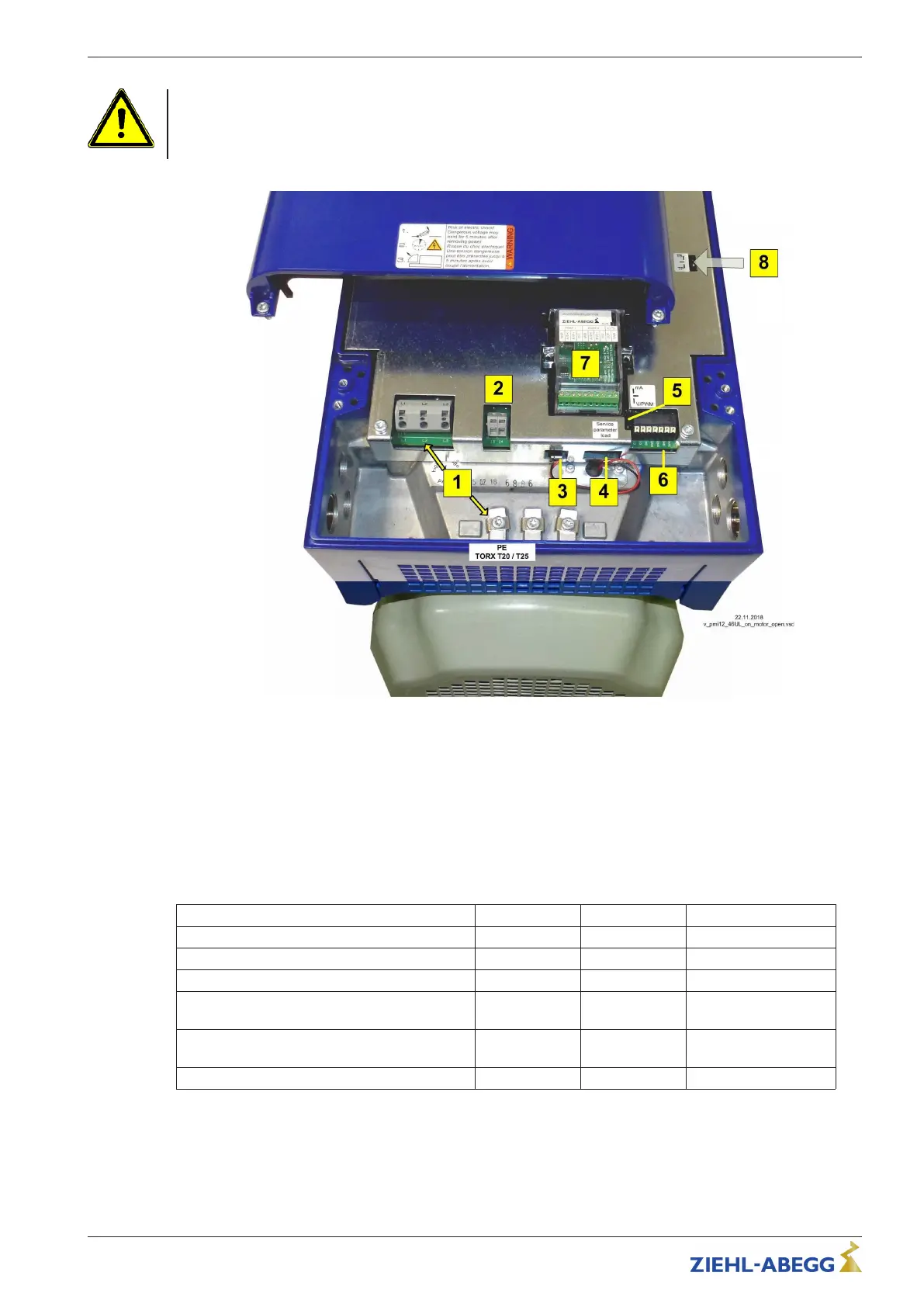

FSDM12/17/25/32/39/46
1 Line
FSDM12/17 tightening torque protective earth connection (M4 Torx T20): 2 Nm / 17.7 Lb In
FSDM25/32/39/46 tightening torque protective earth connection (M5 Torx T25): 4 Nm / 35.5 Lb In
2 Indication relays
3 Connection internal cooling fan
4 Parameter interface for ZAstick
5 Jumper “E1” for input signal
6 Modulation
7 Option add-onmodule
8 Jumper for motor protection by thermostats “TB” or thermistors “TP” (factory setting)
Connection data terminals mains connection
FSDM5/7.5/8.5 FSDM12/17 FSDM25/32/39/46
Stripping length 10 mm 8...9 mm 12...13 mm
Max. conductor cross-section solid 1.5 mm
2
4 mm
2
16 mm
2
Max. conductor cross-section flexible 2.5 mm
2
4 mm
2
10 mm
2
Max. conductor cross-section flexible with wire
end ferrule
2.5 mm
2
2.5 mm
2
10 mm
2
Max. conductor cross-section flexible with wire
end ferrule and collar
2.5 mm
2
2.5 mm
2
10 mm
2
Max. conductor cross-section AWG AWG 12 AWG 12 AWG 6
Operating Instructions PMIcontrol Basic-M – model series FSDM5...46 Electrical installation
L-BAL-E300-GB 1905 Index 001 Part.-No.
27/48
