SW3
GIGABIT/FAST ETHERNET SWITCH TYPE SW3 (DIN) 20/122
USER GUIDE - M0SW3D1905Iv04 - V04 May 2019
The SW3 may have 8 RJ-45 connectors or 4 RJ-45 connectors and 4 MT-RJ or, upon
request, LC or ST connectors. It also has two Gigabit Ethernet SFP bays.

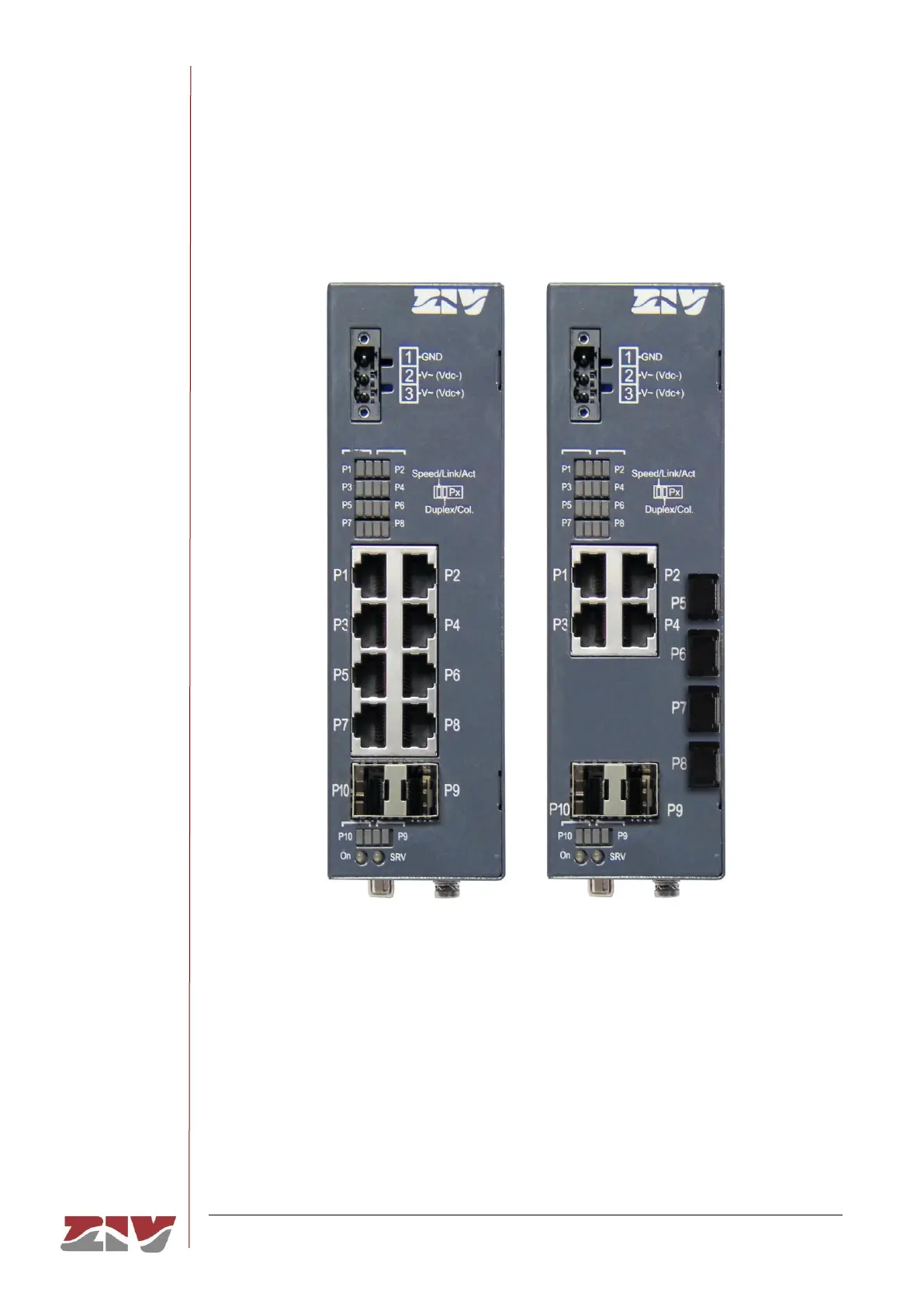

FIGURE 8 Front view of the SW3
Sections 2.1 to 2.6 give the electrical characteristics of the connectors and their use.
As shown in FIGURE 9, there is a maintenance connector, identified as SRV, at the bottom
of the SW3, for accessing the equipment through a console.
