GIGABIT/FAST ETHERNET SWITCH TYPE SW3 (DIN) 19/122
USER GUIDE - M0SW3D1905Iv04 - V04 May 2019
The SW3 is powered with a nominal voltage of 48 V
DC
isolated (10.5-72 V
DC
) or allows DC
and AC supply-voltage operation (36-360 V
DC
, 80-265 V
AC
), through the connector shown in
FIGURE 7.
The female connector supplied with the equipment is suitable for rigid or flexible conductors
of up to 2.5 mm
2
.
An earth connection is available, see FIGURE 7. When using the multirange
model, this connection must be made before connecting any other power-supply
cable.
In the isolated 48 V
DC
model this connection is not compulsory but it is strongly
advisable.

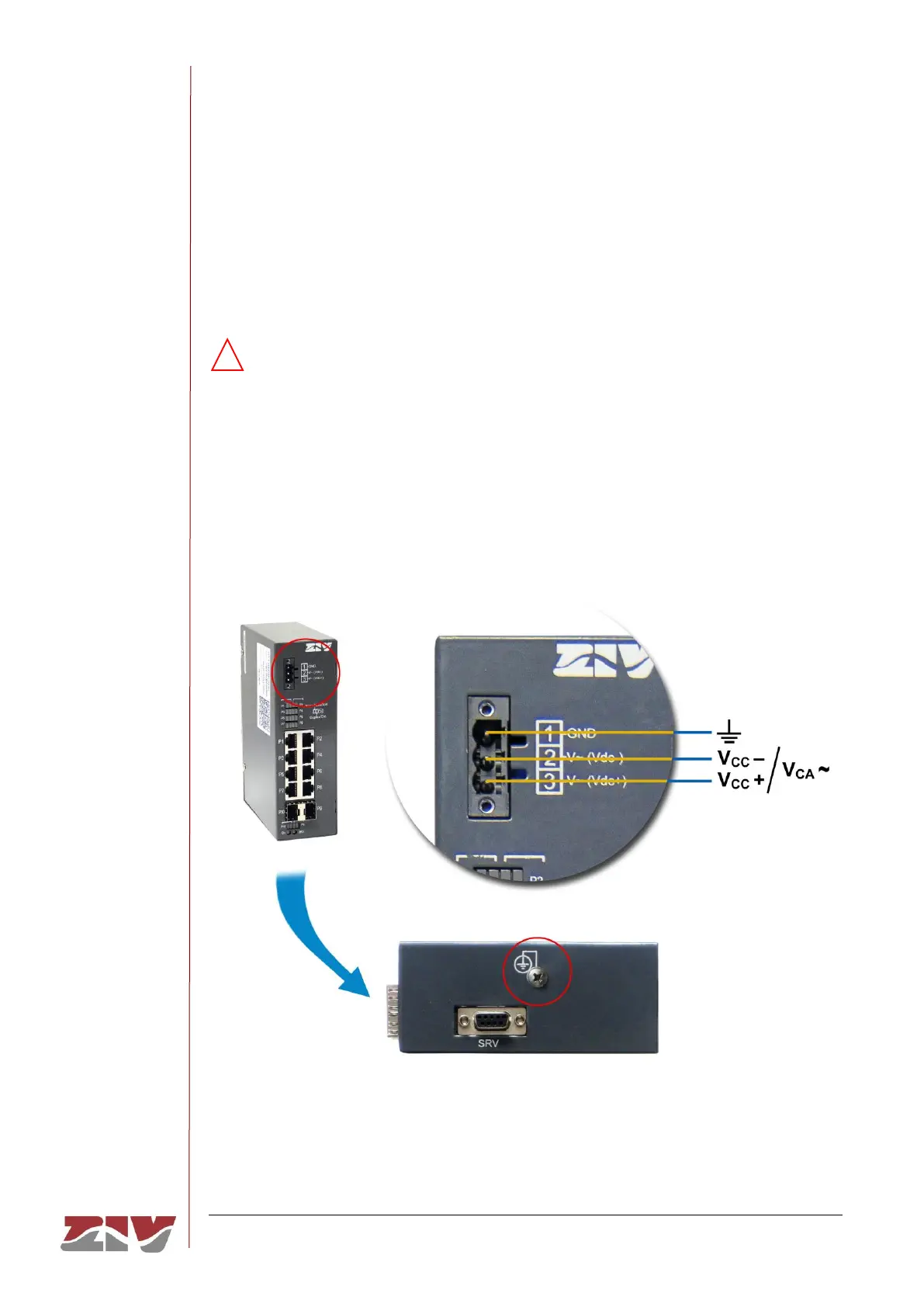

FIGURE 7 Location of the power-supply connector and earth connection

