SW3
GIGABIT/FAST ETHERNET SWITCH TYPE SW3 (DIN) 45/122
USER GUIDE - M0SW3D1905Iv04 - V04 May 2019

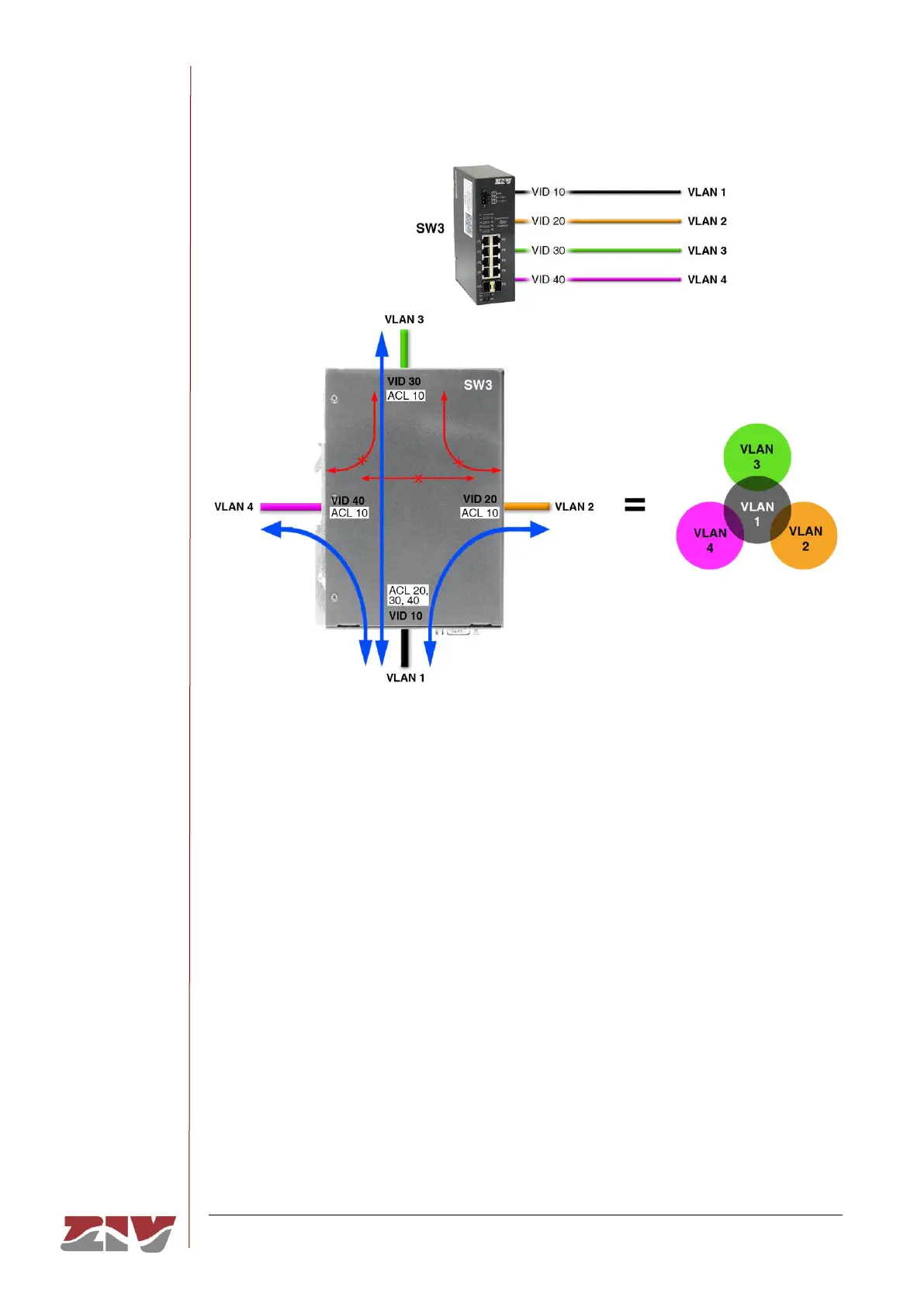

FIGURE 24 Example for using the Overlapping Enable parameter
4 VLANs with common ports and UNTAGGED clients = OVERLAPPING ENABLE ACTIVATED
VLANs:
The individual configuration parameters for each VLAN are:
• #. Indicates the position in the table.
• Name. A mnemonic descriptive field available to users.
• VID. It sets the VLAN identifier. Valid values are 1 to 4095.
• PRI Override. This sets whether the priority of the frames received in the ports
assigned to the VLAN VID should be overridden in the PRI field value (enabled
option), or whether it should be maintained (Disabled option). This field does NOT
affect the ports in which the VLAN function parameter is configured as trunk.
• PRI. If the PRI Override option is enabled, the original priority of the frames received
with a tag will be modified with the selected value.
