SpeedFace M1/M2
User Manual
Page | 70 Copyright©2020ZKTECO CO., LTD. All rights reserved.
13 Connect to ZKBioAccess Software
13.1 Set the Communication Address
Device side

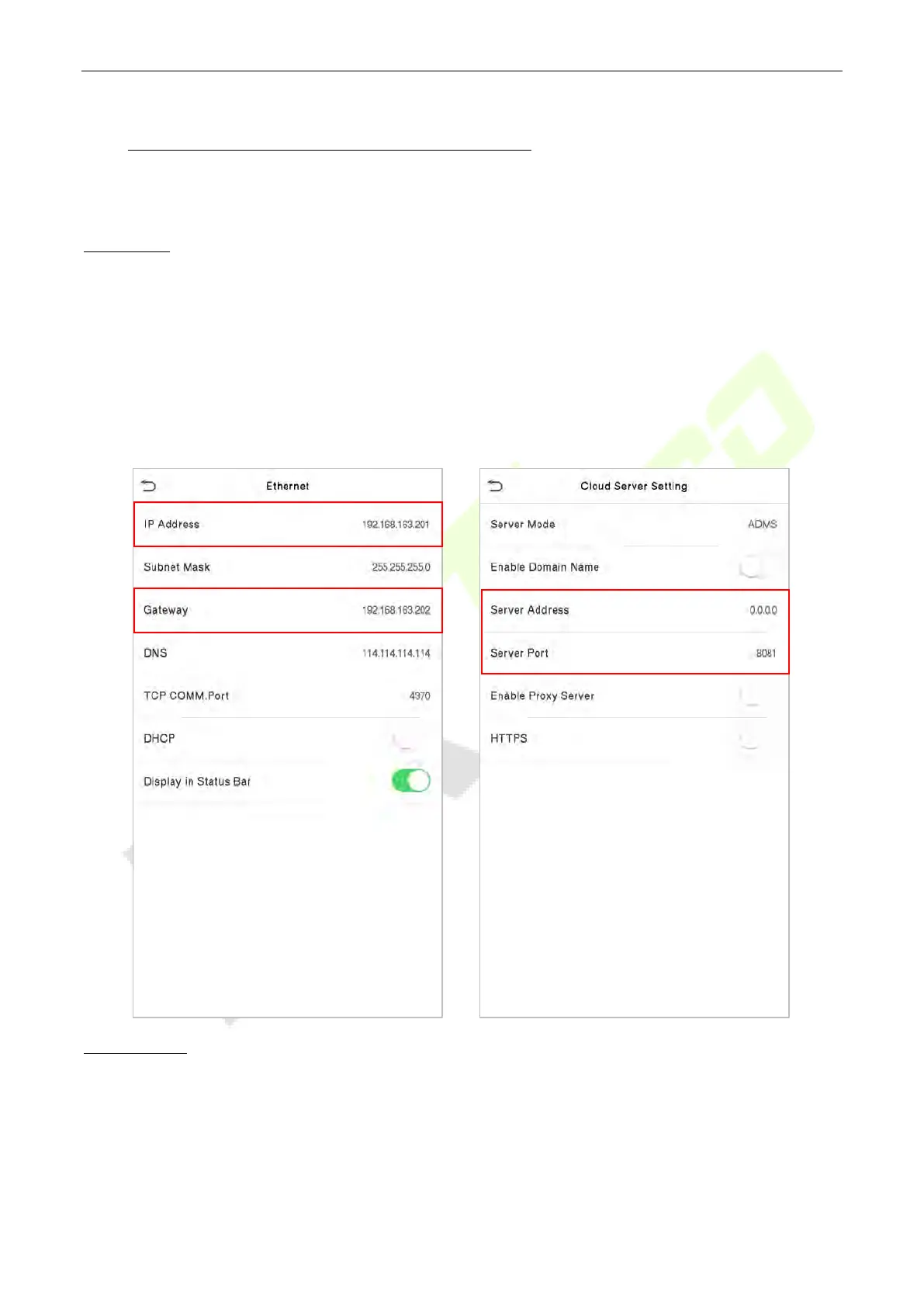

1. Click COMM.> Ethernet in the main menu to set the IP address and Gateway of the device. (Note:
The IP address should be able to communicate with the ZKBioAccess server, preferably in the same
network segment with the server address.)
2. In the main menu, click COMM. >Cloud Server Setting to set the Server address and Server port.
Server address: Set as the IP address of ZKBioAcess server.
Server port: Set as the service port of ZKBioAccess (The default is 8088).
Software side
Login to ZKBioAccess software, click System>Communication>Communication Monitor to set the
ADMS Service Port, as shown in the figure below:
To Next Page
