Warning
Make sure that the mounting surface for the door 2N IP Vario
®
communicator is perfectly flat. Avoid mechanical overload upon the
bottom part of the cover. An incorrect installation on an uneven surface
may lead to cover deformation and thus product malfunctions.

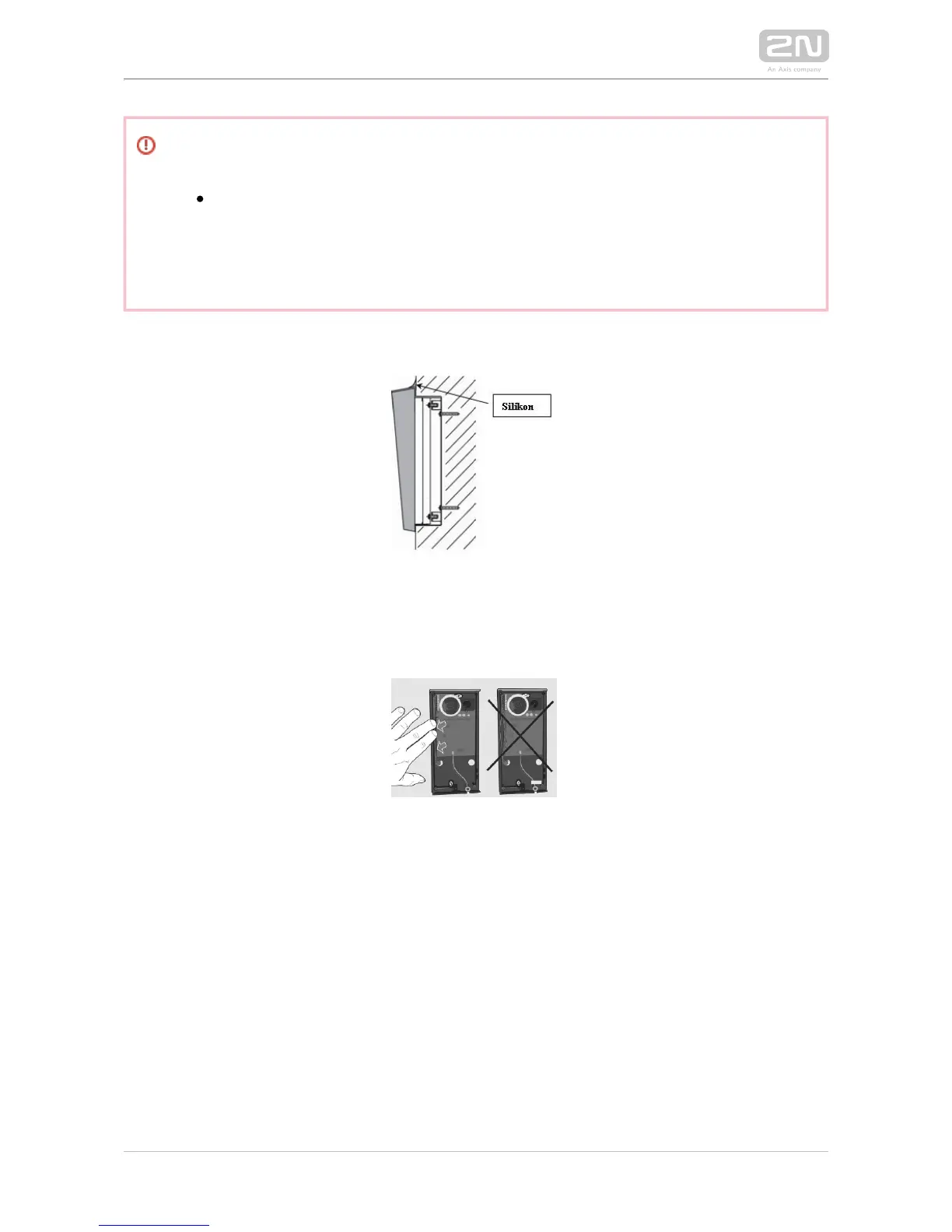

8. While installing a roof module, paste its top and side edges to the wall using silicone
glue to prevent water from flowing into the box along or around the cables.
9. Connect the cables as described in subsection 2.4, Mounting – Electrical Installation.
Make sure that the cables are not squeezed while installing the plastic cover. For the
correct cable installation.
10.Remove the protective foil from the display (for display-equipped 2N IP Vario
®
versions only).
11. Make sure that the cables are placed properly inside and that none of them
obstructs a perfect cover closure.
12. Make sure that the three loudspeaker holder feet fit into the board holes. Keep the
required loudspeaker position to make the seal work properly.
13.Having mounted the unit on the wall and connected all cables, replace the plastic
cover using cross-recessed screws.
