3D Systems DMP Flex 350 Original Instructions

3D Systems, Inc.
8
p/n: 15-D99, rev. C

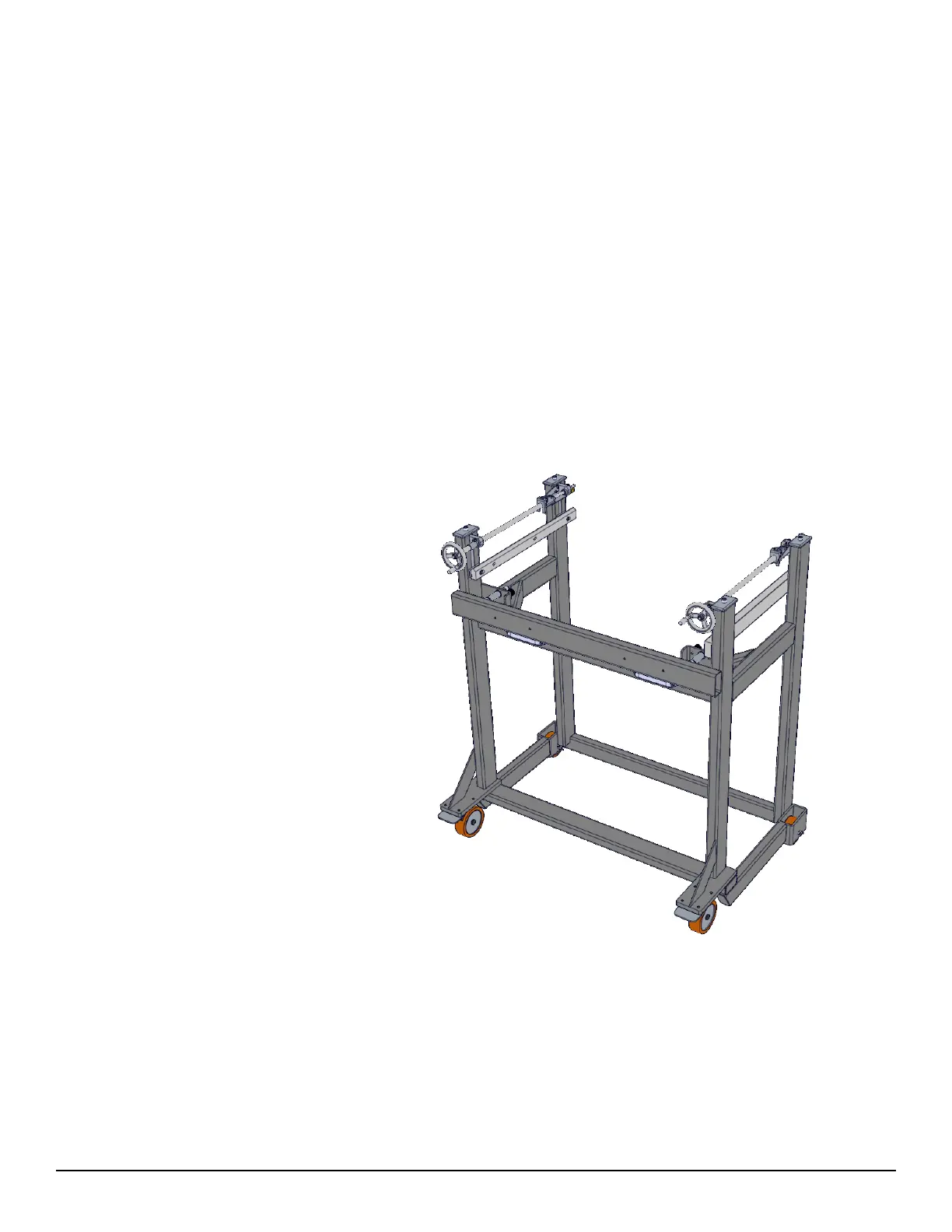

3.6 RPM Cart
Supplied by: 3D Systems
Installed by: 3D Systems
The RPM (Removable Printer Module) cart is used to remove the RPM out of the printer or store a DMP Flex 350 print module, in
case of multiple print modules. This module cannot be used to transport any other types of loads.
A. Physical dimensions
• Weight: 160 kg (352.7 lbs)
• Dimensions (W x D x H): 1460 x 1080 x 1530 mm (57.5 x 42.52 x 60.23 in.)
B. Electrical
C. Mechanical connection
The RPM cart is secured to the printer process chamber through a threaded shaft that locks the RPM cart to the process
chamber before the RPM can be removed.
D. Argon gas - N/A
E. Compressed air - N/A
F. Cooling water - N/A
G. Network connection - N/A
