ProJet
®
x60 Series U
ser Guide
Additional Op
erations
3dscentral.
3dsystems.co
m
34
All Rights Reserved
5/12/13
6.

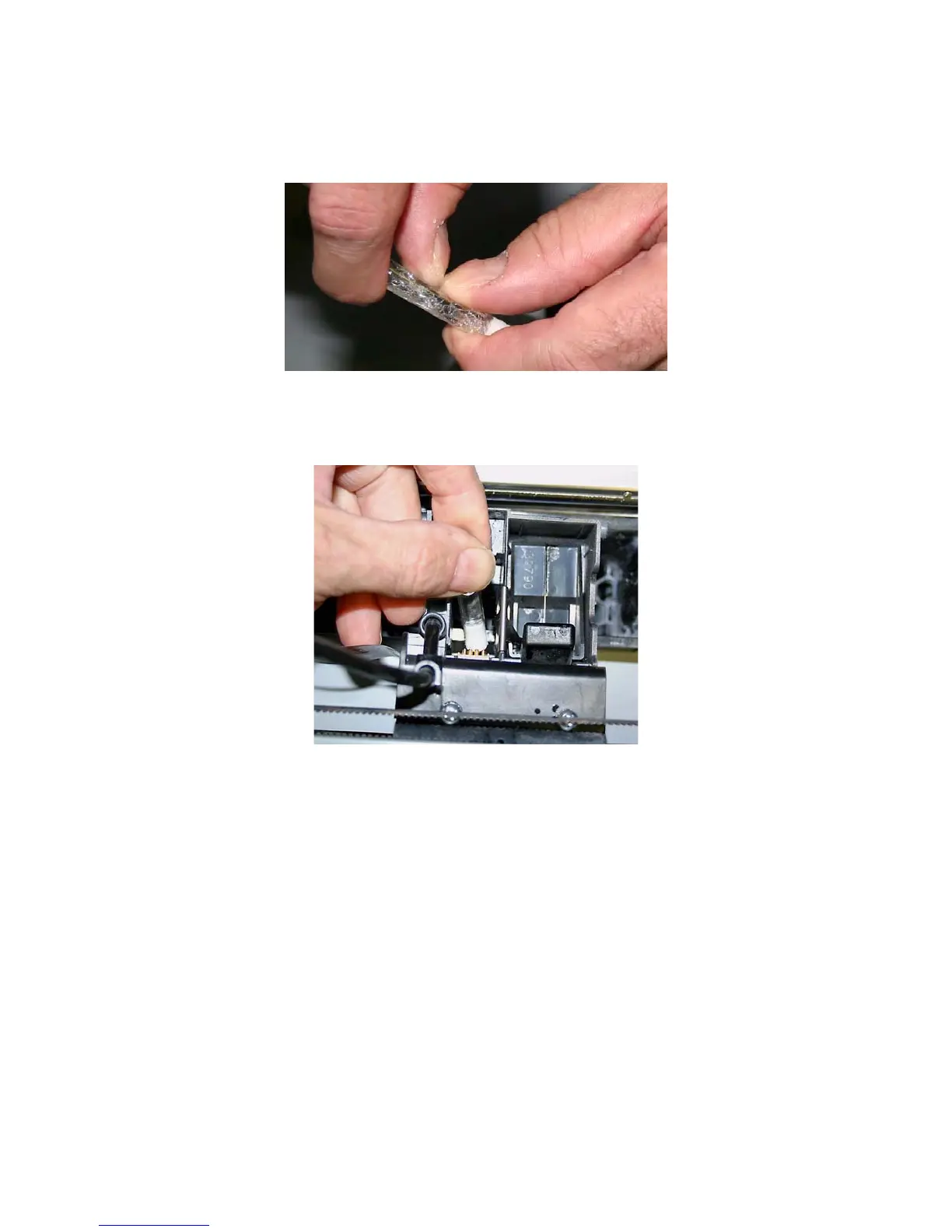

Get an alcohol crush-tube swab. Snap it to break
the g
lass inside, and squeeze the tube to saturate
the swab
.
7.
Wipe off all the pogo
pins for (both) printhead(s)
(inside the carr
iage) with the alcohol swab. Use addi-
tional swabs if needed.
39
41
Table of Contents
Default Chapter
1
User Guide
1
Table of Contents
4
1 Projet X60 Series Overview
7
Key Features
7
Specifications
8
Computer/System Requirements
10
Software
10
Recommended System
10
How the 3D Printing System Works
10
Important Terms
11
Projet X60 Components
13
System Exterior
13
Printer Interior
14
Projet X60 Series Rear View
16
Projet X60 Series Rear View - Connections
17
Service Station
18
Carriage and Print Head
19
Pogo Pins and Septum
20
Control Knob Operations
20
LCD Menu Overview - Projet 160
21
LCD Menu Overview - Projet 260C
21
LCD Menu Overview - Projet 360
21
LCD Menu Overview - Projet 460Plus
22
Where to Go for more Information
22
Contact 3D Systems
22
2 Setup and Print the Build
23
Install 3Dprint
23
Open a Part in 3D Print
23
3Dprint Main Window
23
Part Orientation, Strength, and Printing Speed
23
Check the Default Settings
24
Printer Settings
24
Check the Build Settings
24
Prepare the Build Area
24
Print the Build
25
Dry the Part
26
Clean the Part
26
Coarse Cleaning
26
Fine Cleaning
26
Using the Removable Build Plate
27
Next Step: Cleaning the Printer
28
3 Routine Cleaning
29
Vacuum Excess Core Material
29
Empty the Debris Separator
30
Clean the Fast Axis Rails and Carriage
31
Clean the Service Station
32
Example - Dirty Service Station
32
Example - Clean Service Station
33
Cleaning Procedure
33
4 Post-Processing
35
Post-Processing Using Water Cure
35
Post-Processing with Colorbond
35
5 Additional Operations
36
The Printer Status Report
36
The Printer Status Dialog
36
Ready to Print
37
Not Ready to Print
38
Change Print Head
39
Add Binder
43
Add Core Material
44
Add Cleaning Solution
45
Replace the Waste Tray
45
Position Build Piston
46
Cover
46
6 Printer Maintenance
47
The Maintenance Dialog
47
Fast Axis Bearing Lubrication
47
Piston Screw Lubrication
48
Slow Axis Bearing Lubrication
50
Clean the Spreader Roller
51
Upgrading the Firmware
52
Printer Storage Preparation
52
7 Troubleshooting the Projet X60 Printers
53
Try this First
54
Problems Powering up
55
Print Head Errors/Weak Parts
56
Try this First
56
Troubleshoot Print Head/Weak Parts
57
Motion Errors/Fast Axis
58
Troubleshoot Fast Axis
59
Motion Errors/Slow Axis
60
Troubleshoot Slow Axis
61
Network Errors/Cannot Connect to Printer
62
Network Errors/Packet Timeout
63
Part Quality Issues Streaky/Striped Parts, Delamination, Weak Parts
64
Part Quality Issues Bad Surface Finish
65
Bad Horizontal Surface Finish
65
Bad Vertical Surface Finish
65
Miscellaneous Problems
66
Vacuum Has Low/No Suction
66
Binder Cartridge Is Full but 3Dprint Indicates Empty
67
Error Codes and Messages Background Details
68
Additional Information
69
Materials
69
Service
69
Calling for Service
70
Contact 3D Systems
70
5
Based on 1 rating
