8

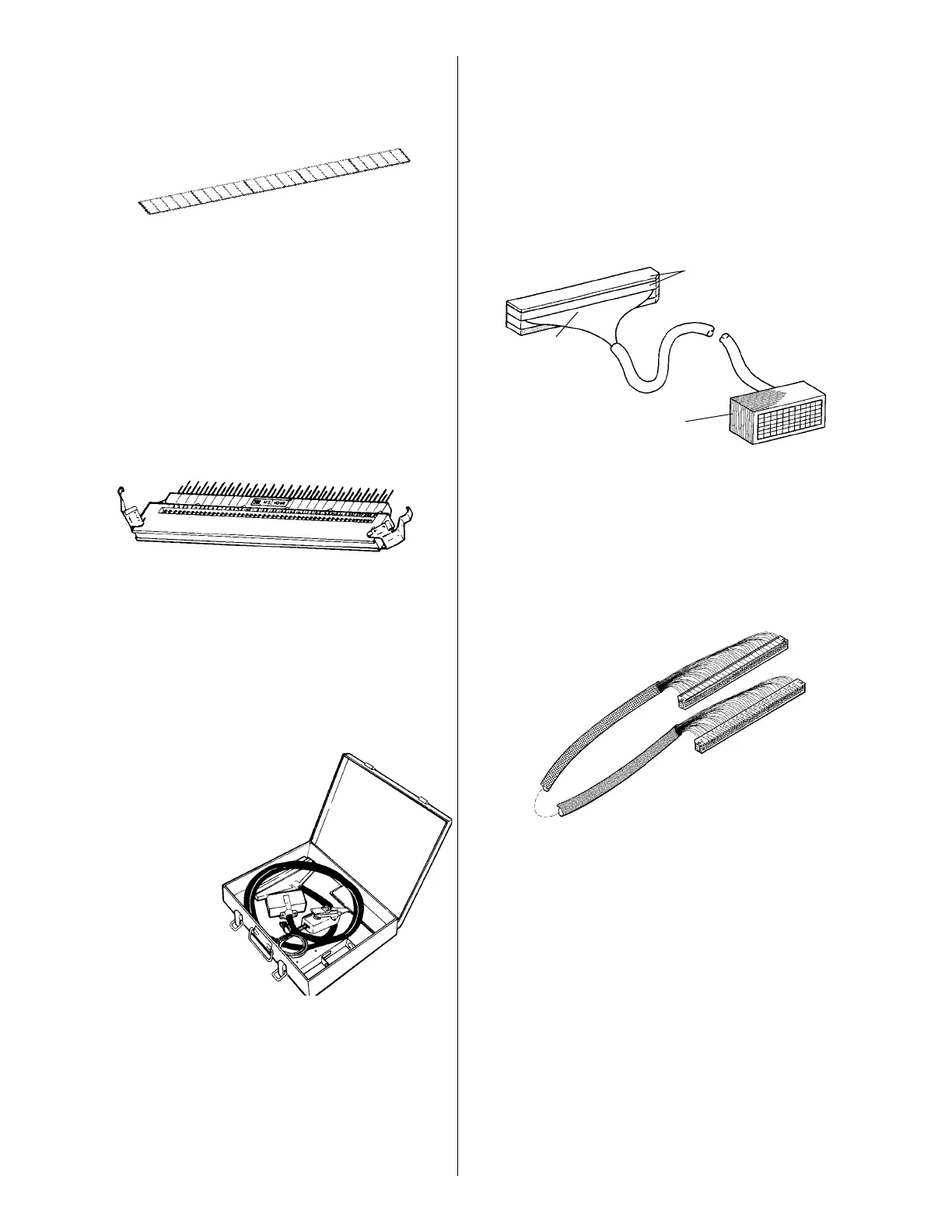

4.8 4079-S Super-Mini Tagging Labels
Permits easy and accurate recording of pair
counts during tagging operations.
76607
4.9 4048-S 25-Pair Pocket Probe
Designed to interface with Super-Mini and
Super-Mate Modules, the probe provides access
for identification of cable pairs.
4.10 4048-SA1 Kit Super-Mini 25-Pair Probe
Assembly
Provided with Cinch
Jones male plugs, the
probe assembly is spe-
cially designed for
accurate conti-
nuity testing
and tagging of
all Super-Mini
and Super-Mate
Modules.
781276
832640
4.11 4048-DPM CJ Super-Mate Module Probe
Used to transition between test equipment and
modular spliced conductors.
Field fabrication of the probe body is possible,
but it should be done only in the configuration
shown below:
Note: Stranded conductors must not be used in
MS
2
modules.
2 Super-Mates
(Probe Body)
CJ Plug
(female)
22 AWG
843060
4.12 4005-DPM /BTP (Bottom Test Plug)
Test plug assembly consisting of 4005-DPM
module attached by a 24" jumper to a module
designed to plug into the bottom of a Super-
Mate Module.
873540
4.13 4026 Module Maintenance Kit
Contains the tools necessary for reentry of
Super-Mini and Super-Mate Modules.
Kit Contents:
• 4270-A Hand Presser
• 4051 Wire Insertion and Cut Off Tool
• 4053-PM Separator Tool
• 4053 Cover Removal Tool
• 4047 Pair Test Plug
• DPM/DPM Jumper Assembly (2)
• 4005-DPM/BTP Bottom Test Plug
• Jumper Assembly (2)
To Next Page
