Stormscope
Series II Weather Mapping Systems
WX-PA Instruction Manual
n
ANTENNA 9
ANTENNA
(Removed)
WX-PA ANTENNA
(Not Used)
OPTIONAL AIRFRAME GROUND
c====JSYSTEM UNDER TEST
TO DISPLAY
WX-PA ANTENNA CABLE
~DDDDDDDD '"
00000000
00000000
(j) 00000000
o 0 0 0 0 0
$ '"

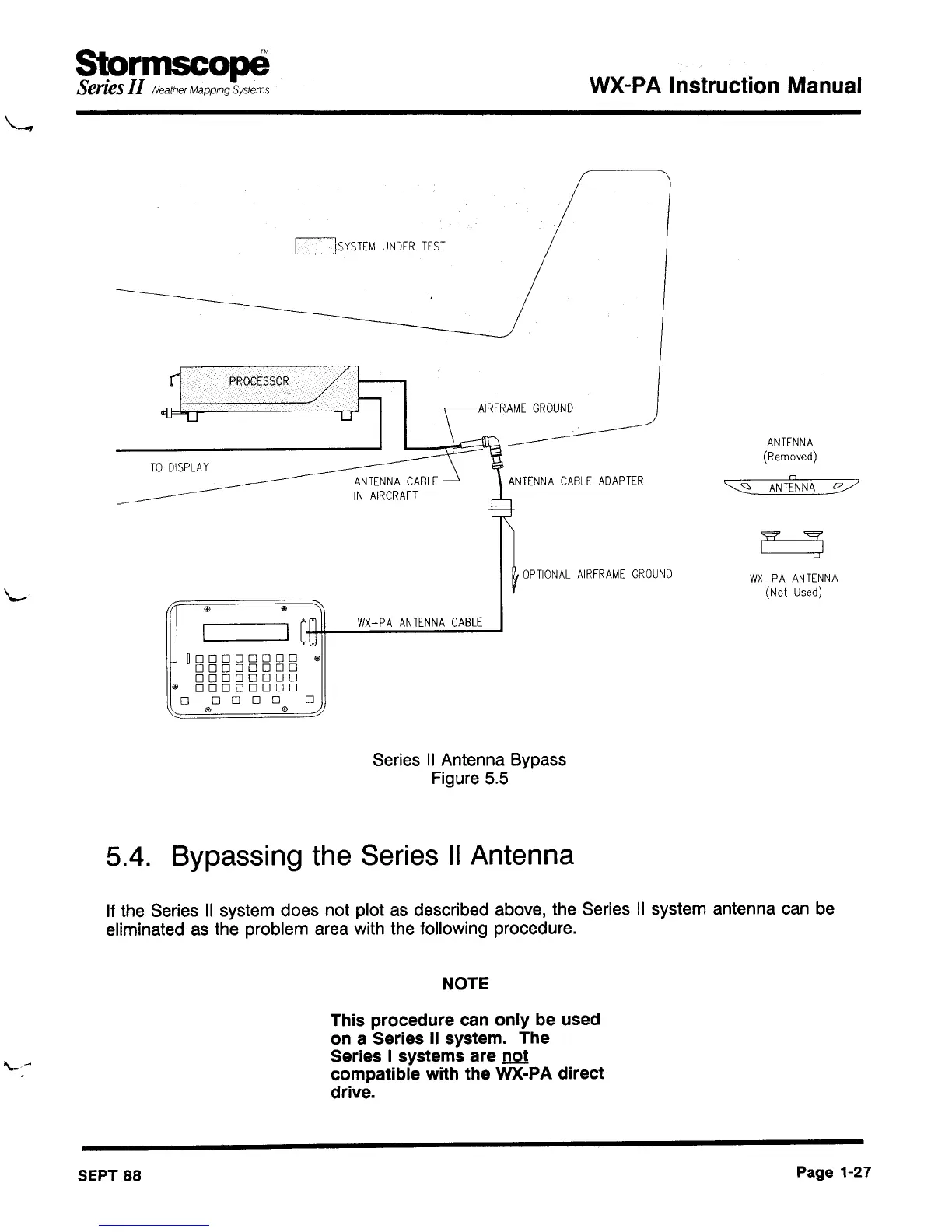

Series II Antenna Bypass
Figure 5.5
5.4. Bypassing the Series II Antenna
If the Series II system does not plot as described above, the Series II system antenna can be
eliminated as the problem area with the following procedure.
NOTE
This procedure can only be used
on a Series II system. The
Series I systems are
not
compatible with the WX-PA direct
drive.
SEPT 88
Page 1-27
