Series II Weather Mapping Systems

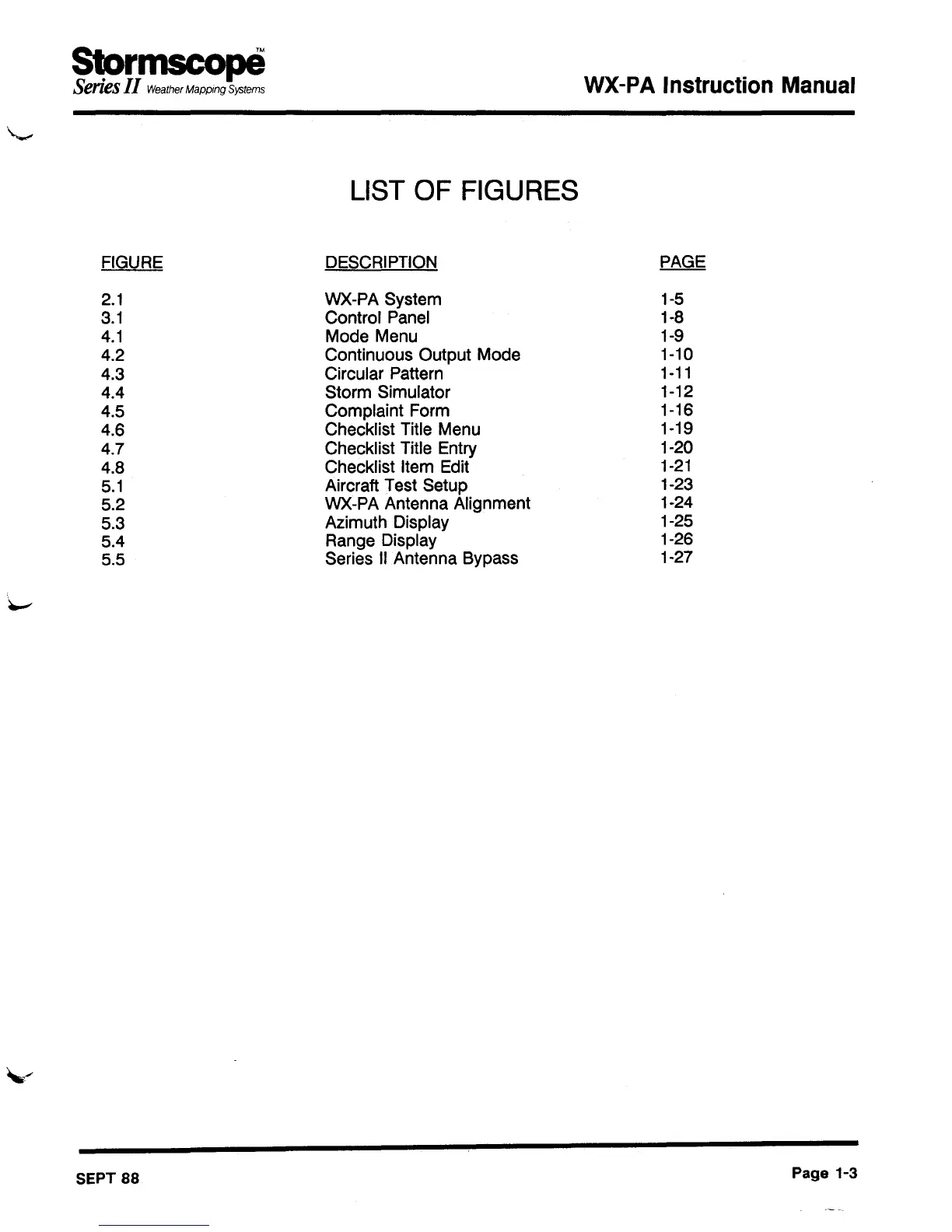

LIST OF FIGURES
WX-PA Instruction Manual
FIGURE
DESCRIPTION
PAGE
2.1
WX-PA System
1-5
3.1
Control Panel
1-8
4.1
Mode Menu
1-9
4.2
Continuous Output Mode
1-10
4.3
Circular Pattern
1-11
4.4
Storm Simulator
1-12
4.5
Complaint Form
1-16
4.6
Checklist Title Menu
1-19
4.7
Checklist Title Entry
1-20
4.8
Checklist Item Edit
1-21
5.1
Aircraft Test Setup
1-23
5.2
WX-PA Antenna Alignment
1-24
5.3
Azimuth Display
1-25
5.4
Range Display
1-26
5.5
Series II Antenna Bypass
1-27
.~
SEPT 88
Page 1-3
