Installing MX-ONE
1/BYB 501 180 Cabinet Frame
Pos. Title/Function Product Number Quantity
EARTHING PLATE SXA 123 0760/1
4
SCREW M 4X8 24/SBF 228 040/0080
8
PUSH-BUTTON SKY 117 01/4
2
SCREW 3.5X9.5 SBF 131 279/24
2
ESD WRISTSTRAP LYB 250 01/141
1
LABEL SVB 129 16
1
MARKING LABEL 2/SVF 191 040/2
1
MARKING PLATE2 SVF 191 131/1
1
4.2.4 Positioning the Cabinet
1. Make sure that holes for tip protection or earthquake bracing frame have
been drilled.
If not use the rack and the tip protection or the earthquake bracing frame as
a template.
2. Position the cabinet in line with other cabinets and the site walls, see the
environmental spec for MX-ONE SITE PLANNING.
4.2.5 Leveling the Cabinet

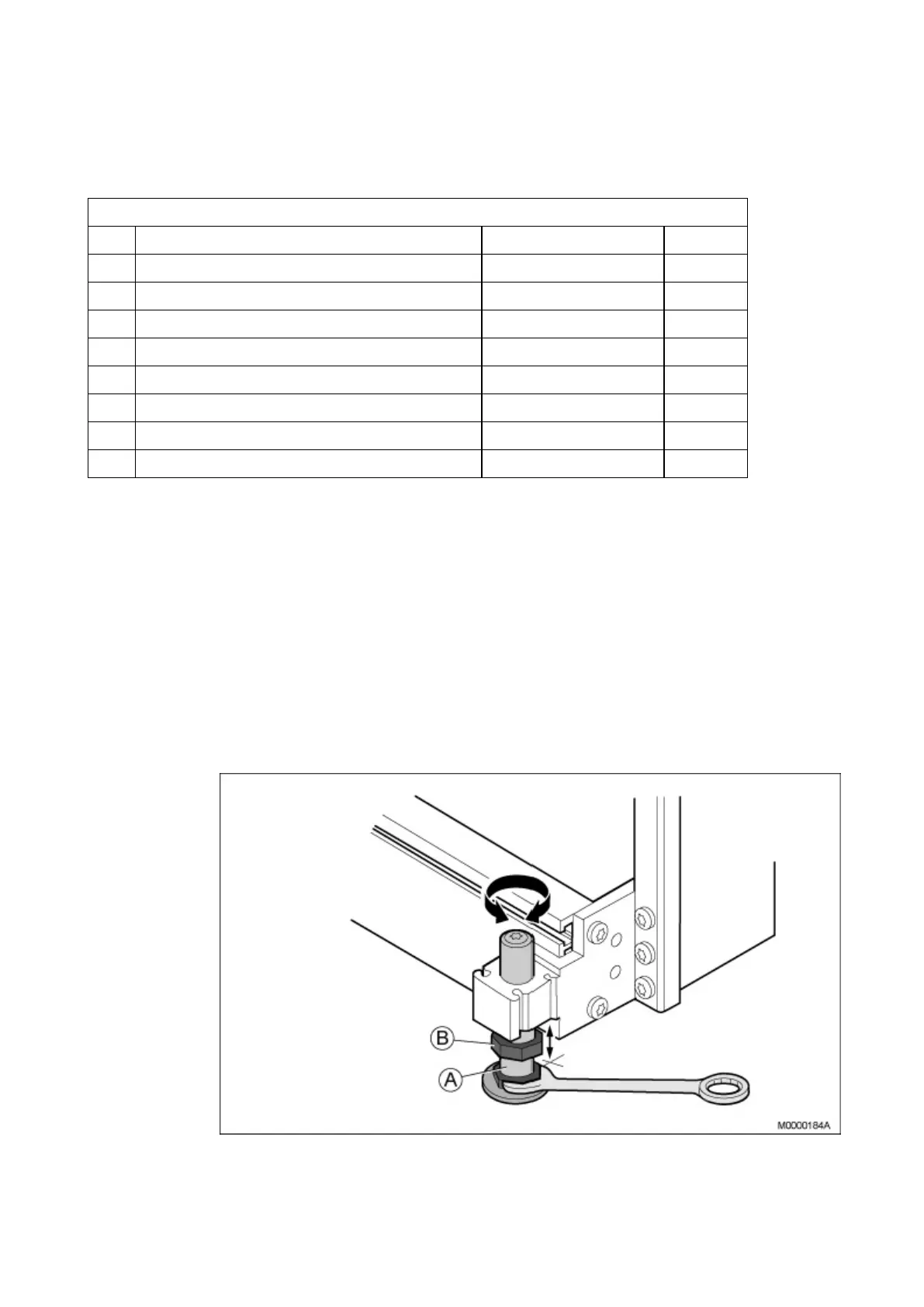

Figure 15 Leveling the Cabinet
28
6/1531-ASP 113 01 Uen J2 2008-07-17
